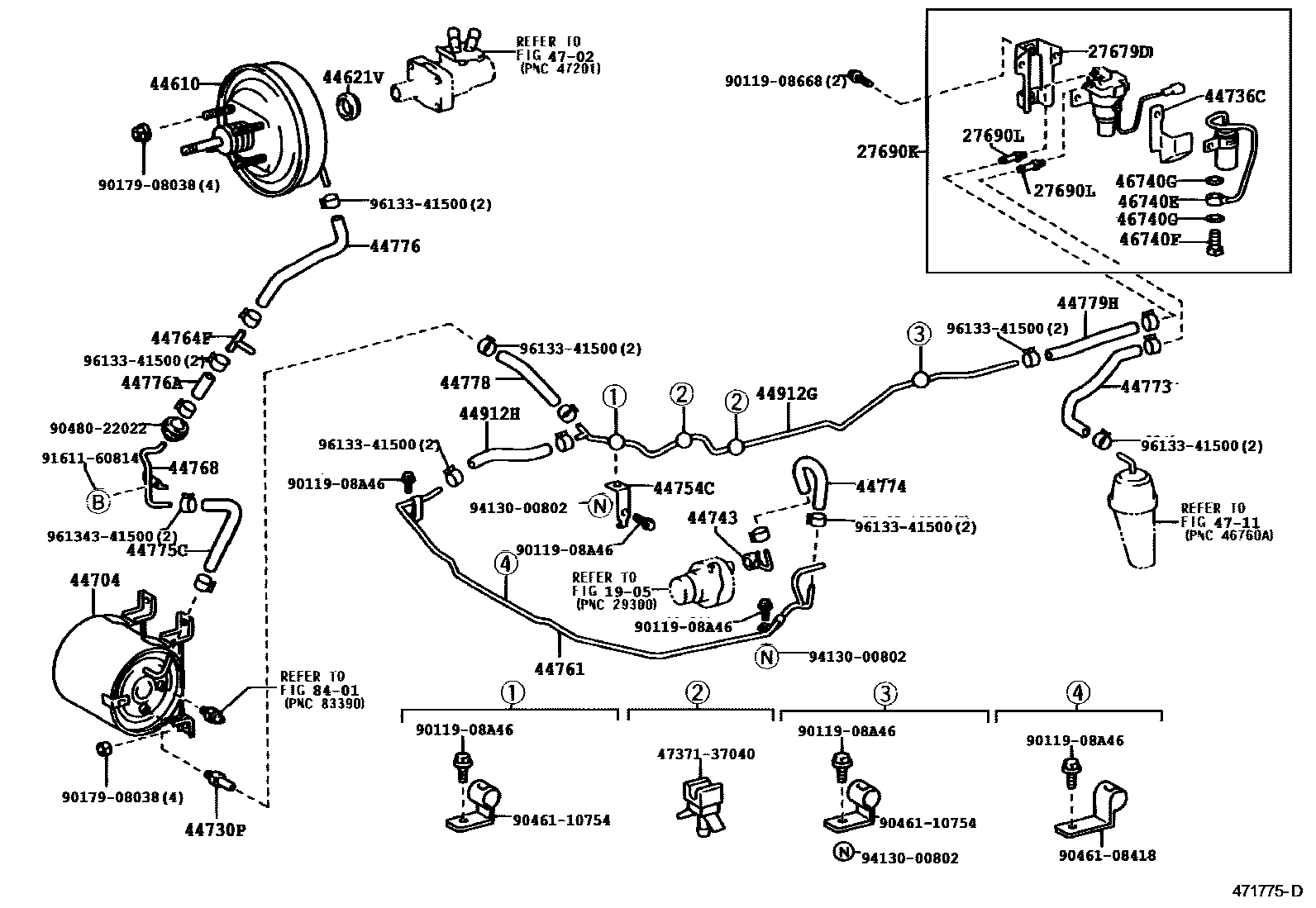

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1��(ABS) 0003 1 0004 1��(ABS) 0005 1 0006 1

1905

27679DBRACKET, EXHAUST BRAKE SOLENOID

main27679-56030iN04C..XZU28#200406-200610

main27679-78210iN04C..XKU280200610

27690KSOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)

main27690-58050i4B..BU28#199908-200406

main27690-78150iN04C..XKU280200610

27690LUNION(FOR EXHAUST RETARDER SOLENOID)

main90404-51319×2i4B..BU28#199908-200406

44610BOOSTER ASSY, BRAKE

main44610-37190iBU28#,XZU28#..DCR,DSL199908-200610

main44610-37200iBU280,RZU280,XZU281..LPG200001-200610

main44610-37210iBU280,RZU280,XZU280199908-200610

main44610-37240iLY228,270200108-200407

44621VSEAL, BOOSTER BODY

main44621-36050iBU28#,RZU280,XZU28#199908-200610

main44621-36070iBU280,RZU280,XZU280199908-200610

main44621-37240iLY228,270200108-200407

44704RESERVOIR SUB-ASSY, VACUUM

main44704-37120iLY228,270200108-200407

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-20100iRZU280,XZU281..N..LPG200306-200610

main44730-60040iXKU280200610

44736CBRACKET, AIR CLEANER

main44736-37030iBU28#..DSL199908-200406

44743UNION(FOR VACUUM PUMP)

main90405-09164iBU28#..DSL199908-200405

main90405-09183iLY228,270200108-200407

main90405-09184iLY228,270200108-200407

44754CBRACKET, VACUUM TUBE, NO.1

main44754-25010iLY228,270200108-200407

main44754-37040iBU280..LPG199908-200306

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-37190iBU28#..DSL199908-200406

main44761-37200iRZU280,XZU281..N..LPG200001-200610

44764FWAY(FOR BOOSTER VACUUM TUBE)

main90413-09038iBU280..LPG200001-200306

44768TUBE, BOOSTER VACUUM

main44768-37130iBU280..LPG200001-200306

44773HOSE, VACUUM, NO.2

main44773-37190iBU28#..DSL199908-200406

main44773-37340iXKU280200610

44774HOSE, UNION TO CONNECTOR TUBE

main44774-37180iBU28#..DSL199908-200406

main44774-37190iRZU280,XZU281..N..LPG200001-200610

main44774-37270iXZU28#..DCR200406-200610

44775CHOSE, CONNECTOR TO WAY

main44775-36030iBU280..LPG200001-200306

main44775-36100iXKU280200703

44776HOSE, BRAKE BOOSTER

main44776-37130iBU280..LPG200001-200306

main44776-37140iRZU280,XZU28#..N200306-200610

main44776-37220iLY228..ATM200108-200407

main44776-37320iXKU280200610

44776AHOSE, VACUUM RESERVOIR TO BRAKE BOOSTER

main90445-17044iRZU280..D;BU28#..DSL199908-200405

44778HOSE, CONNECTOR TO CHECK VALVE

main44778-37140iBU280..LPG199908-200306

44779HHOSE, CONNECTOR TUBE TO SOLENOID, NO.2

main44779-37170iXZU28#..DCR200406-200610

44912GTUBE, 3 WAY TO MAGNETIC VALVE

main44912-25070iLY228,270200108-200308

main44912-25120iLY228,270200308-200407

main44912-37600iBU28#..DSL199908-200406

main44912-37C30iXKU280200610

44912HHOSE(FOR 3 WAY TO MAGUNETIC VALVE TUBE)

main95446-09230iXZU28#..DCR200406-200610

46740ECLEANER ASSY, EXHAUST RETARDER

main46740-36080iBU28#..DSL199908-200406

46740FBOLT, UNION(FOR EXHAUST BRAKE CLEANER ASSY)

main90401-12097iBU28#..DSL199908-200406

46740GGASKET(FOR EXHAUST BRAKE CLEANER)

main90430-12247×2iBU28#..DSL199908-200406

4702

4711

8401

4737137040BRACKET, CONNECTOR

main47371-37040

9011908668

main90119-08668

9011908A46

main90119-08A46

9017908038

main90179-08038

9046108418

main90461-08418

9046110754

main90461-10754

9048022022

main90480-22022

9161160814

main91611-60814

9413000802

main94130-00802

9613341500

main96133-41500

39 parts on this diagram · 6 diagrams in section
