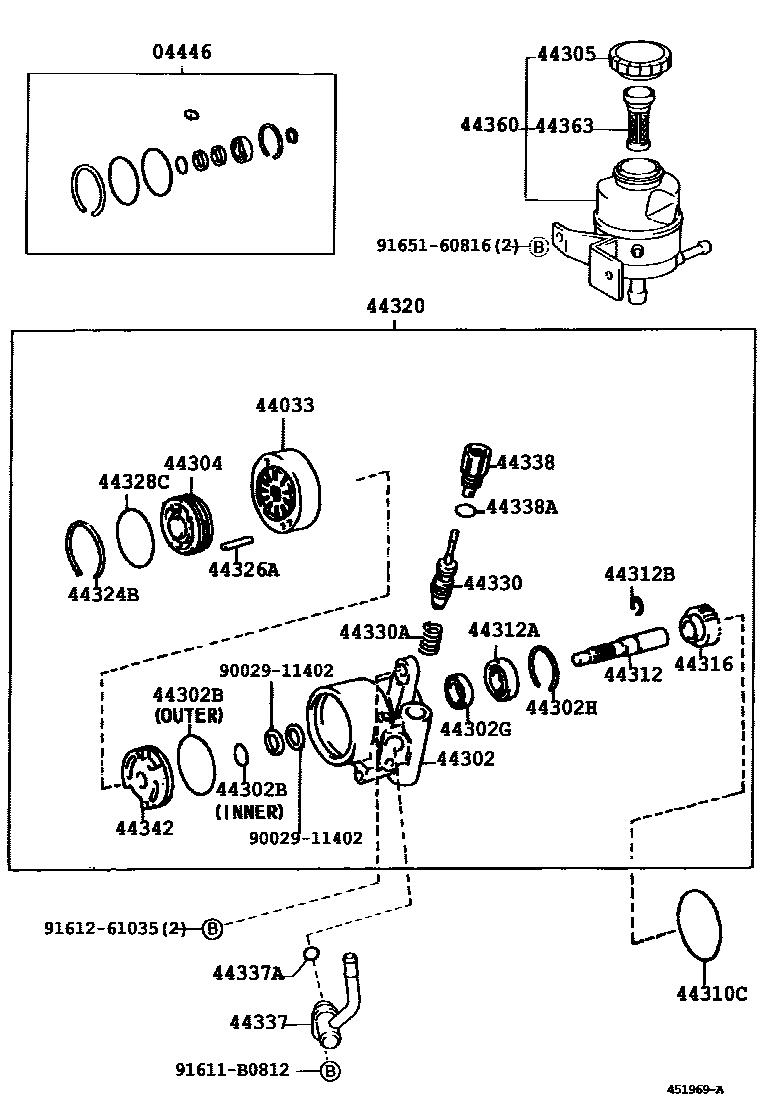

VANE PUMP & RESERVOIR (POWER STEERING)
44302HOUSING SUB-ASSY, VANE PUMP, FRONT
44302BRING, O, NO.1(FOR VANE PUMP HOUSING)
44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
44302HRING, SNAP, NO.1(FOR VANE PUMP HOUSING)
44304HOUSING SUB-ASSY, VANE PUMP, REAR
44310CRING, O(FOR VANE PUMP)
44312ABEARING(FOR VANE PUMP SHAFT)
44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)
44316GEAR, VANE PUMP
44320PUMP ASSY, VANE
44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)
44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)
44328CRING, O(FOR PUMP HOUSING END)
44330VALVE ASSY, FLOW CONTROL
44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
44337UNION, POWER STEERING SUCTION PORT
44337ARING, O(FOR POWER STEERING SUCTION PORT)
44338UNION, PRESSURE PORT
44338ARING, O(FOR PRESSURE PORT UNION)
44342PLATE, VANE PUMP SIDE, REAR
44360RESERVOIR ASSY, VANE PUMP OIL
44363STRAINER, OIL(FOR VANE PUMP)
9002911402
main90029-11402
91611B0812
main91611-B0812
9161261035
main91612-61035
9165160816
main91651-60816
30 parts on this diagram · 5 diagrams in section
