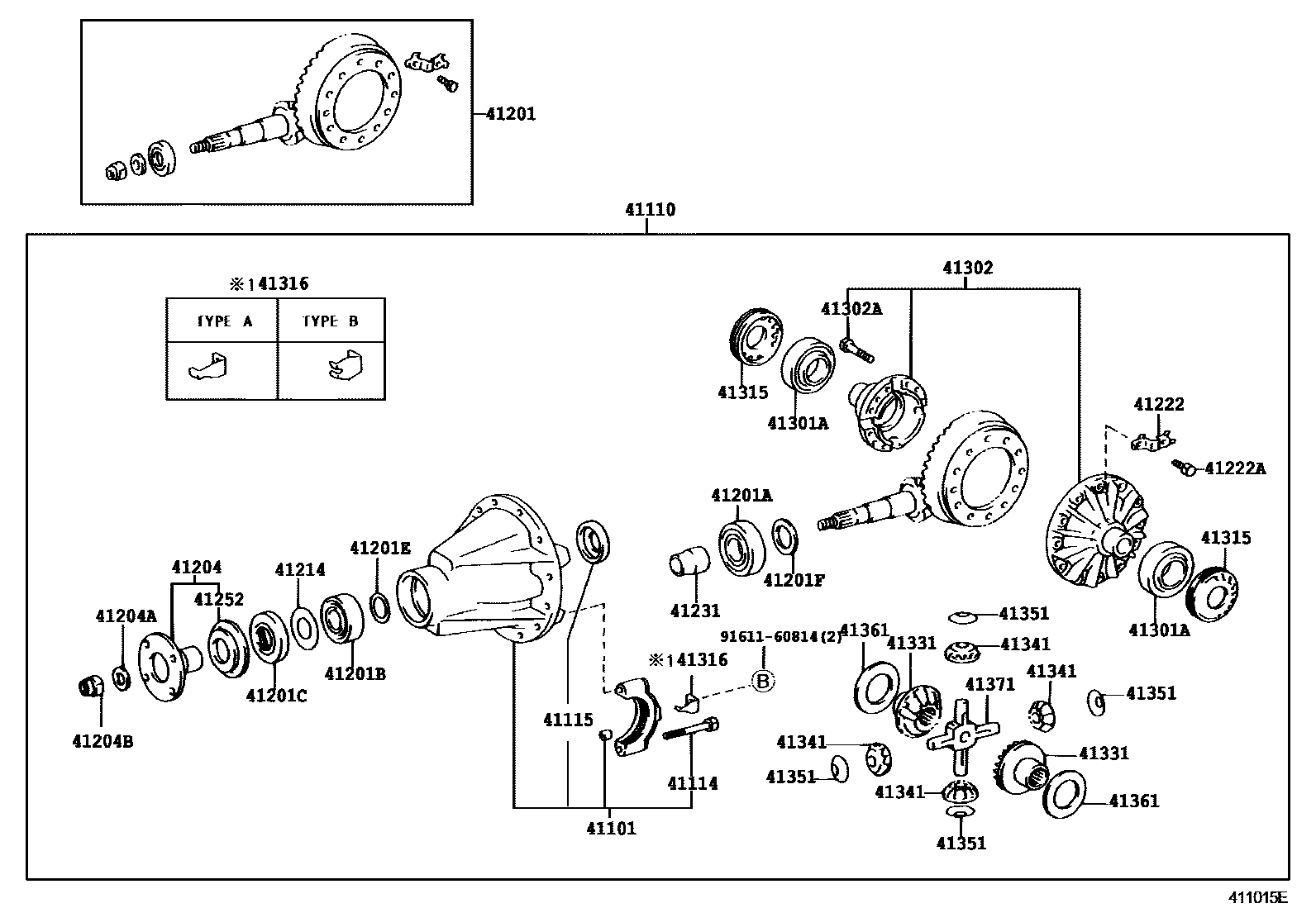

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0004 1

41101CARRIER SUB-ASSY, DIFFERENTIAL, REAR

main41101-0C020iXKU280200708

main41101-37010iBU28#,LY228,270,RZU280,XZU28#199908-200708

41110CARRIER ASSY, DIFFERENTIAL, REAR

main41110-25330iLY228,270..MTM200108-200407

sub41110-25331

main41110-37080iLY228..ATM200108-200407

sub41110-37081

main41110-37100iBU28#,XZU28#..DCR,DSL199908-200610

sub41110-37101

main41110-37110iBU280,RZU280,XZU281..LPG200001-200610

sub41110-37111

main41110-37290iXKU280200610-200708

sub41110-37291

main41110-37500iXKU280200708-201109

41114BOLT, REAR DIFFERENTIAL BEARING CAP

main90105-16022iBU28#,LY228,270,RZU280,XZU28#199908-200610

41115RING, DIFFERENTIAL OIL STORAGE

main41115-0C010iXKU280200708

main41115-37010iRZU280..D;BU28#..DSL200108-200708

41201FINAL GEAR KIT, DIFFERENTIAL, REAR

main41201-09A20iXKU280200708

main41201-80146iBU280,RZU280..LPG200001-200406

sub41201-80620

main41201-80149iLY228..ATM200108-200407

sub41201-80590

main41201-80151iBU28#..DSL199908-200406

sub41201-80611

sub41204-37090

sub41204-37100

main41201-80165iLY228,270..MTM200108-200407

sub41201-80580

main41201-80369iRZU280,XZU281..LPG200406-200610

sub41201-80620

main41201-80478iXZU28#..DCR200406-200610

sub41201-80611

sub41204-37090

main41201-80491iXKU280200610-200708

sub41201-80581

sub41204-37100

41201ABEARING (FOR REAR DRIVE PINION REAR)

main90366-40100iXKU280199908-200708

main90366-A0017iXKU280200708

41201BBEARING (FOR REAR DRIVE PINION FRONT)

main90366-35108iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90366-A0023iXKU280200708

41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)

main90311-48019iBU28#,LY228,270,RZU280199908-200404

sub90311-48024

main90311-48024iXKU280200404-200708

main90311-A0008iXKU280200708

41201ESHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST)

main90564-35019iBU280..LPG199908-200708

main90564-35020iBU280..LPG199908-200708

main90564-35021iBU280..LPG199908-200708

main90564-35022iBU280..LPG199908-200708

main90564-35023iBU28#..DSL199908-200708

main90564-35024iBU280..LPG199908-200708

main90564-35025iBU280..LPG199908-200708

main90564-35026iXKU280199908-200708

main90564-35027iXKU280199908-200708

main90564-35028iRZU280,XZU281;BU28#,LY228,270,XZU280..DCR,DSL199908-200708

main90564-35029iBU28#..DSL199908-200708

main90564-35030iXKU280199908-200708

main90564-35031iRZU280,XZU281;BU28#,LY228,270,XZU280..DCR,DSL199908-200708

main90564-35032iBU28#..DSL199908-200708

main90564-35033iXKU280199908-200708

main90564-35034iXKU280199908-200708

main90564-35035iBU280..LPG199908-200708

main90564-35036iBU280..LPG199908-200708

main90564-35037iXKU280199908-200708

main90564-35038iBU28#..DSL199908-200708

main90564-35039iBU28#..DSL199908-200708

main90564-35040iRZU280,XZU281;BU28#,LY228,270,XZU280..DCR,DSL199908-200708

main90564-A0034iXKU280200708

main90564-A0035iXKU280200708

main90564-A0036iXKU280200708

main90564-A0037iXKU280200708

main90564-A0038iXKU280200708

main90564-A0039iXKU280200708

main90564-A0040iXKU280200708

main90564-A0041iXKU280200708

main90564-A0042iXKU280200708

main90564-A0043iXKU280200708

41201FSHIM (FOR REAR DIFF DRIVE PINION SPACER REAR ADJUST)

main90564-40004iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-40006iXKU280199908-200708

main90564-40007iXKU280199908-200708

main90564-40008iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-40009iXKU280199908-200708

main90564-40010iXKU280199908-200708

main90564-40011iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-40012iXKU280199908-200708

main90564-40013iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-40014iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-40015iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-40016iXKU280199908-200708

main90564-40017iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-40018iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-40019iXKU280199908-200708

main90564-40020iXKU280199908-200708

main90564-40021iXKU280199908-200708

main90564-40022iXKU280199908-200708

main90564-40023iXKU280199908-200708

main90564-40024iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-40025iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90564-A0001iXKU280200708

main90564-A0002iXKU280200708

main90564-A0003iXKU280200708

main90564-A0004iXKU280200708

main90564-A0005iXKU280200708

main90564-A0006iXKU280200708

main90564-A0007iXKU280200708

main90564-A0008iXKU280200708

main90564-A0009iXKU280200708

main90564-A0010iXKU280200708

main90564-A0011iXKU280200708

main90564-A0012iXKU280200708

main90564-A0013iXKU280200708

main90564-A0014iXKU280200708

main90564-A0015iXKU280200708

main90564-A0016iXKU280200708

main90564-A0017iXKU280200708

main90564-A0018iXKU280200708

main90564-A0019iXKU280200708

main90564-A0020iXKU280200708

main90564-A0021iXKU280200708

41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR

main41204-37010iBU28#,LY228,270,RZU280,XZU28#199908-200610

main41204-37040iXKU280200610-200708

main41204-37070iXKU280200708

41204AWASHER, PLATE (FOR REAR DRIVE PINION)

main90201-23002iBU28#,LY228,270,RZU280,XZU28#199908-200708

41204BNUT (FOR REAR DRIVE PINION)

main90179-22003iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90179-22029iXKU280200708

41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL

main41214-0C020iXKU280200708

main41214-37010iXKU280199908-200708

41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-36020iBU28#,LY228,270,RZU280,XZU28#199908-200708

41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)

main90101-14315iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90105-14183iXKU280200708

41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING

main41231-34030iXKU280200708

main41231-36040iBU28#,LY228,270,RZU280,XZU28#199908-200708

41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)

main41252-0C020iXKU280200708

main41252-37020iBU28#,LY228,270,RZU280,XZU28#199908-200708

41301ABEARING(FOR REAR DIFFERENTIAL CASE)

main90366-52004iBU28#,LY228,270,RZU280,XZU28#199908-200708

main90366-A0020iXKU280200708

41302CASE SUB-ASSY, REAR DIFFERENTIAL

main41301-36030iBU28#,LY228,270,RZU280,XZU28#199908-200708

41302ABOLT(FOR REAR DIFFERENTIAL CASE)

main90105-12087iBU28#,LY228,270,RZU280,XZU28#199908-200708

41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING

main41315-36011iBU28#,LY228,270,RZU280,XZU28#199908-200708

41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT

main41316-36011iBU28#,LY228,270,RZU280,XZU28#199908-200708

main41317-36011iBU28#,LY228,270,RZU280,XZU28#199908-200708

41331GEAR, REAR DIFFERENTIAL SIDE

main41331-36020iBU28#,LY228,270,RZU280,XZU28#199908-200708

41341PINION, REAR DIFFERENTIAL

main41341-55013iBU28#,LY228,270,RZU280,XZU28#199908-200708

41351WASHER, REAR DIFFERENTIAL PINION THRUST

main41351-34030iXKU280200708

main41351-35011iXKU280199908-200708

41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-0C100iXKU280200708

main41361-0C110iXKU280200708

main41361-0C120iXKU280200708

main41361-0C130iXKU280200708

main41361-0C140iXKU280200708

main41361-0C150iXKU280200708

main41361-0C160iXKU280200708

main41361-0C170iXKU280200708

main41361-0C180iXKU280200708

main41361-60011iBU28#,LY228,270,RZU280,XZU28#199908-200708

main41361-60021iXKU280199908-200708

main41361-60031iBU28#,LY228,270,RZU280,XZU28#199908-200708

main41361-60041iBU28#,LY228,270,RZU280,XZU28#199908-200708

main41361-60480iBU28#,LY228,270,RZU280,XZU28#199908-200708

main41361-60490iBU28#,LY228,270,RZU280,XZU28#199908-200708

main41361-60500iXKU280199908-200708

main41361-60510iXKU280199908-200708

main41361-60520iXKU280199908-200708

main41361-60530iXKU280199908-200708

main41361-60540iBU28#,LY228,270,RZU280,XZU28#199908-200708

main41361-60550iXKU280199908-200708

41371SPIDER, REAR DIFFERENTIAL

main41371-36011iBU28#,LY228,270,RZU280,XZU28#199908-200708

9161160814

main91611-60814

29 parts on this diagram · 4 diagrams in section
