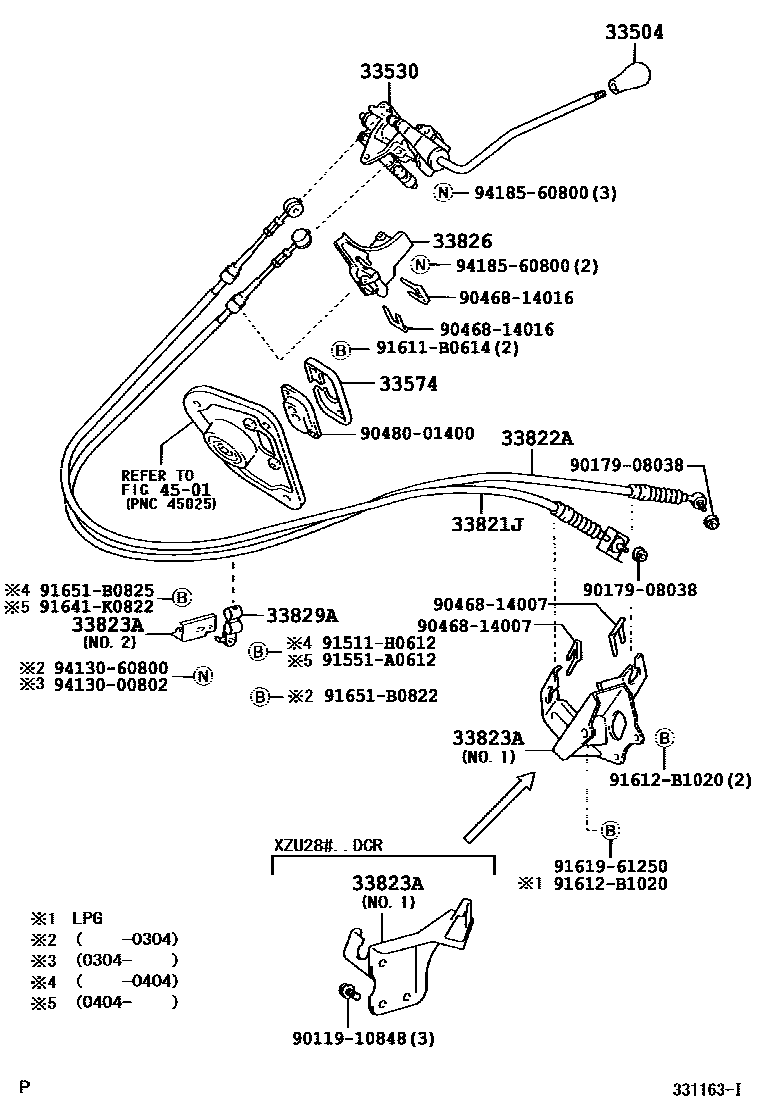

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1 0003 1 0004 1

33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33504-35030-B1iLY228,270..MTM200108-200407

BLUISH GRAY,TRIM1#

sub33504-24010

sub33504-35030

sub33504-60121

main33504-36051-B0iBU28#,RZU280,XZU28#199908-201109

BLUISH GRAY,TRIM1#

sub33504-36051

33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)

main33530-37020iBU28#,LY228,270,RZU280,XZU28#..MTM199908-201109

33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)

main33574-12080iBU280..LPG199908-201109

33821JCABLE, TRANSMISSION CONTROL SHIFT

main33821-37010iBU28#199908-200111

sub33821-37011

main33821-37011iBU28#,RZU280200111-200406

main33821-37020iLY228,270..MTM200108-200407

main33821-37030iRZU280,XZU28#200406-200610

main33821-37050iXKU280200610-201008

sub33821-37051

main33821-37051iXKU280201009-201109

33822ACABLE, TRANSMISSION CONTROL SELECT

main33822-37010iBU28#,RZU280,XZU28#199908-200610

main33822-37020iLY228,270..MTM200108-200407

main33822-37040iXKU280200610-201008

sub33822-37041

main33822-37041iXKU280201009-201109

33823ABRACKET, TRANSMISSION CONTROL CABLE

main33804-37010iLY228..ATM200108-200407

main33823-37480iBU28#..DSL199908-200406

main33823-37490iBU280,RZU280,XZU281..LPG200001-200610

main33823-37510iBU28#,RZU280,XZU28#199908-200610

main33823-37520iLY228..ATM200108-200407

main33823-37740iXZU28#..DCR200406-200610

main33823-37A10iXKU280200610-201109

main33823-37A20iXKU280200610-201109

33826BRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33823-37500iLY228,270..MTM200108-200407

sub33823-37890

main33823-37500iBU28#,RZU280,XZU28#199908-200610

sub33823-37890

main33823-37890iXKU280200610-201109

main33823-37A00iXKU280200610-201109

main33826-37840iLY228,270200108-200407

33829ASUPPORT, TRANSMISSION CONTROL CABLE

main33829-25050iLY228,270..MTM200108-200407

main33829-25070iLY228..ATM200108-200407

main33829-37200iBU28#,RZU280,XZU28#199908-201109

4501

9011910848

main90119-10848

9017908038

main90179-08038

9046814007

main90468-14007

9046814016

main90468-14016

9048001400

main90480-01400

91511H0612

main91511-H0612

91551A0612

main91551-A0612

91611B0614

main91611-B0614

91612B1020

main91612-B1020

9161961250

main91619-61250

91641K0822

main91641-K0822

91651B0822

main91651-B0822

91651B0825

main91651-B0825

9413000802

main94130-00802

9413060800

main94130-60800

9418560800

main94185-60800

25 parts on this diagram · 4 diagrams in section
