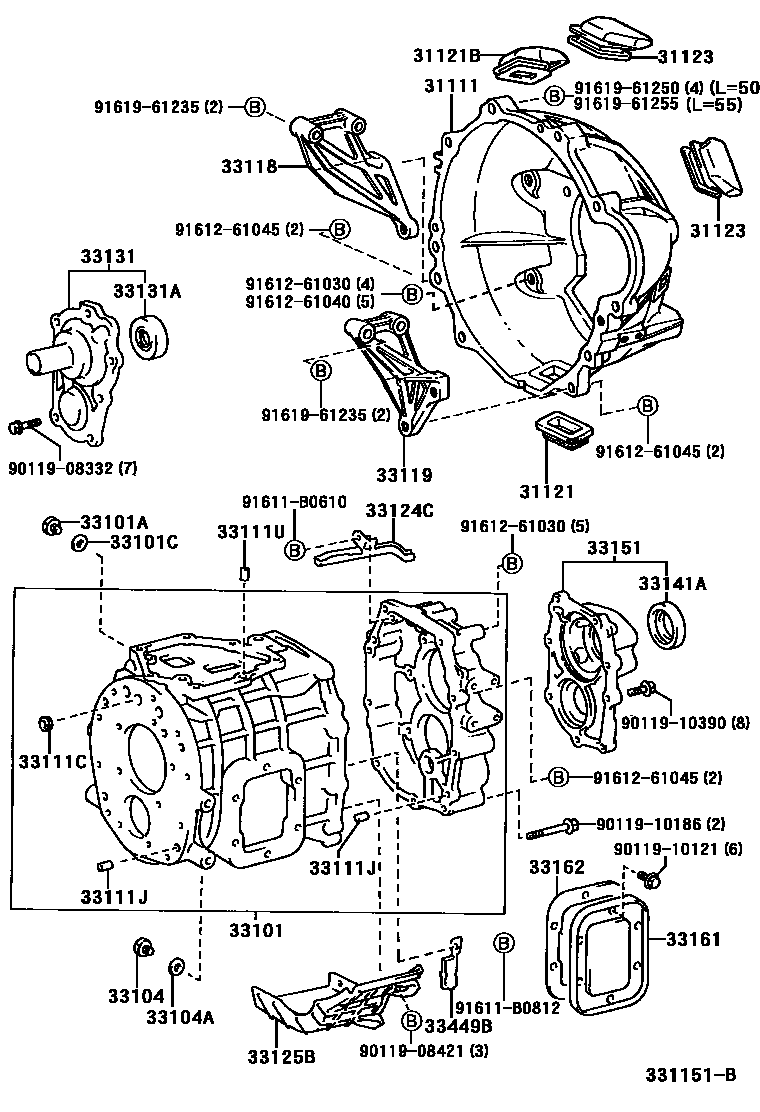

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1M153 0002 1M153 0003 1M155 0004 1R452 0005 1R352 0006 1M550

31111HOUSING, CLUTCH

main31111-25030iLY228..MTM200108-200407

main31111-26020iLY270200108-200407

main31111-36310iBU28#..DSL199908-200406

main31111-36331iBU280,XZU281..LPG200001-200610

main31111-37090iXZU28#..DCR200406-200610

main31111-37100iXKU280200610

sub31111-36400

31121COVER, CLUTCH HOUSING, NO.1

main31121-28041iXKU280200610-201109

main31121-36040iRZU280199908-200610

sub31121-36110

31121BCOVER, CLUTCH HOUSING, NO.3

main31121-28030iBU28#..DSL199908-200406

31123COVER, CLUTCH HOUSING, NO.2

main31121-28041iRZU280199908-200610

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-36083iBU28#199908-200110

sub33101-36084

main33101-36084iBU280..LPG200110-200610

main33101-36130iXKU280200610

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iBU280..LPG199908-200610

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iBU280..LPG199908-200610

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iBU280..LPG199908-200610

main90341-18057iXKU280200610

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iRZU280199908-200610

33111CASE, MANUAL TRANSMISSION

main33101-25020iLY228..MTM200108-200407

sub33101-25021

main33101-26040iLY270200108-200407

sub33101-26041

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLY228,270..MTM200108-200407

main96411-11600iXZU28#200001-200610

main96411-41800iLY228,270..MTM200108-200407

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10232iXKU280200610

main90250-12002iRZU280200001-200610

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iBU280..LPG199908-200610

main90253-11021iXKU280200610

main90253-13017iRZU280199908-200610

main90253-15001iLY228,270..MTM200108-200407

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLY228,270..MTM200108-200407

main33118-36021iBU28#..DSL199908-200405

main33118-37030iBU280..LPG200001-200610

33119PLATE, STIFFENER, LH(MTM)

main33119-25060iLY228,270..MTM200108-200407

main33119-26021iRZU280..D200001-200610

main33119-36042iBU28#..DSL199908-200405

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36030iBU280..LPG199908-200610

main33124-37020iXKU280200610

sub33124-37021

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-36020iBU280..LPG199908-200610

33131RETAINER, BEARING, FRONT(MTM)

main33018-36060iBU280..LPG199908-200610

main33018-37010iXZU28#..DCR200406-200610

main33018-37050iXKU280200610

main33131-35031iLY228,270..MTM200108-200407

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iXZU281..LPG;BU28#,LY228,270..MTM..DSL199908-200610

main90311-35023iXKU280200406-200610

33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

main90311-48011iRZU280199908-200610

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33017-36031iBU280..LPG199908-200610

main33017-37030iXKU280200610-201202

sub33017-37070

main33151-35020iLY228,270..MTM200108-200407

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-25010iLY228..MTM200108-200407

main33161-36010iBU280..LPG199908-200610

33162GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER

main33162-36020iRZU280199908-200610

33449BMAGNET, TRANSMISSION

main33449-35030iLY228,270..MTM200108-200407

main33449-36010iRZU280199908-200610

9011908332

main90119-08332

9011908421

main90119-08421

9011910121

main90119-10121

9011910186

main90119-10186

9011910390

main90119-10390

91611B0610

main91611-B0610

91611B0812

main91611-B0812

9161261030

main91612-61030

9161261040

main91612-61040

9161261045

main91612-61045

9161961235

main91619-61235

9161961250

main91619-61250

9161961255

main91619-61255

37 parts on this diagram · 6 diagrams in section
