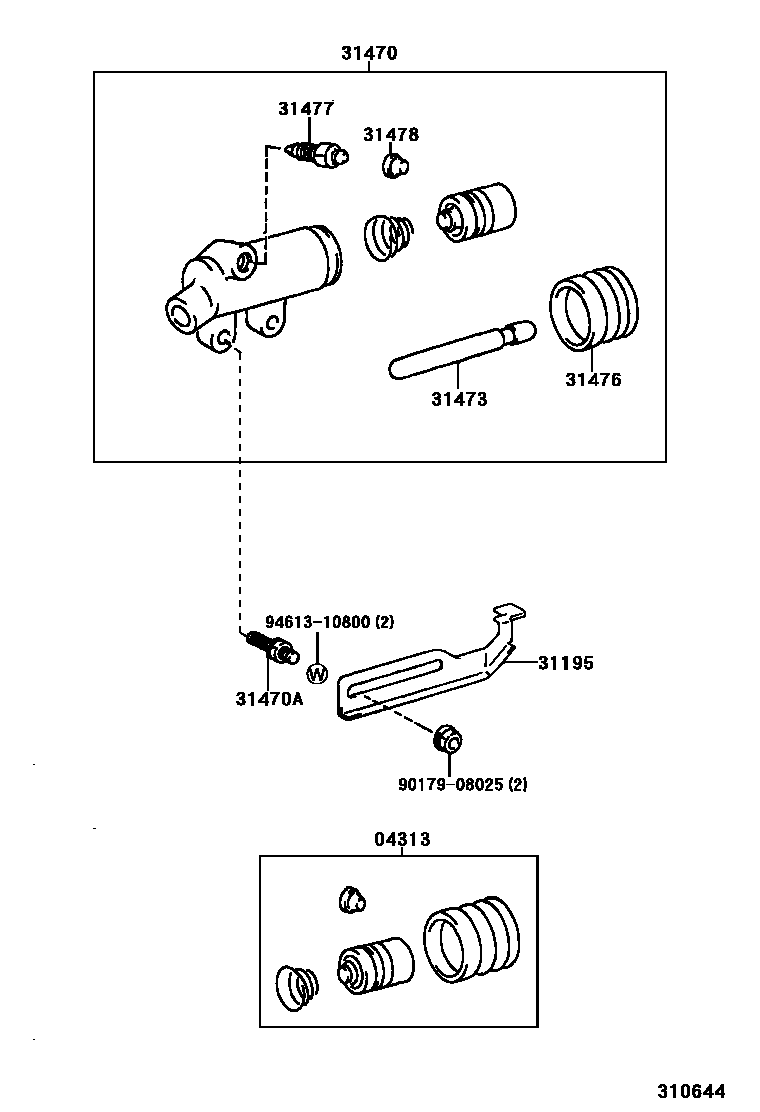

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLY228,270..MTM200108-200407

main04313-30130iBU280..LPG200001-200210

main04313-36150iBU28#..DSL199908-200406

main04313-37030iXZU28#..DCR200406-200610

main04313-53010iBU280,RZU280,XZU281..LPG200210-200610

31195PLATE, CLUTCH DISC WEAR INDICATOR

main31195-37040iXZU28#..DCR200406-200610

main31195-37060iBU280..LPG200001-200610

main31195-37080iBU28#..DSL199908-200406

main31195-37110iXKU280200610

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-35110iLY228,270..MTM200108-200407

main31470-36310iBU280..LPG200001-200210

sub31470-36311

main31470-36311iRZU280200210-200610

main31470-37070iBU28#..DSL199908-200406

main31470-37080iXKU280200406-200610

sub31470-37081

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iBU28#,XZU28#199908-200610

main91611-B0825iLY228,270..MTM200108-200407

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-32010iBU280..LPG200001-200210

main31473-35050iRZU280200108-200610

main31473-37050iXKU280200406-200610

main31473-60170iBU28#..DSL199908-200406

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iRZU280199908-200610

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iRZU280199908-200610

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iRZU280199908-200610

9017908025

main90179-08025

9461310800

main94613-10800

10 parts on this diagram · 4 diagrams in section
