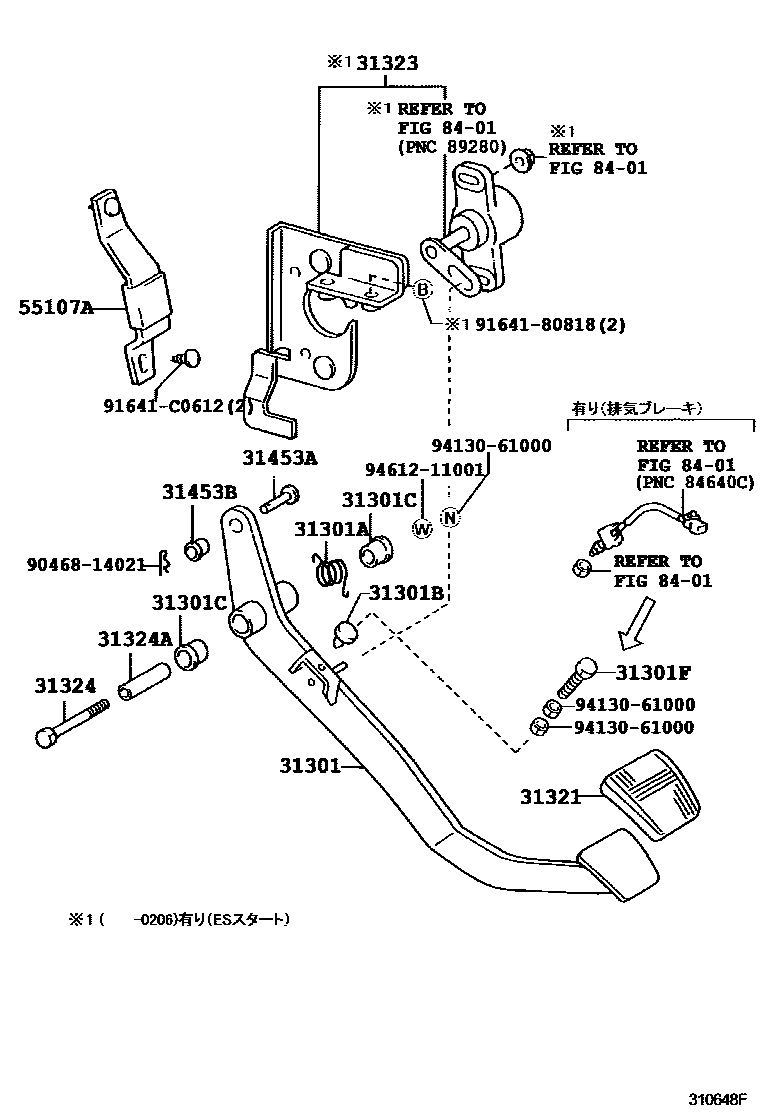

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-37200iBU28#,LY228,270,RZU280..MTM199908-200404

main31301-37201iBU28#;RZU280..D200404-200406

main31301-37210iBU280..LPG;BU28#..N..DSL199908-200206

main31301-37330iXKU280200610-201109

31301ASPRING(FOR CLUTCH PEDAL)

main90508-35004iXKU280200610-201109

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iBU28#,LY228,270,RZU280,XZU28#..MTM199908-200610

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iBU28#,LY228,270,RZU280,XZU28#..MTM199908-200610

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iRZU280200001-200310

31321PAD, CLUTCH PEDAL

main31321-52010iBU28#,LY228,270,RZU280,XZU28#..MTM199908-200610

31323BRACKET, CLUTCH PEDAL

main31302-37020iBU280..LPG;BU28#..N..DSL199908-200206

31324SHAFT, CLUTCH PEDAL

main91121-61070iBU28#,LY228,270,RZU280,XZU28#..MTM199908-200610

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iBU28#,LY228,270,RZU280,XZU28#..MTM199908-200610

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iXKU280200610-201109

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iBU28#,LY228,270,RZU280,XZU28#..MTM199908-200610

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-37040iBU28#,LY228,270,RZU280,XZU28#..MTM199908-200610

8401

9046814021

main90468-14021

9164180818

main91641-80818

91641C0612

main91641-C0612

9413061000

main94130-61000

9461211001

main94612-11001

18 parts on this diagram · 6 diagrams in section
