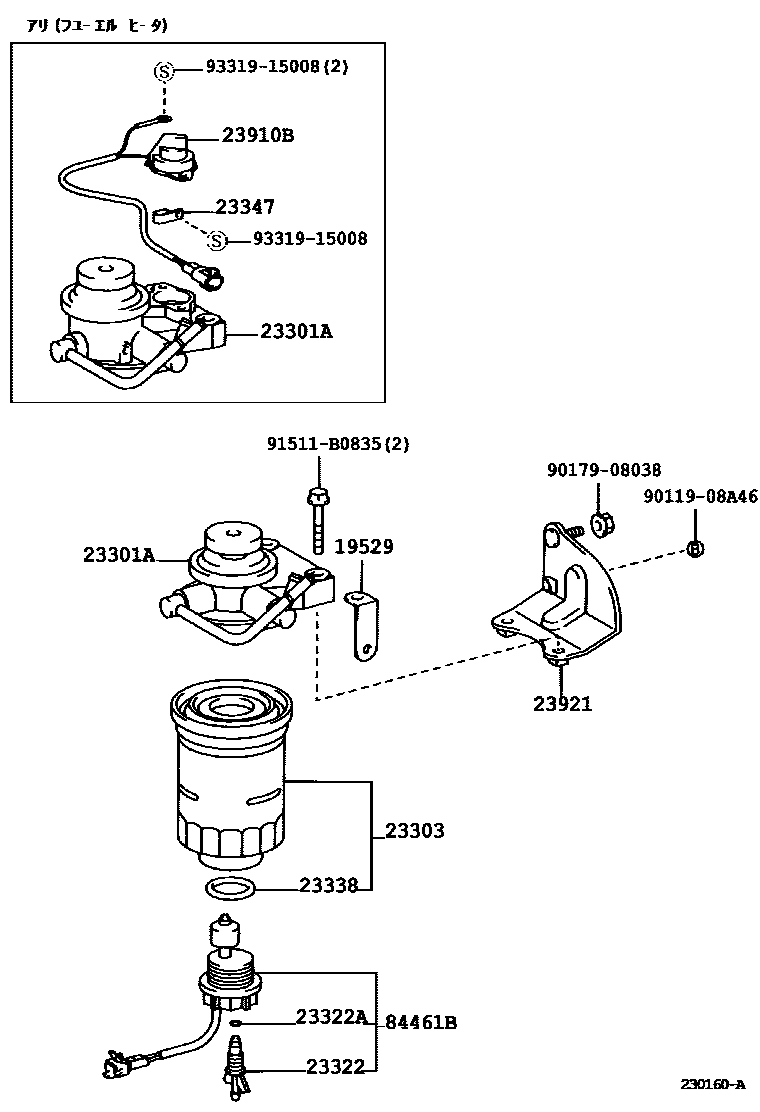

FUEL FILTER

0001 1 0002 1 0003 1

19529CLAMP

main19529-54020i5L..LY228,270200108-200407

main19529-56010i4B..BU28#199908-200406

23301ACAP ASSY, FUEL FILTER

main23301-58190i4B..BU28#199908-200406

main23301-58200i4B..BU28#199908-200406

main23380-5B240i5L..LY228,270200108-200407

sub23380-5B241

main23380-5B250i5L..LY228,270200108-200407

sub23380-5B251

main23380-78310iN04C..XZU28#200406-200901

sub23380-78311

main23380-78311iN04C..XKU280200901

main23380-78320iN04C..XKU280200406-200812

sub23380-78321

main23380-78321iN04C..XKU280200812

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i4B..BU28#199908-200406

main23390-64480i5L..LY228,270200108-200407

main23390-78280iN04C..XKU280200610-200812

main23390-78280iN04C..XZU28#200406-200610

main23390-78300iN04C..XKU280200812

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i4B..BU28#199908-200406

main23388-64470i5L..LY228,270200108-201109

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i5L..LY228,270199908-201109

23338GASKET(FOR WARNING SWITCH)

main23344-64010i4B..BU28#199908-200610

23347CLIP, CORD

main23347-54010i4B..BU28#199908-200406

23910BHEATER ASSY, FUEL

main23910-17030i4B..BU28#199908-200406

main23910-17060iN04C..XKU280200610-200812

main23910-17070iN04C..XZU28#200406-200610

main23910-54120i5L..LY228,270200108-200407

23921SUPPORT, FUEL FILTER

main23921-54530i5L..LY228,270200108-200407

main23921-58100i4B..BU28#199908-200406

main23921-78210iN04C..XZU28#200406-200610

84461BSWITCH, LEVEL WARNING

main84461-28040iLY228,270200108-201202

sub84461-28041

main84461-60040iBU28#..DSL199908-200406

9011908A46

main90119-08A46

9017908038

main90179-08038

91511B0835

main91511-B0835

9331915008

main93319-15008

14 parts on this diagram · 3 diagrams in section
