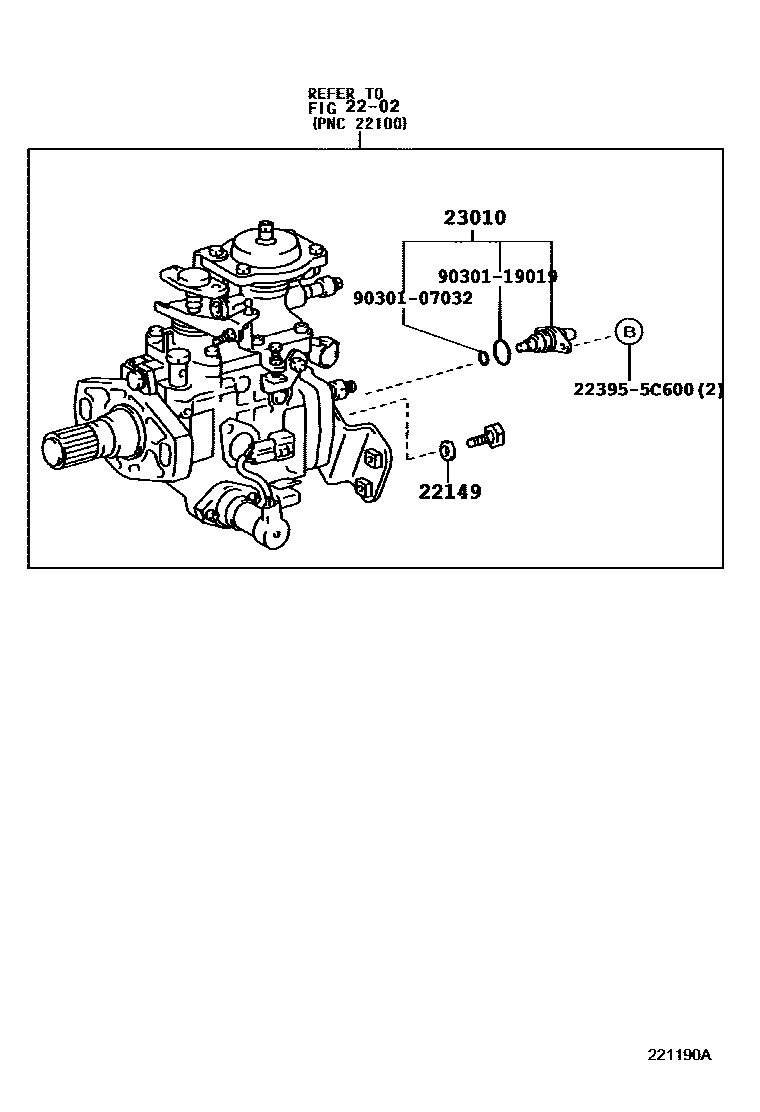

INJECTION PUMP BODY

0001 1 0002 1 0003 1 0004 1

2202

22149GASKET, DELIVERY VALVE

main22149-56351×4i5L..LY228,270200108-200407

main22149-5C600i4B..BU28#199908-200406

23010VALVE ASSY, TIMING CONTROL

main23010-58010i4B..BU28#199908-200406

223955C600BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-5C600

9030107032

main90301-07032

9030119019

main90301-19019

6 parts on this diagram · 4 diagrams in section
