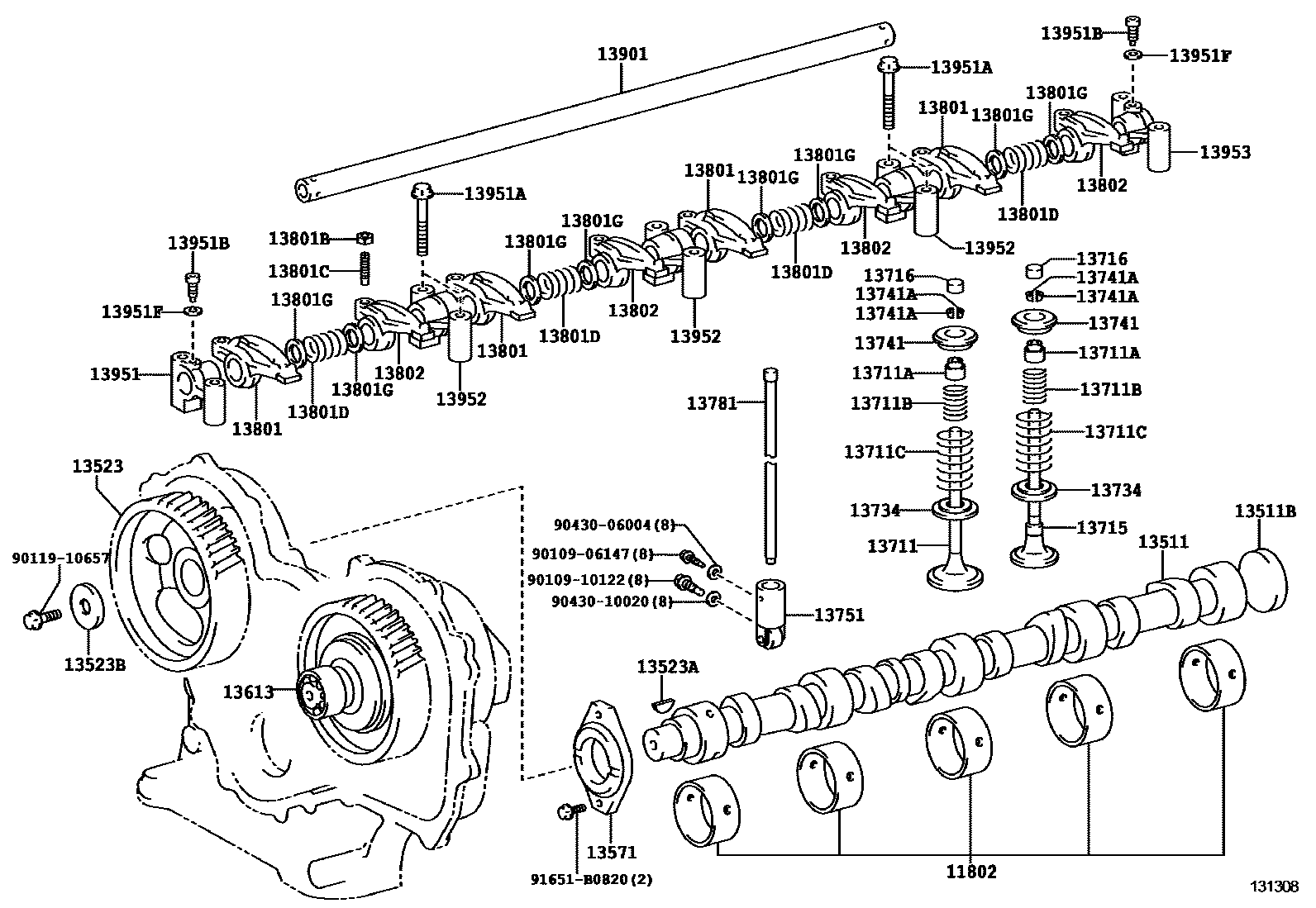

CAMSHAFT & VALVE
13511BPLUG, EXPANSION(FOR CAMSHAFT)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13523AKEY, WOODRUFF(FOR TIMING GEAR)
13523BWASHER, PLATE(FOR TIMING GEAR)
13571PLATE, CAMSHAFT THRUST
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
13711BSPRING, COMPRESSION(FOR INNER)
13711CSPRING, COMPRESSION(FOR OUTER)
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13801BNUT, HEXAGON(FOR VALVE ADJUSTING)
13801DSPRING, COMPRESSION(FOR ROCKER ARM)
13801GWASHER, PLATE(FOR VALVE ROCKER ARM)
13951ABOLT(FOR ROCKER SUPPORT SET)
13951BSCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK)
13951FWASHER, PLATE(FOR VALVE ROCKER SUPPORT)
13952SUPPORT, VALVE ROCKER, NO.2
13953SUPPORT, VALVE ROCKER, NO.3
9010906147
main90109-06147
9010910122
main90109-10122
9011910657
main90119-10657
9043006004
main90430-06004
9043010020
main90430-10020
91651B0820
main91651-B0820
38 parts on this diagram · 5 diagrams in section
