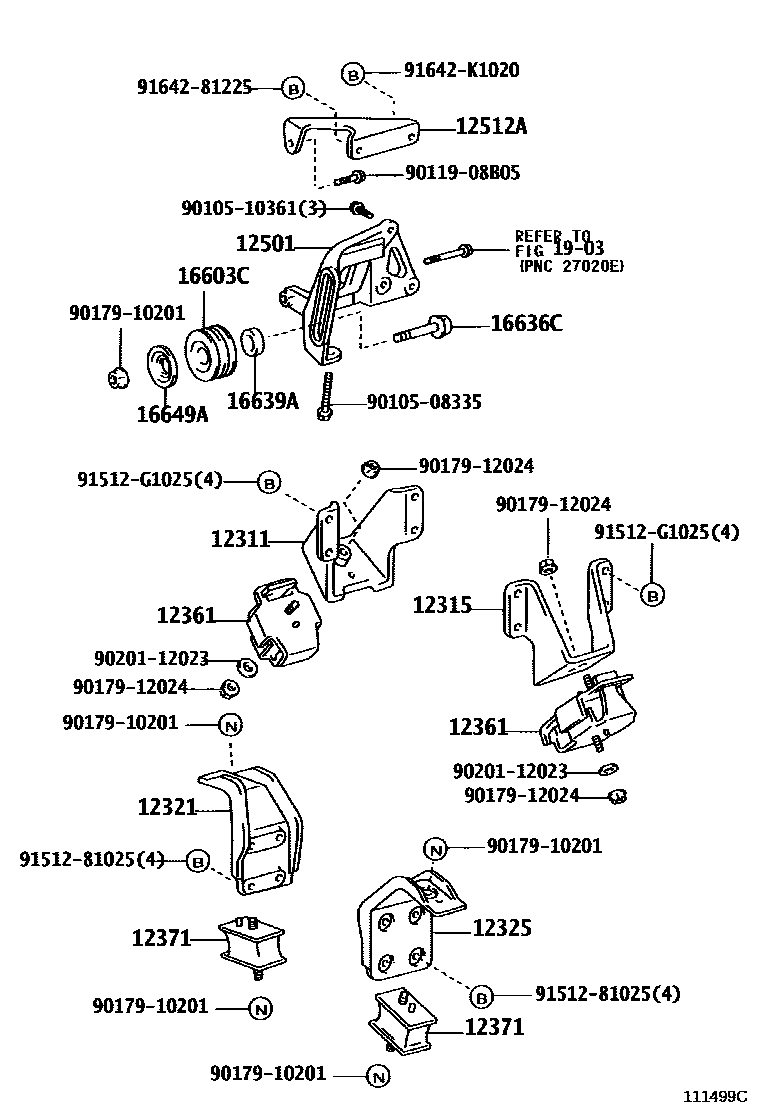

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54181i5L..LY228,270200108-200407

main12311-58070i4B..BU28#199908-200406

main12311-75040i3RZFPE..BU280200001-200610

main12311-78080iN04C..XZU28#200406-200610

subS1231-12010

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-58070i4B..BU28#199908-200406

main12315-75041i3RZFPE..XZU281200001-200610

main12315-75080i3RZFPE..BU280200209-200307

main12315-78060iN04C..XZU28#200406-200610

subS1231-52010

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-54110i5L..LY228..MTM200108-200407

sub12321-54111

main12321-54120i5L..LY270200108-200407

sub12321-54121

main12321-54130i5L..LY228..ATM200108-200407

main12321-58250i3RZFPE..RZU280199908-200610

main12321-78520iN04C..XKU280200610-201109

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-58210i3RZFPE..RZU280199908-200610

main12325-78490iN04C..XKU280200610-201109

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54240i5L..LY228,270200108-200206

sub12361-54241

main12361-54241i5L..LY228,270200206-200407

sub12361-54242

main12361-56071iN04C..XKU280199908-200610

main12361-75030i3RZFPE..RZU280..N200001-200610

sub12361-75031

sub90179-12127

main12362-56011i4B..BU28#199908-200610

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-58080i4B,3RZFPE..BU28#199908-200610

main12371-78010iN04C..XKU280200610-201109

sub12371-78060

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-58030i4B..BU28#199908-200406

main12501-78130iN04C..XZU28#200406-200610

sub12511-E0580

main12511-78120iN04C..XKU280200610-201007

sub12511-78121

main12511-78121iN04C..XKU280201007-201103

sub12511-E0021

12512ABRACKET, ALTERNATOR, NO.2

main12512-58010i4B..BU280..D199908-200406

main12512-58020i4B..BU280199908-200406

main12512-58020i4B..BU281200003-200406

16603CPULLEY SUB-ASSY, IDLER

main16603-58010i4B..BU28#199908-200406

16636CSHAFT, IDLER PULLEY, NO.1

main16636-58020i4B..BU28#199908-200406

sub16636-58021

16639ASPACER, IDLER PULLEY

main16639-58010i4B..BU28#199908-200406

16649APLATE, IDLER PULLEY COVER

main16649-58010i4B..BU28#199908-200406

1903

9010508335

main90105-08335

9010510361

main90105-10361

9011908B05

main90119-08B05

9017910201

main90179-10201

9017912024

main90179-12024

9020112023

main90201-12023

9151281025

main91512-81025

91512G1025

main91512-G1025

9164281225

main91642-81225

91642K1020

main91642-K1020

23 parts on this diagram · 7 diagrams in section
