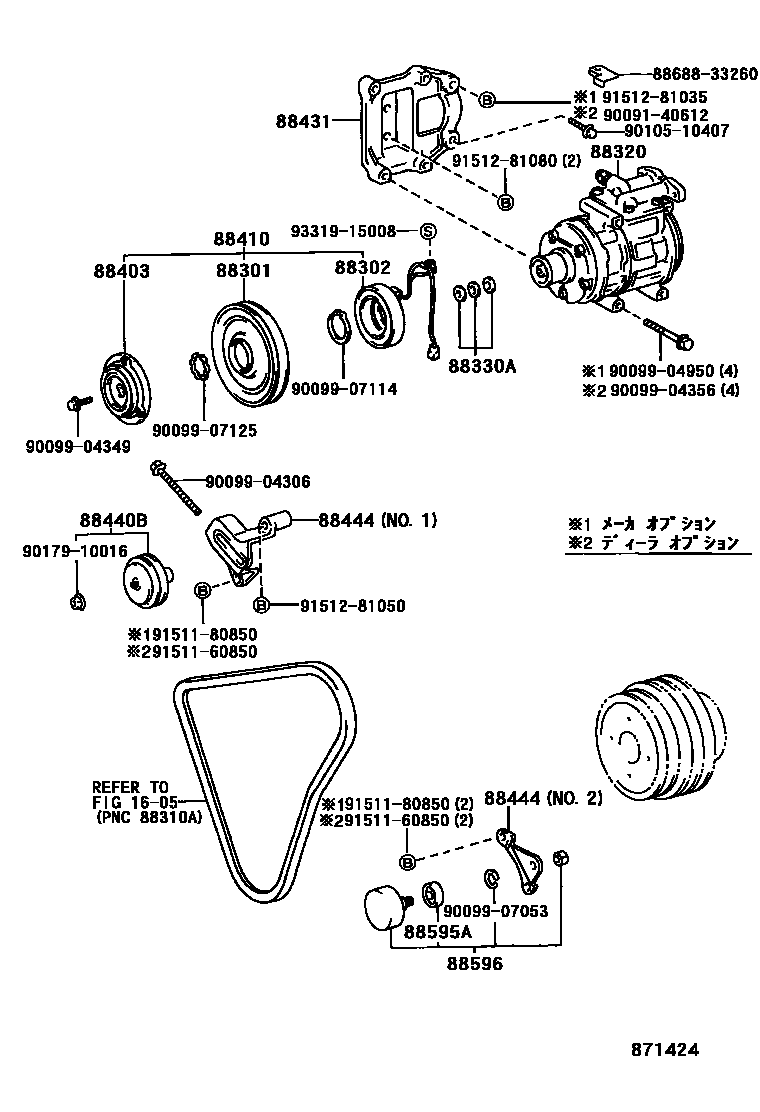

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1����� �� 0003 1 0004 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-25060iRZU68199610

main88412-26030iBU68,LH8#,LY15#199505

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-22310iRZU68199610-199708

sub88411-2A030

main88411-25050iRZU68199610

main88411-2A030iRZU68199708

main88411-35070iLH8#,LY15#199505

main88411-60090iBU68..N199505

88320COMPRESSOR ASSY, COOLER

main88320-25070iBU68..N199505-199610

main88320-25090iRZU68199610

main88320-26490iLY15#199505

sub88320-26H91

main88320-26500iLH8#199505

sub88320-26H91

main88320-36380iBU68199505

sub88320-35H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-12050iRZU68199610

main88335-14020iRZU68199610

main88335-14020iBU68,LH8#,LY15#199505

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-30290iRZU68199610

main88403-30290iBU68,LH8#,LY15#199505

main88403-36030iRZU68199610

88410CLUTCH ASSY, MAGNET

main88410-25130iRZU68199610

main88410-26140iLH8#,LY15#199505

main88410-37020iBU68199505

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-25130iBU68..N199505

main88431-25131iBU68..D199505

main88431-25131iBU68..N199602

main88431-25140iRZU68199610

main88431-26240iLY15#199505

main88431-35170iLH8#199505

88440BPULLEY ASSY, IDLE

main88440-25050iRZU68199610

main88440-26090iBU68199505

88444BRACKET, IDLE PULLEY

main88444-26170iLY15#199505

main88444-35050iLH8#199505

main88444-37030iBU68199505

main88444-37040iBU68199505

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-35010iLH8#,LY15#199505

88595ABEARING (FOR COOLER IDLE PULLEY)

main90099-10015iBU68,LH8#,LY15#199505

88596PULLEY ASSY, IDLE, NO.2

main88440-26070iBU68,LH8#,LY15#199505

8868833260BRACKET, COOLER DIAPHRAGM

main88688-33260

9009140612

main90091-40612

9009904306

main90099-04306

9009904349

main90099-04349

9009904356

main90099-04356

9009904950

main90099-04950

9009907053

main90099-07053

9009907114

main90099-07114

9009907125

main90099-07125

9010510407

main90105-10407

9017910016

main90179-10016

9151160850

main91511-60850

9151180850

main91511-80850

9151281035

main91512-81035

9151281050

main91512-81050

9151281080

main91512-81080

9331915008

main93319-15008

30 parts on this diagram · 4 diagrams in section
