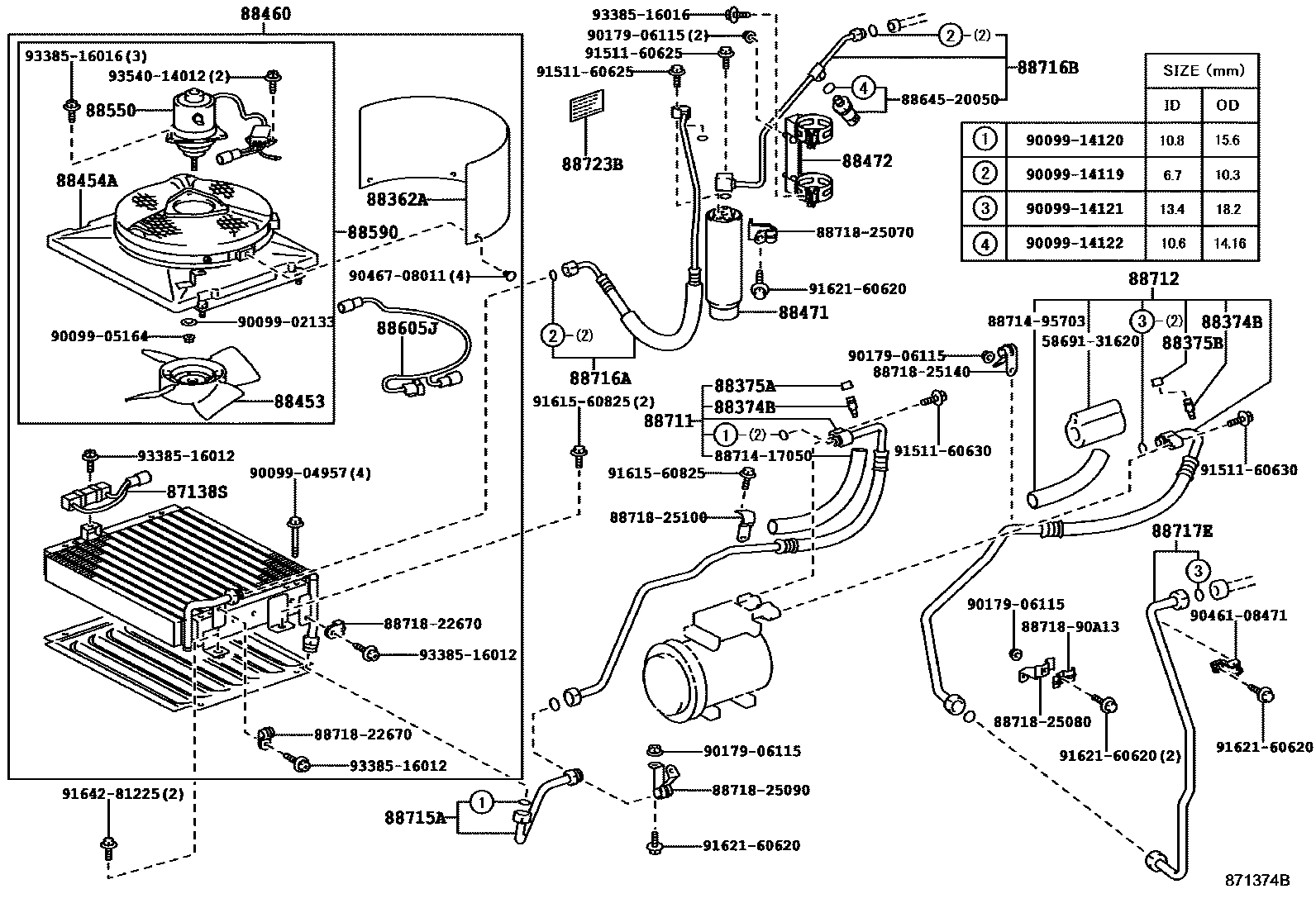

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1������ 0004 1���-� ������ 0005 1������ 0006 1���-� ������ 0007 1

87138SRESISTOR, BLOWER

main87138-95410iLH8#,LY15#199505

main87138-95411iBU68,RZU68199505

88362APLATE,SEAL

main88362-25010iBU68,RZU68199505

main88362-90D04iLH8#199505

main88362-90D05iLY15#199505

88374BVALVE, SERVICE, NO.1

main88374-30010iBU68,RZU68199505

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iBU68,LY15#,RZU68199505

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iBU68,LY15#,RZU68199505

88453FAN, COOLING (FOR CONDENSER)

main88453-95A01iBU68,LH8#,LY15#,RZU68199505

88454ASHROUD, FAN

main88454-25040iBU68,RZU68199505

88460CONDENSER ASSY, COOLER

main88460-25130iBU68..N199505-199712

sub88460-25131

main88460-25131iBU68..N199712-199908

main88460-25140iBU68..D199505-199712

sub88460-25141

main88460-25141iBU68..D199712-199908

main88460-25150iRZU68199610-199712

sub88460-25151

main88460-25151iRZU68199712-199908

main88460-26190iLY15#199505

main88460-26200iLH8#199505

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iBU68,LH8#,LY15#,RZU68199505

sub88471-34010

88472BRACKET, RECEIVER TANK, NO.1

main88473-25010iBU68,RZU68199505

main88473-37010iLH8#,LY15#199505

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main87104-37030iBU68199505-199712

sub88550-25030

main87104-95406iLH8#,LY15#199505

main88550-25020iRZU68199610-199712

sub88550-25040

main88550-25030iBU68199712

main88550-25040iRZU68199712

88590BLOWER ASSY, W/SHROUD

main88590-25030iBU68..D199505-199712

sub88590-25031

main88590-25031iBU68..N199712

main88590-25040iRZU68199610-199712

sub88590-25041

main88590-25041iRZU68199712

88605JHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-25110iBU68,RZU68199505

main88605-90D07iLH8#199505

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-25190iBU68199505

main88711-26410iLY15#199505

main88711-26440iLH8#199505

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-25240iBU68199505

main88712-25260iRZU68199610

main88712-26380iLY15#199505

main88712-26390iLH8#199505

88715APIPE, COOLER REFRIGERANT DISCHARGE, A

main88715-25130iBU68199505

main88715-26160iLH8#,LY15#199505

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-26530iLH8#,LY15#199505

main88721-25110iBU68199505

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-25170iBU68,RZU68199505

main88716-26520iLH8#,LY15#199505

88717EPIPE, COOLER REFRIGERANT SUCTION, E

main88717-25180iBU68199505

main88717-25240iRZU68199610

88723BLABEL, COOLER SERVICE CAUTION

main88723-20030iBU68,LH8#,LY15#,RZU68199505

sub88733-30040

5869131620SHEET, SILENCER

main58691-31620

8864520050DEVICE SUB-ASSY, IDLE UP

main88645-20050

8871417050HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-17050

8871495703HOSE, COOLER REFRIGERANT LIQUID, NO.1

main88714-95703

8871822670PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22670

8871825070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-25070

8871825080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-25080

8871825090PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-25090

8871825100PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-25100

8871825140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-25140

8871890A13PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-90A13

9009902133

main90099-02133

9009904957

main90099-04957

9009905164

main90099-05164

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009914122

main90099-14122

9017906115

main90179-06115

9046108471

main90461-08471

9046708011

main90467-08011

9151160625

main91511-60625

9151160630

main91511-60630

9161560825

main91615-60825

9162160620

main91621-60620

9164281225

main91642-81225

9338516012

main93385-16012

9338516016

main93385-16016

9354014012

main93540-14012

49 parts on this diagram · 7 diagrams in section
