HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1�-� ����-� 0003 1�-� ����-� 0004 1�� ���� 0006 1�� ���� 0007 1�-����� ����

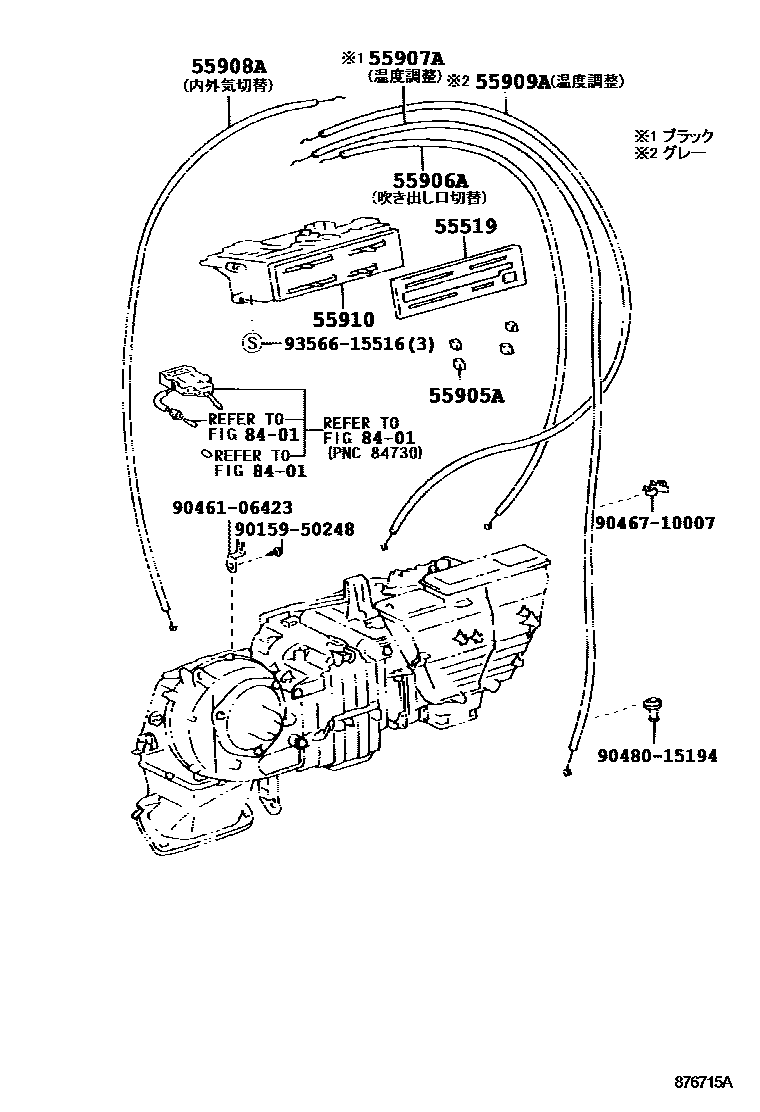

55519PLATE, HEATER CONTROL NAME

main55519-37010iBU68..D199505-199908

main55519-37020iBU68,RZU68..N199505-199908

sub55519-37010

main55519-95405iLH8#,LY15#199505-200108

55905AKNOB, HEATER CONTROL

main55905-12070iLH8#,LY15#199505-200108

main55905-12070iLH8#,LY15#199505-200108

main55905-89115iBU68,RZU68199505-199908

55906CABLE SUB-ASSY, HEATER CONTROL

main55905-26010iLH8#,LY15#199505

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-25010iBU68,RZU68199505-199908

main55906-26020iLH8#,LY15#199505-200108

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-25010iBU68,RZU68199505-199908

main55907-26020iLH8#,LY15#199505-200108

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-25010iBU68,RZU68199505-199908

main55908-90D01iLH8#,LY15#199505-200108

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-25010iBU68,RZU68199505-199908

main55909-90D01iLH8#,LY15#199505-200108

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-25010iBU68,RZU68199505-199908

main55910-36070iLH8#,LY15#199505-200108

8401

9015950248

main90159-50248

9046106423

main90461-06423

9046710007

main90467-10007

9048015194

main90480-15194

9356615516

main93566-15516

14 parts on this diagram · 5 diagrams in section
