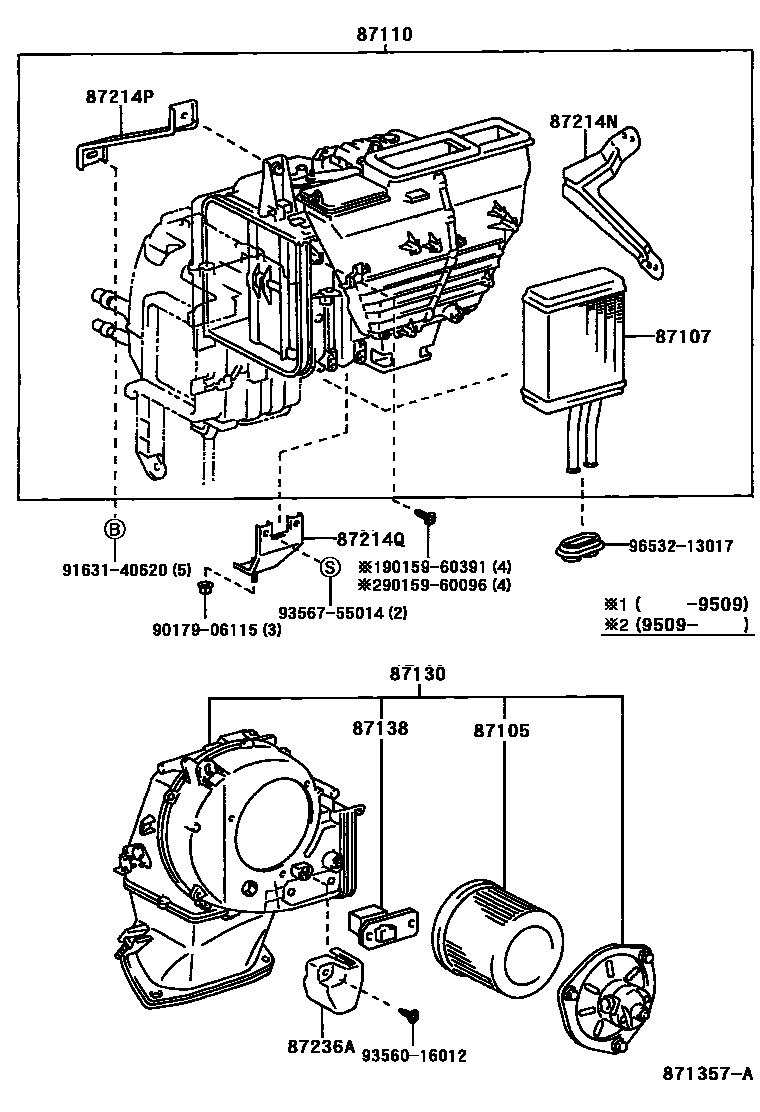

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0003 1

87105FAN SUB-ASSY, HEATER BLOWER

main87105-16020iLH8#,LY15#199505

main87105-25010iBU68,RZU68199505

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-25010iBU68,RZU68199505

main87107-25020iBU68,RZU68199505

main87107-90D01iLH8#,LY15#199505

main87107-90D03iLH8#,LY15#199505

87110HEATER ASSY

main87110-25060iBU68,RZU68199505

main87110-25070iBU68,RZU68199505

main87110-90D06iLH8#,LY15#199505

main87110-90D07iLH8#,LY15#199505

87130BLOWER ASSY, HEATER, FRONT

main87130-25010iBU68199505

main87130-25020iRZU68199610

87138RESISTOR, HEATER BLOWER

main87138-26020iLH8#,LY15#199505

main87138-37080iRZU68199610

main87138-37090iBU68199505

87214NBRACKET, AIR DUCT, NO.1

main87214-25010iBU68,RZU68199505

87214PBRACKET, AIR DUCT, NO.2

main87214-25020iBU68,RZU68199505

87214QBRACKET, AIR DUCT, NO.3

main87214-25030iBU68,RZU68199505

87236ACOVER, HEATER BLOWER

main87236-25020iBU68,RZU68199505

9015960096

main90159-60096

9015960391

main90159-60391

9017906115

main90179-06115

9163140620

main91631-40620

9356016012

main93560-16012

9356755014

main93567-55014

9653213017

main96532-13017

16 parts on this diagram · 2 diagrams in section
