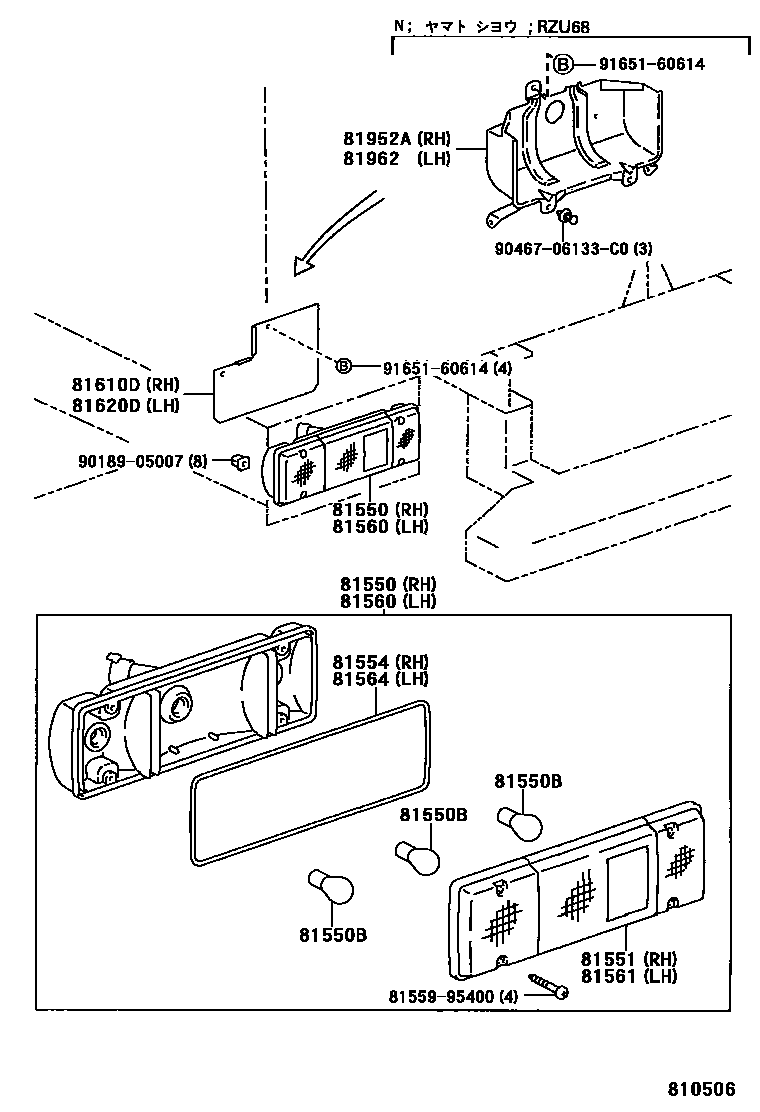

REAR COMBINATION LAMP

81550LAMP ASSY, REAR COMBINATION, RH

main81550-25120iBU68¥12,100199505

sub81550-25121¥11,200

sub81559-95400¥120

main81550-90D02iLH8#,LY15#,RZU68¥11,800199505

sub81550-37150¥10,700

sub81559-95400¥120

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-16027iBU68¥500199505

main99132-11210iLH8#,LY15#,RZU68¥170199505

main99132-21210iLH8#,LY15#,RZU68¥190199505

main99134-11250iBU68¥230199505

81551LENS, REAR COMBINATION LAMP, RH

main81551-60451iBU68,LH8#,LY15#,RZU68¥1,850199505

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-95400iBU68,LH8#,LY15#,RZU68¥510199505

81560LAMP ASSY, REAR COMBINATION, LH

main81560-25110iBU68¥12,100199505

sub81560-25111¥11,200

sub81559-95400¥120

main81560-90D02iLH8#,LY15#,RZU68¥11,800199505

sub81560-37160¥10,700

sub81559-95400¥120

81561LENS, REAR COMBINATION LAMP, LH

main81561-60381iBU68,LH8#,LY15#,RZU68¥1,850199505

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81552-95400iBU68,LH8#,LY15#,RZU68¥510199505

81610DCOVER, REAR COMBINATION LAMP, RH

main81610-26010iLY15#¥5,500199505

main81610-90D01iBU68,LH8#..D¥1,810199505

81620DCOVER, REAR COMBINATION LAMP, LH

main81620-26010iLY15#¥5,500199505

main81620-90D01iBU68,LH8#..D¥1,810199505

81952ACOVER, REAR LAMP, RH

main81952-37010iLH8#,LY15#;BU68,RZU68..N¥4,330199505

sub81952-37030¥4,890

81962COVER, REAR LAMP, LH

main81962-37010iLH8#,LY15#;BU68,RZU68..N¥4,330199505

sub81962-37020¥4,890

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400¥120

9018905007

main90189-05007¥160

9046706133C0

main90467-06133C0

9165160614

main91651-60614¥70

15 parts on this diagram · 1 diagram in section
