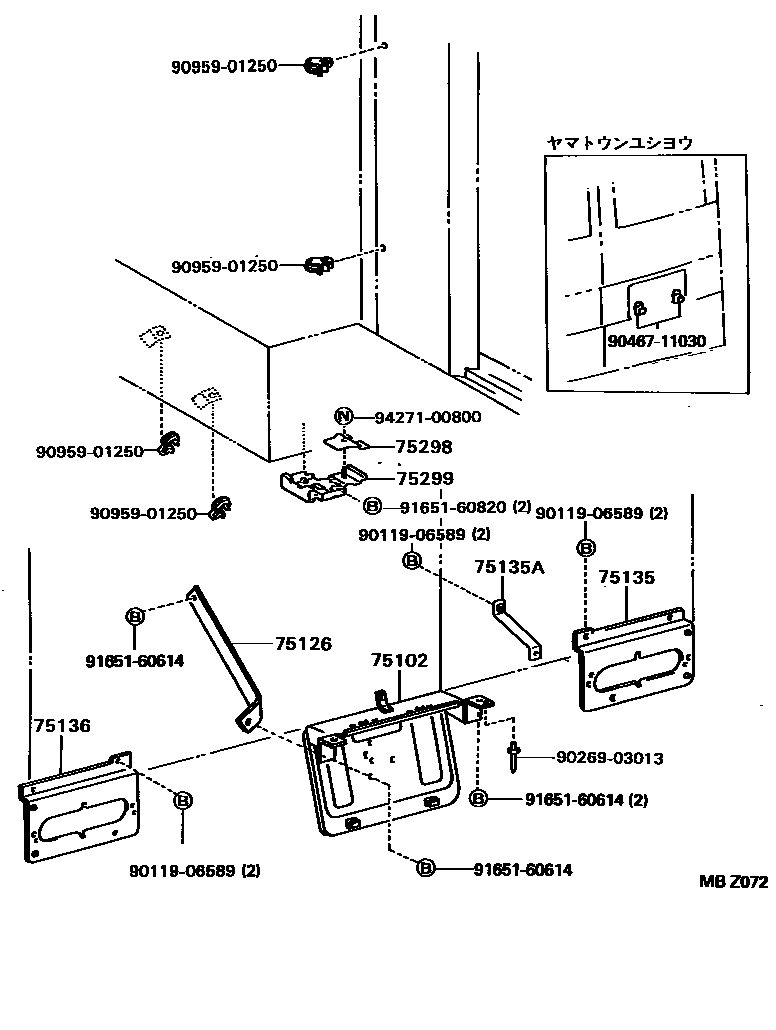

TOOL BOX & LICENSE PLATE BRACKET

0001 1 0002 1

75102BRACKET SUB-ASSY, REAR LICENSE PLATE

main75102-90D05iLH8#,LY15#199505

main75112-90F01iBU68..D199505

75126STAY, REAR LICENSE PLATE BRACKET, LOWER

main75125-90F02iBU68..D199505

75135BRACKET, COMBINATION REAR LAMP, RH

main75133-26020iBU68,LH8#,LY15#,RZU68199505

75135ASTAY, COMBINATION REAR LAMP BRACKET

main75135-90D00×2iBU68,LH8#,LY15#..D199505

main75135-90D01×2iBU68..D199505

75136BRACKET, COMBINATION REAR LAMP, LH

main75134-26020iBU68,LH8#,LY15#,RZU68199505

75298PLATE, JACK HOLDER

main75298-95400iBU68,RZU68199505

75299BASE, JACK HOLDER

main75299-95401iBU68,RZU68199505

sub75299-37060

9011906589

main90119-06589

9026903013

main90269-03013

9046711030

main90467-11030

9095901250

main90959-01250

9165160614

main91651-60614

9165160820

main91651-60820

9427100800

main94271-00800

14 parts on this diagram · 2 diagrams in section
