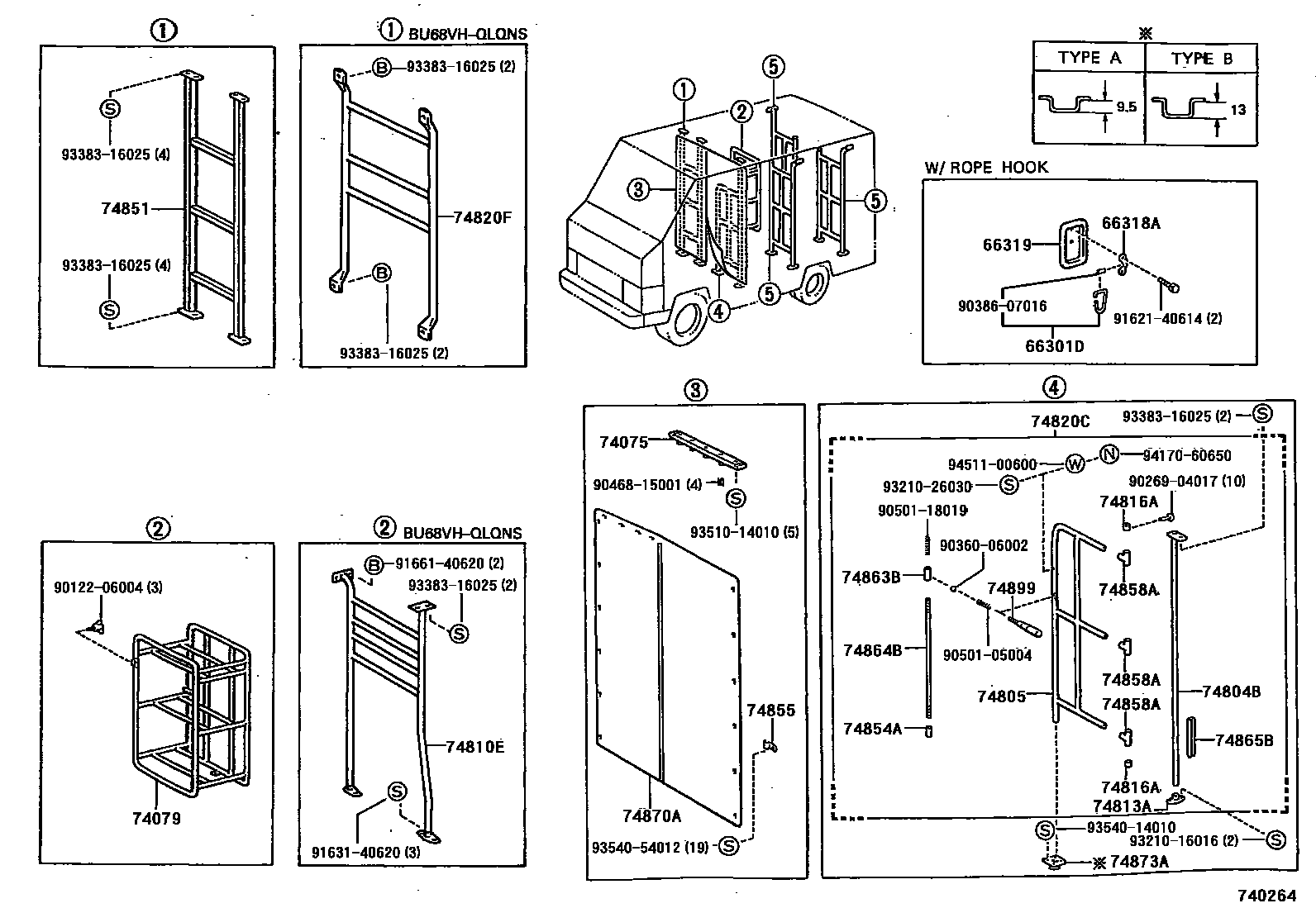

SEPARATOR & SEPARATOR CURTAIN
66301DHOOK SUB-ASSY, ROPE
66318ABAND, ROPE HOOK
66319PLATE, ROPE HOOK
74075RAIL SET, SEPARATOR CURTAIN
74079RACK SUB-ASSY, PARCEL
74804BBAR SUB-ASSY, SEPARATOR VERTICAL, LH
74805SEPARATOR SUB-ASSY
74810EBAR ASSY, SEPARATOR
74813ABRACKET, SEPARATOR
74816ARING, PIPE
74820CSEPARATOR ASSY, FRONT LH
74820FSEPARATOR ASSY, NO.2
74851BAR, SEPARATOR
BLUISH GRAY,TRIM1#
BLUISH GRAY,TRIM1#
74855PLATE, SEPARATOR CURTAIN SET
74858ABRACKET, SEPARATOR BAR, UPPER
74863BROD, SEPARATOR
74864BSHAFT, SEPARATOR
74865BCOVER, CENTER PROTECTOR
74873ABRACKET, SEPARATOR, LOWER, NO.1
74899HANDLE, SEPARATOR
9012206004
main90122-06004
9026904017
main90269-04017
9036006002
main90360-06002
9038607016
main90386-07016
9046815001
main90468-15001
9050105004
main90501-05004
9050118019
main90501-18019
9162140614
main91621-40614
9163140620
main91631-40620
9166140620
main91661-40620
9321016016
main93210-16016
9321026030
main93210-26030
9338316025
main93383-16025
9351014010
main93510-14010
9354014010
main93540-14010
9354054012
main93540-54012
9417060650
main94170-60650
9451100600
main94511-00600
40 parts on this diagram · 2 diagrams in section
