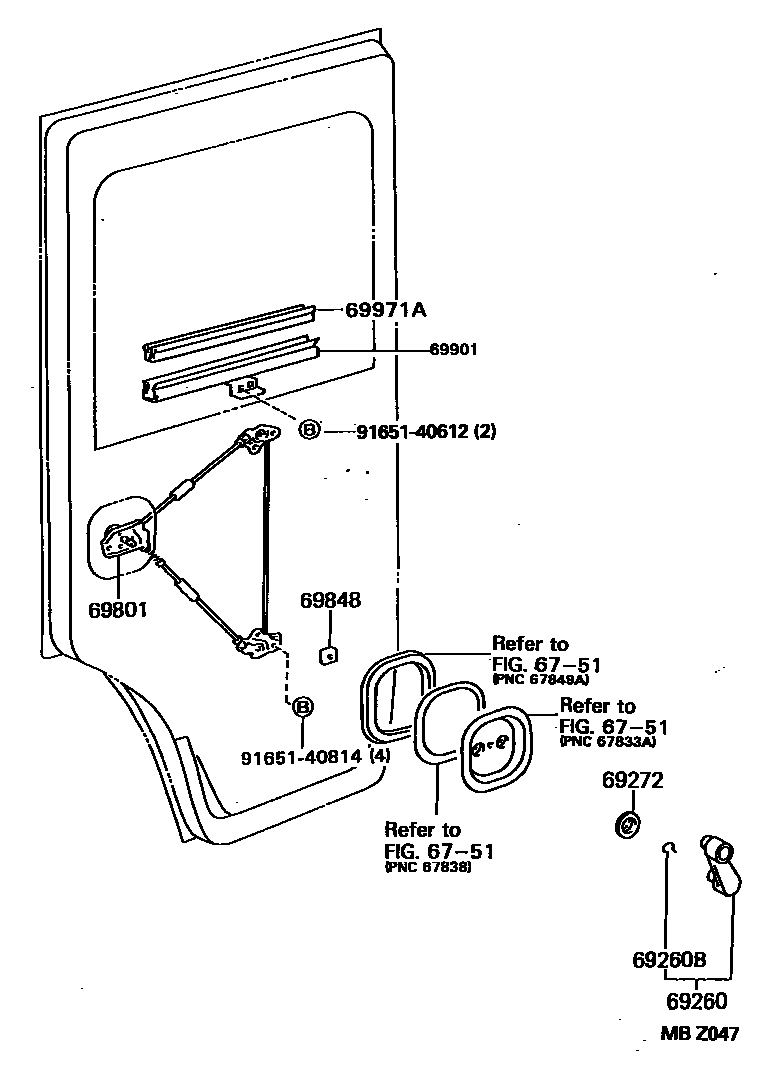

FRONT DOOR WINDOW REGULATOR & HINGE

6751

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-14030-B1iBU68,LH8#,LY15#,RZU68199505

BLUISH GRAY,TRIM1#

sub69260-14030

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274iBU68,LH8#,LY15#,RZU68199505

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69272-30010-08iBU68,LH8#,LY15#,RZU68199505

NATURAL WHITE,TRIM1#

sub69272-30010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-90D00iBU68,LH8#,LY15#,RZU68199505

69848SEAL, WINDOW REGULATOR HOLE

main69848-90D00iBU68,LH8#,LY15#,RZU68199505

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-90D00iBU68,LH8#,LY15#,RZU68199505

69971AFILLER, FRONT DOOR GLASS CHANNEL

main69971-90D00iBU68,LH8#,LY15#,RZU68199505

9165140612

main91651-40612

9165140814

main91651-40814

10 parts on this diagram · 1 diagram in section
