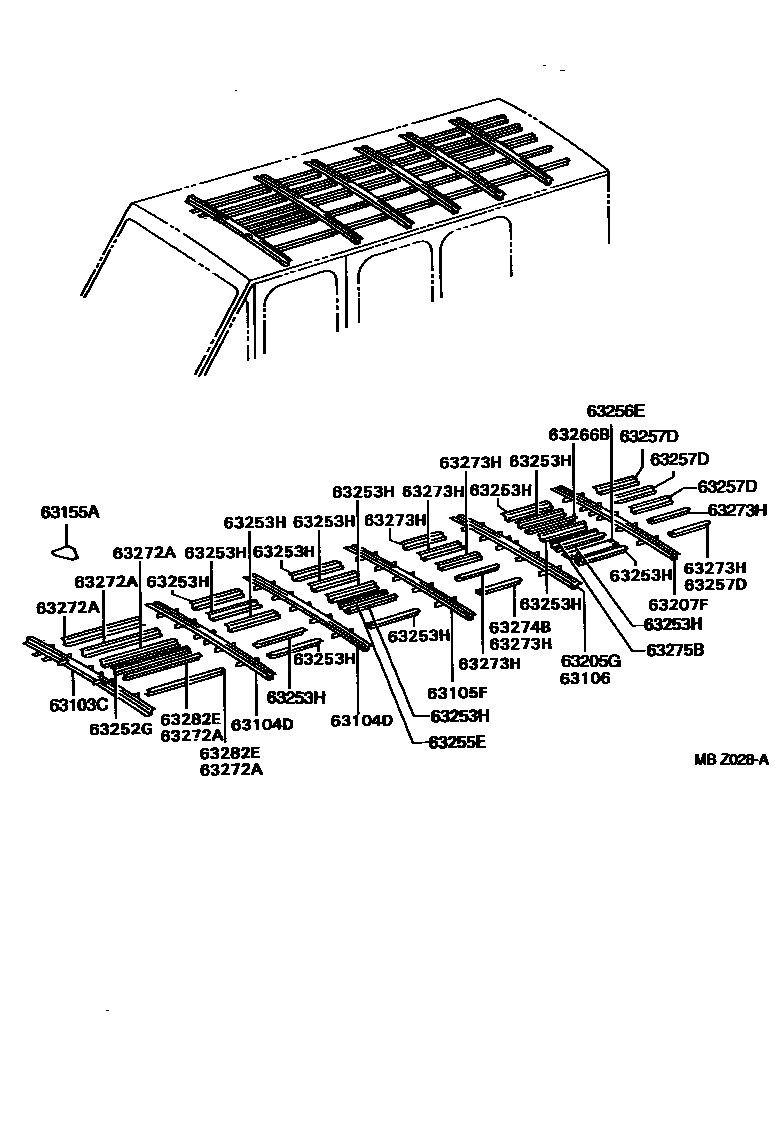

ROOF PANEL & BACK PANEL
63103CREINFORCEMENT SUB-ASSY, ROOF PANEL
63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63105FREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63106REINFORCEMENT SUB-ASSY, ROOF PANEL, NO.4
63155APLATE, ROOF PANEL REINFORCEMENT
63205GREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5
63207FREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.7
63252GSTRENGTH, ROOF PANEL, CENTER NO.2
63253HSTRENGTH, ROOF PANEL, CENTER NO.3
NO.5,RH
NO.3,LH
63255ESTRENGTH, ROOF PANEL, CENTER NO.5
63256ESTRENGTH, ROOF PANEL, CENTER NO.6
63257DSTRENGTH, ROOF PANEL, CENTER NO.7 RH
63266BSTRENGTH, ROOF PANEL, CENTER NO.6 LH
63272ASTRENGTH, ROOF PANEL, NO.2 RH
63273HSTRENGTH, ROOF PANEL, NO.3
63274BSTRENGTH, ROOF PANEL, NO.4 RH
63275BSTRENGTH, ROOF PANEL, NO.5
63282ESTRENGTH, ROOF PANEL, NO.2 LH
18 parts on this diagram · 3 diagrams in section
