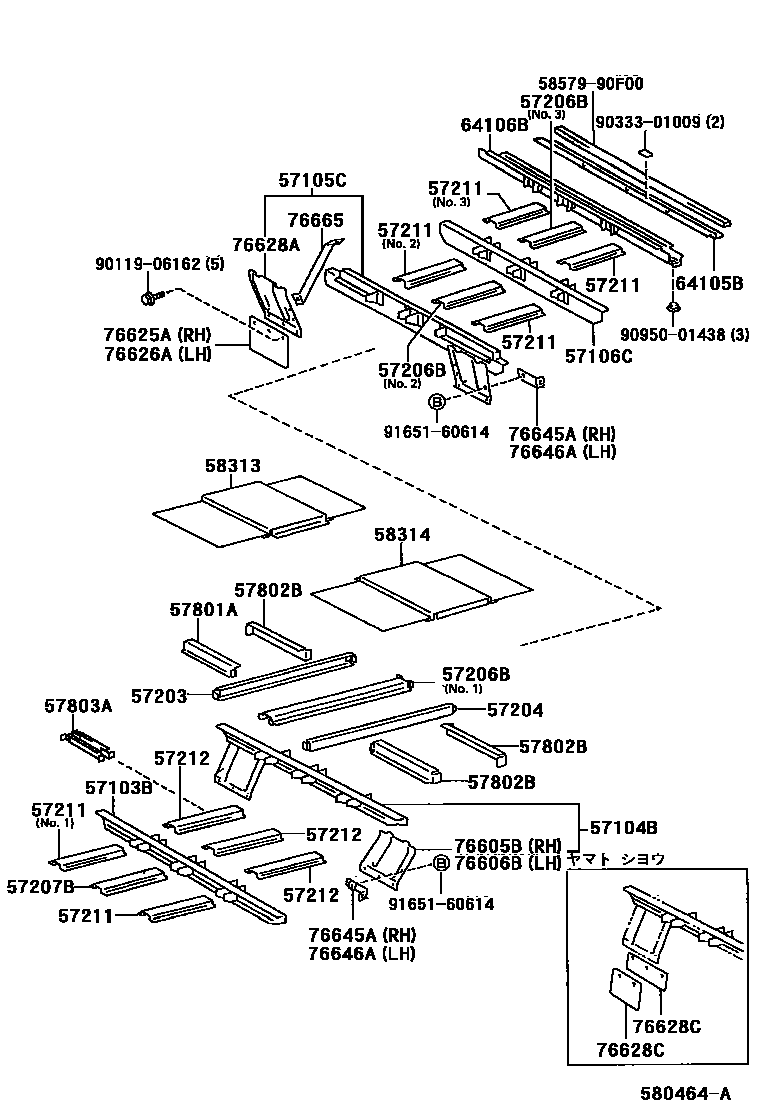

REAR FLOOR PANEL & REAR FLOOR MEMBER
57103BCROSSMEMBER SUB-ASSY, FLOOR, NO.3
57104BCROSSMEMBER SUB-ASSY, FLOOR, NO.4
57105CCROSSMEMBER SUB-ASSY, FLOOR, NO.5
57106CCROSSMEMBER SUB-ASSY, FLOOR, NO.6
57203STRENGTH SUB-ASSY, ANCHOR NO.3
57204STRENGTH SUB-ASSY, ANCHOR, NO.3 LH
57206BSTRENGTH SUB-ASSY, ANCHOR
NO.1
NO.2
NO.3
57207BSTRENGTH SUB-ASSY, REAR FLOOR HOUSING, NO.7
57211STRENGTH, ANCHOR, NO.1
57212STRENGTH, ANCHOR, NO.2
57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
FRONT,RH
FRONT,LH
57802BREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER
REAR,LH
REAR,RH
57803AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, REAR RH
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
64105BRAIL SUB-ASSY, LOWER BACK, OUTER
64106BRAIL SUB-ASSY, LOWER BACK, INNER
76605BMUDGUARD SUB-ASSY, REAR BODY, FRONT RH
76606BMUDGUARD SUB-ASSY, REAR BODY, FRONT LH
76625AMUDGUARD, REAR BODY, RH
76626AMUDGUARD, REAR BODY, LH
76628AMUDGUARD, REAR BODY, REAR
76628CMUD GRARD, REAR BODY
76645ABRACKET, REAR BODY MUDGUARD NO.1, RH
76646ABRACKET, REAR BODY MUDGUARD NO.1, LH
76665BRACE, REAR MUDGUARD
5857990F00SET PLATE, REAR FLOOR CARPET, NO.1
9011906162
9033301009
9095001438
9165160614
31 parts on this diagram · 2 diagrams in section
