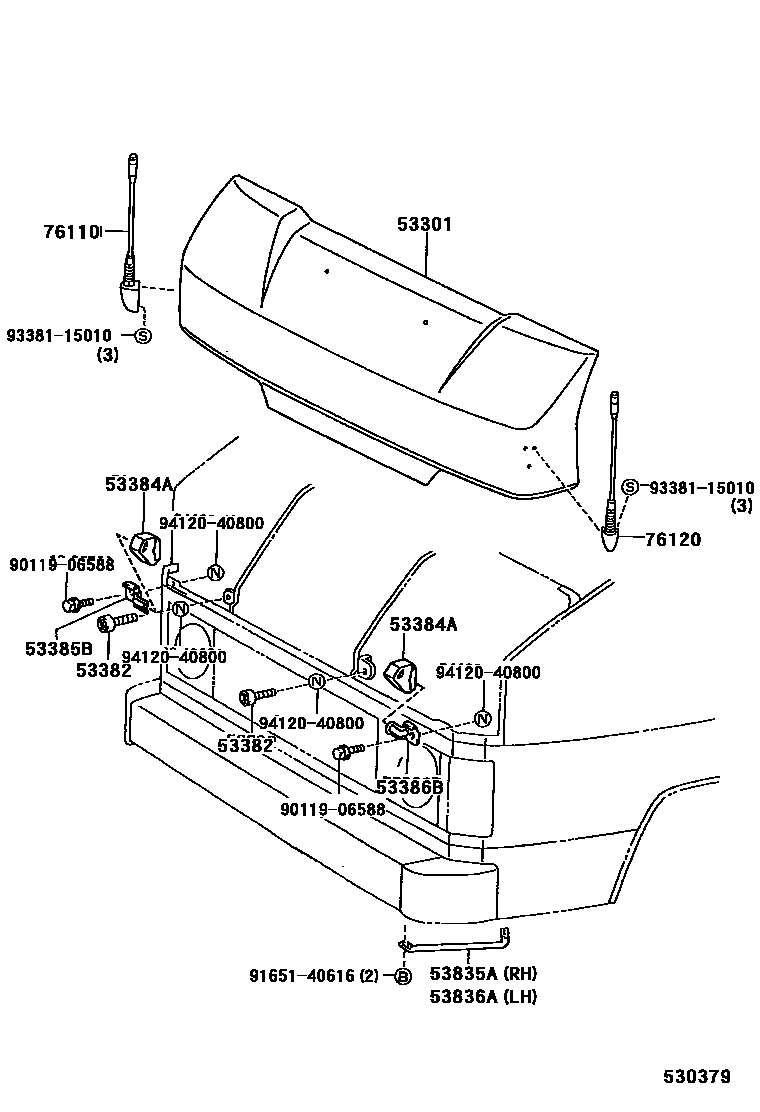

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-25010iBU68,RZU68..N199505

main53301-25020iBU68..D199505

main53301-90D07iLH8#,LY15#199505

main53301-90D08iLH8#,LY15#199505

53382BUMPER, HOOD, FRONT

main53382-90K01iBU68,LH8#,LY15#,RZU68199505

53384ABUMPER, FENDER TO HOOD

main53384-25010iBU68,RZU68199505

main53384-90D01iLH8#,LY15#199505

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53385-20020iBU68,RZU68199505

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53386-20020iBU68,RZU68199505

53835ABRACE, FRONT FENDER TO APRON, RH

main53835-90D02iLH8#199505

main53835-90D03iLY15#199505

main53851-25010iBU68,RZU68199505

53836ABRACE, FRONT FENDER TO APRON, LH

main53836-90D02iLH8#199505

main53836-90D03iLY15#199505

main53852-25010iBU68,RZU68199505

76110POLE ASSY, FENDER, RH

main76110-25010iBU68,RZU68199505

main76110-25020iLH8#,LY15#199505

76120POLE ASSY, FENDER, LH

main76110-25020iLH8#,LY15#199505

main76120-25010iBU68,RZU68199505

9011906588

main90119-06588

9165140616

main91651-40616

9338115010

main93381-15010

9412040800

main94120-40800

13 parts on this diagram · 2 diagrams in section
