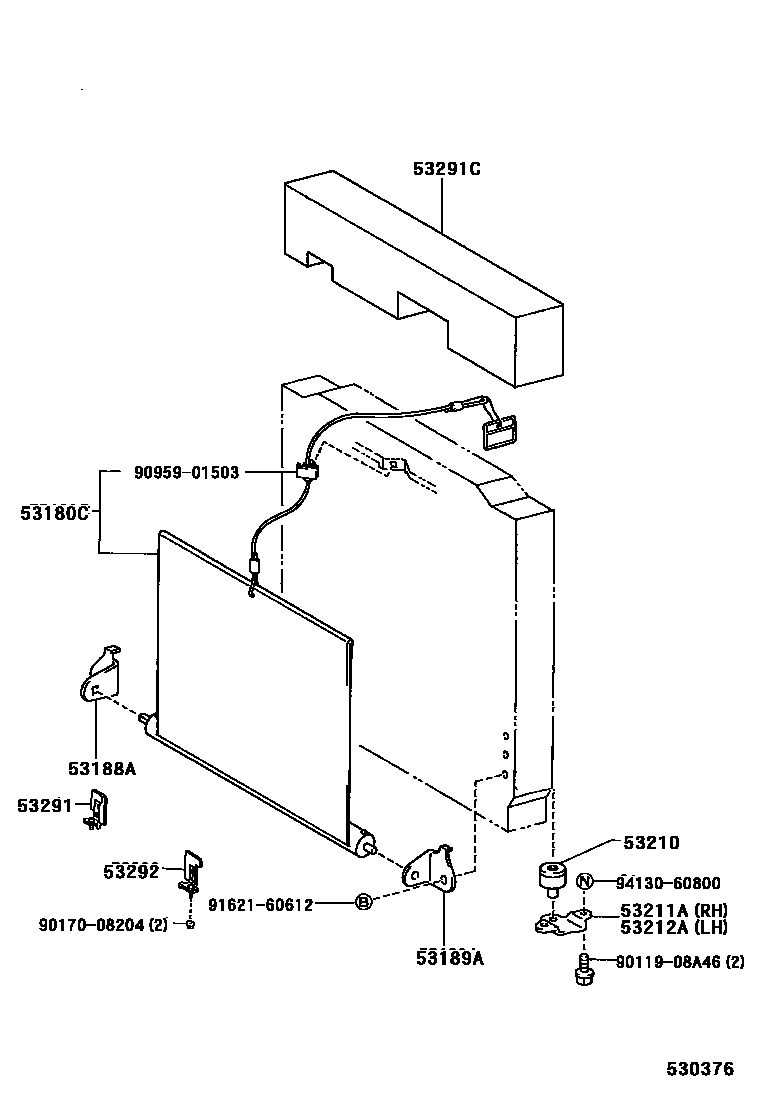

RADIATOR SUPPORT & WIND GUIDE

0001 1 0002 1

53180CSHUTTER ASSY, RADIATOR

main53180-25050iLH8#,LY15#199505

main53180-37010iBU68199505

53188ABRACKET, RADIATOR SHUTTER SUPPORT, RH

main53188-37010iBU68,LH8#,LY15#199505

53189ABRACKET, RADIATOR SHUTTER SUPPORT, LH

main53189-37010iBU68,LH8#,LY15#199505

53210SUPPORT ASSY, RADIATOR

main53210-36010iBU68,RZU68199505

53211ABRACKET, RADIATOR SUPPORT, RH

main51411-36090iBU68,RZU68199505

53212ABRACKET, RADIATOR SUPPORT, LH

main51412-36090iBU68,RZU68199505

53291SEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-36050iBU68199505

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-25010iBU68199505-199610

sub53291-25011

main53291-25011iBU68,RZU68199610

main53291-26010iLY15#199505

main53291-90D04iLH8#199505

53292SEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-36060iBU68199505-199610

sub53292-36061

main53292-36061iBU68199610

9011908A46

main90119-08A46

9017008204

main90170-08204

9095901503

main90959-01503

9162160612

main91621-60612

9413060800

main94130-60800

14 parts on this diagram · 2 diagrams in section
