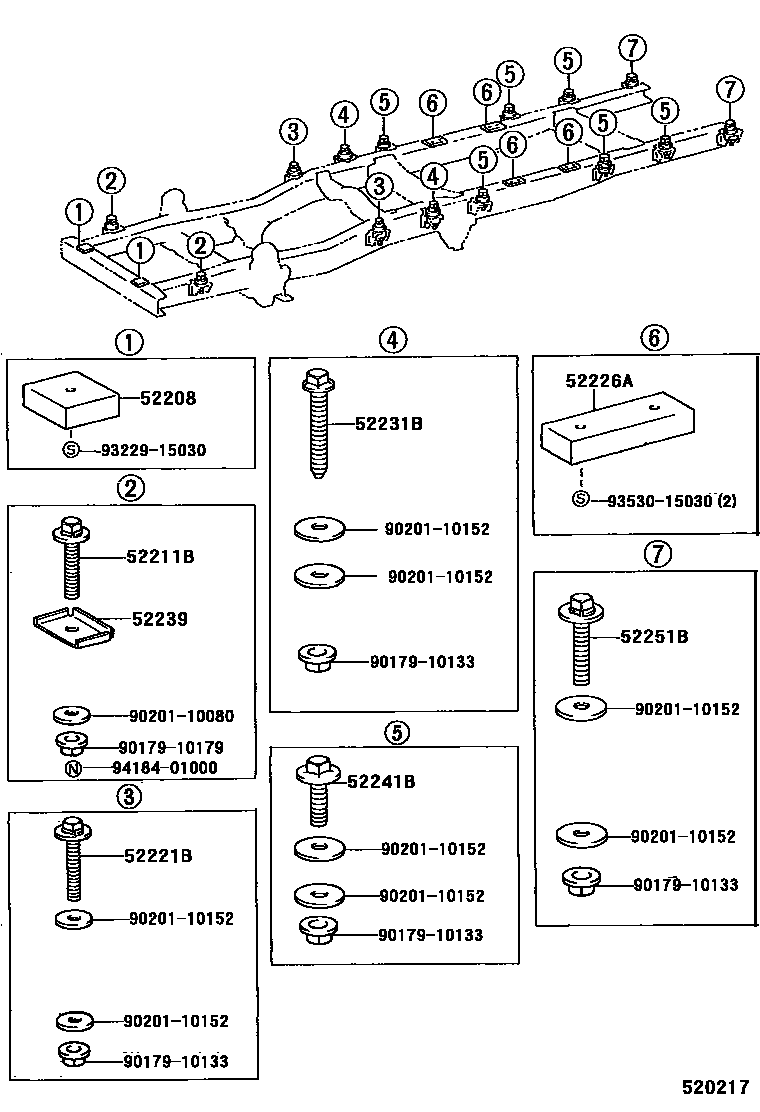

CAB MOUNTING & BODY MOUNTING

0001 1 0002 1 0003 1

52208SHIM SUB-ASSY, BODY MOUNTING

main51248-90D01iLH8#199505

main51248-90D02iLY15#199505

main51248-90F01iBU68,RZU68199505

52211CUSHION, BODY MOUNTING, NO.1 UPPER

main52211-90D02iLH8#199505

main52213-90D02iLY15#199505

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90119-10716iLY15#199505

main90119-10720iBU68,LH8#,RZU68199505

52221CUSHION, BODY MOUNT, NO.2 UPPER

main52291-90D01iLY15#199505

52221BBOLT(FOR BODY MOUNT NO.2 CUSHION)

main90119-10538iBU68,LH8#,RZU68199505

main90119-10720iLY15#199505

52226ACUSHION, BODY REAR MOUNTING, UPPER

main52212-90F01iBU68,RZU68199505

52231CUSHION, BODY MOUNT, NO.3 UPPER

main52212-90D01iLH8#199505

main52212-90D02iLY15#199505

52231BBOLT(FOR BODY MOUNT NO.3 CUSHION)

main90119-10538iBU68,RZU68199505

52239PLATE, BODY MOUNTING

main52239-90D00iLH8#,LY15#199505

main52239-90F00iBU68,RZU68199505

52241CUSHION, BODY MOUNT, NO.4 UPPER

main52291-90D01iLY15#199505

52241BBOLT(FOR BODY MOUNT NO.4 CUSHION)

main90119-10538iLH8#199505

main90119-10720iLY15#199505

52251CUSHION, BODY MOUNT, NO.5 UPPER

main52291-90D01iLY15#199505

52251BBOLT(FOR BODY MOUNT NO.5 CUSHION)

main90119-10538iBU68,LH8#,RZU68199505

main90119-10720iLY15#199505

9017910133

main90179-10133

9017910179

main90179-10179

9020110080

main90201-10080

9020110152

main90201-10152

9322915030

main93229-15030

9353015030

main93530-15030

9418401000

main94184-01000

20 parts on this diagram · 3 diagrams in section
