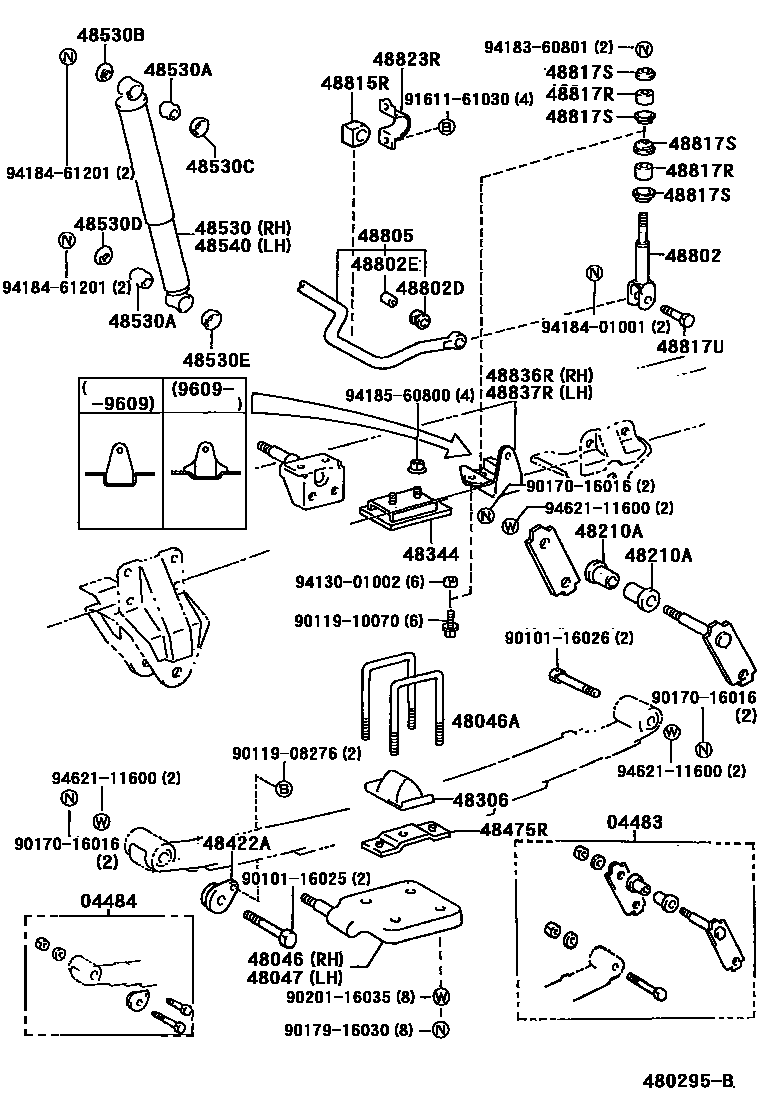

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

04483SHACKLE KIT, REAR SPRING

main04483-26090iLH8#,LY15#199505-200108

main04483-36100iBU68,RZU68199505-199908

04484PIN KIT, REAR SPRING

main04484-26030iLH8#,LY15#199505-200108

main04484-36070iBU68,RZU68199505-199908

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-26080iLH8#,LY15#199505

main48046-36201iBU68,RZU68199505

48046ABOLT, U(FOR REAR SPRING)

main90117-14031iLH8#199505

main90117-14034iLY15#199505

main90117-16011iBU68,RZU68199505

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48046-26080iLH8#,LY15#199505

main48047-36201iBU68,RZU68199505

48210SPRING ASSY, REAR RH

main48210-26440iLH8#199505

main48210-26570iLY15#199505

main48210-3B122iBU68199505

main48210-3B391iBU68..N199505

main48210-3B391iRZU68199610

48210ABUSH(FOR REAR SPRING SHACKLE UPPER)

main90385-18011iLH8#,LY15#199505

main90385-23002iBU68,RZU68199505-199908

48306BUMPER SUB-ASSY, REAR SPRING

main48306-36042iBU68,RZU68199505

48344STOPPER, BUMPER, REAR

main48344-36320iBU68,RZU68199505

48422ASUPPORT, REAR SPRING PIN

main48422-36090iBU68,RZU68199505-199908

48475RPLATE, DISTANCE(FOR REAR)

main48475-36051iBU68..N199505

main48475-36051iRZU68199610

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-36130iBU68,RZU68199505

main48531-80165iLH81199505-199601

sub48531-80496

main48531-80458iLY151199505-199607

sub48531-80556

sub90119-10355

sub90948-03004

main48531-80496iLH8#199601

main48531-80556iLY15#199607

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-16010iLH8#,LY15#199505

main90385-16011iBU68,RZU68199505

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03003iBU68,RZU68199505

48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2

main90948-03004iLH8#,LY15#199505

48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3

main90948-03003iBU68,RZU68199505

48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4

main90948-03004iBU68,RZU68199505

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-36130iBU68,RZU68199505

main48531-80165iLH81199505-199601

sub48531-80496

main48531-80458iLY151199505-199607

sub48531-80556

sub90119-10355

sub90948-03004

main48531-80496iLH8#199601

main48531-80556iLY15#199607

48802LINK SUB-ASSY, STABILIZER

main48802-26040iLH8#,LY15#199505

main48802-36040iBU68199505-199610

sub48802-36041

sub90948-02167

main48802-36041iBU68,RZU68199610

48802DBUSH, STABILIZER LINK

main90385-11021iLH8#,LY15#199505

main90385-13004iBU68,RZU68199505

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10044iBU68,RZU68199505

main90560-10275iLH8#,LY15#199505

48805BAR SUB-ASSY, REAR STABILIZER

main48805-26040iLH8#199505

main48805-26070iLY15#199505

main48805-36022iBU68,RZU68199505

48815RBUSH, STABILIZER(FOR REAR)

main48818-36010iLH8#,LY15#199505

main48818-36020iBU68,RZU68199505

sub48815-37060

sub48823-37011

48817RCUSHION, STABILIZER(FOR REAR)

main48817-36010iBU68,LH8#,LY15#,RZU68199505

48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)

main90948-02015iBU68,LH8#,LY15#,RZU68199505

main90948-02032iBU68,LH81,LY151199505-199610

main90948-02167iBU68,RZU68199610

48817UBOLT(FOR REAR STABILIZER)

main90102-10013iLH8#199505-200101

main91112-61045iLY15#199606-200101

main91112-81045iBU68,RZU68199505-199908

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-36022iLH8#,LY15#199505

main48823-36030iBU68,RZU68199505

sub48823-37011

sub48815-37060

48836RBRACKET, REAR STABILIZER END, RH

main48836-36023iBU68199505-199609

main48836-37021iBU68,RZU68199609

48837RBRACKET, REAR STABILIZER END, LH

main48836-36023iBU68199505-199609

main48836-37021iBU68,RZU68199609

9010116025

main90101-16025

9010116026

main90101-16026

9011908276

main90119-08276

9011910070

main90119-10070

9017016016

main90170-16016

9017916030

main90179-16030

9020116035

main90201-16035

9161161030

main91611-61030

9413001002

main94130-01002

9418360801

main94183-60801

9418401001

main94184-01001

9418461201

main94184-61201

9418560800

main94185-60800

9462111600

main94621-11600

43 parts on this diagram · 6 diagrams in section
