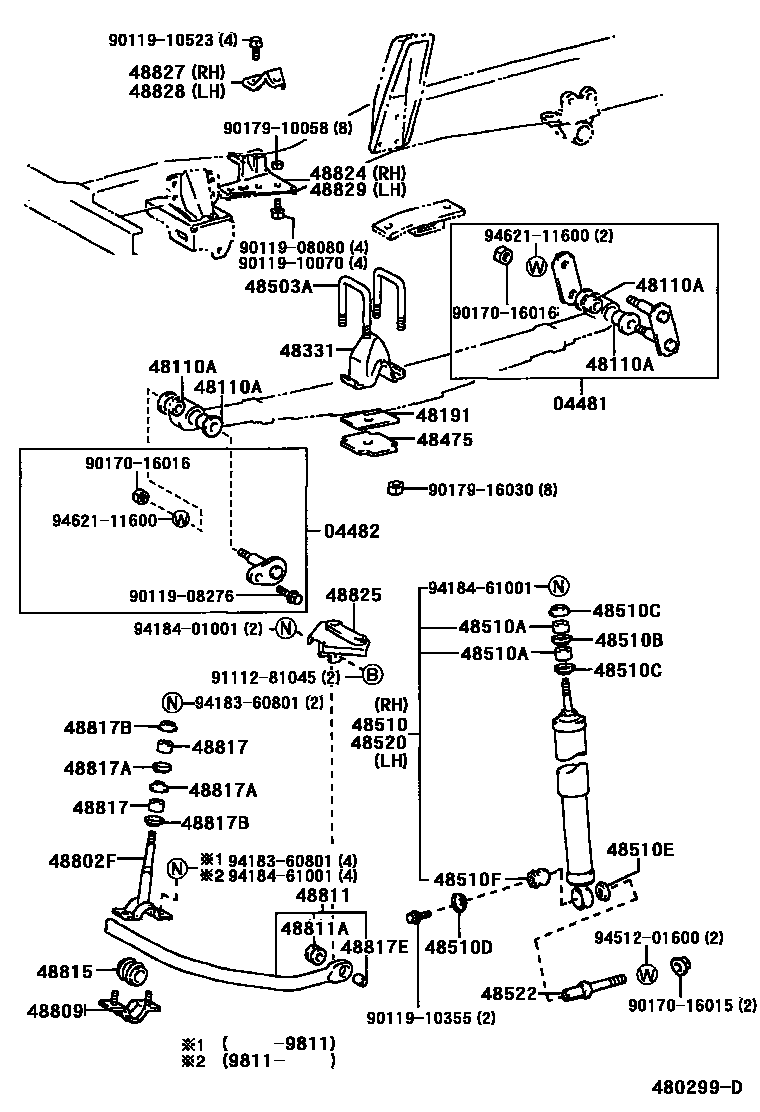

FRONT SPRING & SHOCK ABSORBER
04481SHACKLE KIT, FRONT SPRING
04482PIN KIT, FRONT SPRING
48110SPRING ASSY, FRONT, RH
48110ABUSH(FOR FRONT SPRING SHACKLE)
48191WEDGE, CASTER(FOR FRONT LEAF SPRING)
48331BUMPER, FRONT SPRING, NO.1
48475PLATE, DISTANCE(FOR FRONT)
48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48511-29386
sub48511-29486
48510ACUSHION, FRONT SHOCK ABSORBER
48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)
48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)
48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1
48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2
48510FCUSHION, SHOCK ABSORBER
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48511-29386
sub48511-29486
48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT
48802FLINK SUB-ASSY, FRONT STABILIZER
sub48802-36033
48809BRACKET SUB-ASSY, STABILIZER
48811BAR, STABILIZER, FRONT
48811ABUSH(FOR FRONT STABILIZER BAR)
48815BUSH, FRONT STABILIZER BAR, NO.1
48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)
48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)
48817ESPACER(FOR STABILIZER BAR)
48825BRACKET, STABILIZER, NO.2
9011908080
main90119-08080
9011908276
main90119-08276
9011910070
main90119-10070
9011910355
main90119-10355
9011910523
main90119-10523
9017016015
main90170-16015
9017016016
main90170-16016
9017910058
main90179-10058
9017916030
main90179-16030
9111281045
main91112-81045
9418360801
main94183-60801
9418401001
main94184-01001
9418461001
main94184-61001
9451201600
main94512-01600
9462111600
main94621-11600
46 parts on this diagram · 4 diagrams in section
