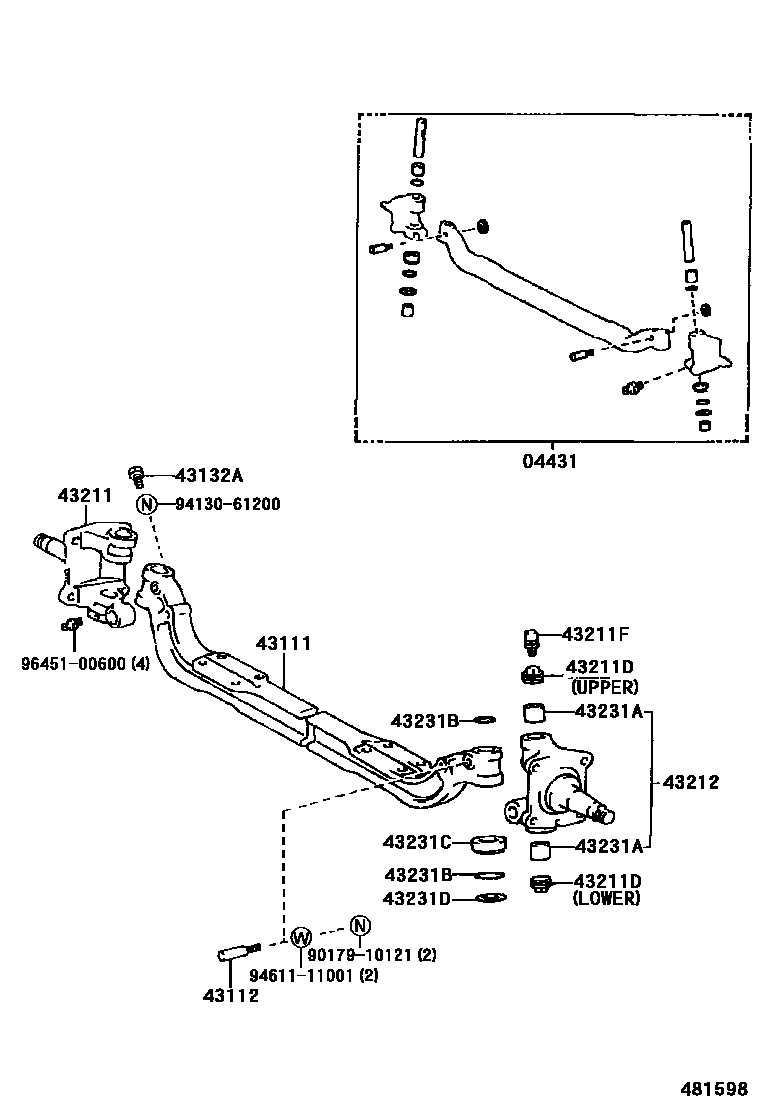

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1 0004 1

04431PIN KIT, STEERING KNUCKLE KING

main04431-36041iBU68,RZU68199505

43111I BEAM, FRONT AXLE

main43111-36141iBU68,RZU68199505

43112PIN, KING PIN LOCK

main43112-36020iBU68,RZU68199505

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-12001iBU68,RZU68199505

43211KNUCKLE, STEERING, RH

main43201-26030iLY15#199505

sub43201-26031

sub90304-76005

main43201-36090iBU68,RZU68199505

main43211-26051iLH8#199505

43211DPLUG (FOR STEERING KNUCKLE)

main90345-33003iBU68,RZU68199505

LOWER

main90345-33004iBU68,RZU68199505

UPPER

43211FPLUG, BLEEDER (FOR STEERING KNUCKLE)

main90930-03031iBU68,RZU68199505

43212KNUCKLE, STEERING, LH

main43202-26030iLY15#199505

sub43202-26031

sub90304-76005

main43202-36080iBU68,RZU68199505

main43212-26021iLH8#199505

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73086iBU68,RZU68199505

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main96711-19028iBU68,RZU68199505

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-28001iBU68,RZU68199505-199908

43231DSHIM (FOR KING PIN)

main90564-28128iBU68,RZU68199505

main90564-28129iBU68,RZU68199505

main90564-28130iBU68,RZU68199505

main90564-28131iBU68,RZU68199505

main90564-28144iBU68,RZU68199505

main90564-28145iBU68,RZU68199505

9017910121

main90179-10121

9413061200

main94130-61200

9461111001

main94611-11001

9645100600

main96451-00600

16 parts on this diagram · 4 diagrams in section
