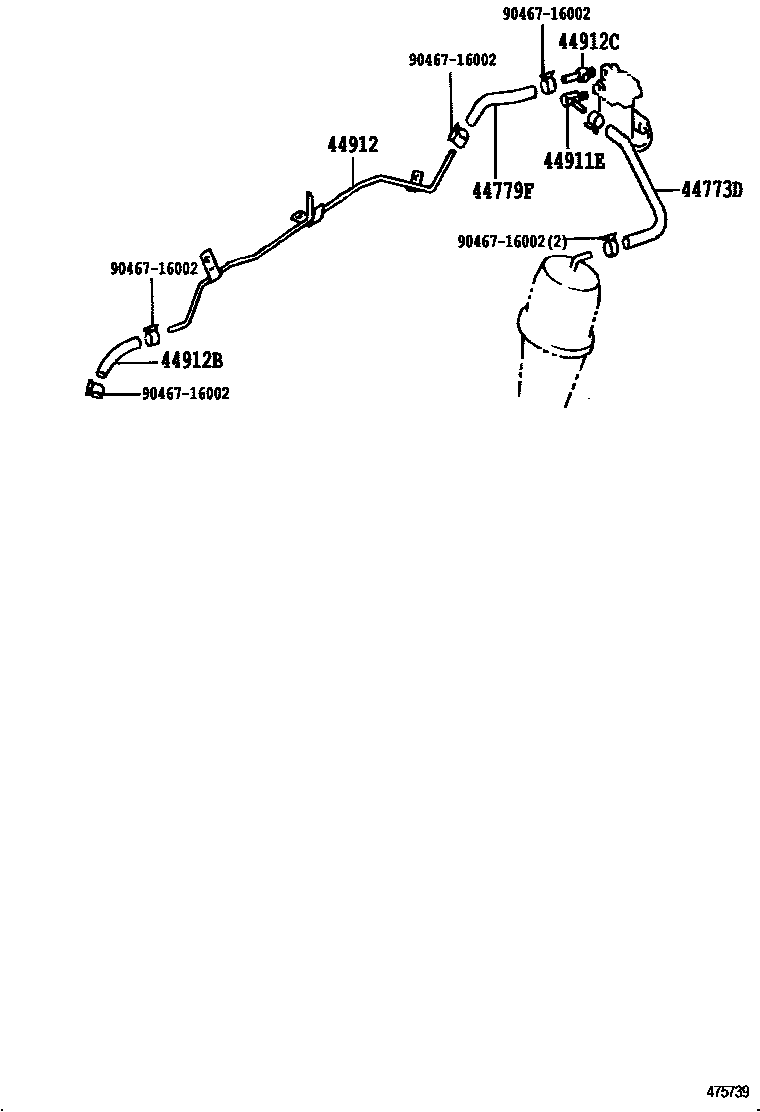

EXHAUST BRAKE TUBE & CLAMP

44773DHOSE, SOLENOIDO TO RETARDER

main44773-37020iBU68199505

44779FHOSE, CONNECTOR TUBE TO SOLENOID, NO.1

main95446-09180iBU68199505

44911EELBOW (FOR MAGNETIC VALVE TO VACUUM CYLINDER TUBE)

main90407-51002iBU68199505

44912TUBE, 3 WAY TO MAGNETIC VALVE

main44912-25030iBU68199505

44912BHOSE(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main95446-09110iBU68199505

44912CUNION(FOR 3 WAY TO MAGNETIC VALVE TUBE)

main90404-51319iBU68199505

9046716002

main90467-16002

7 parts on this diagram · 1 diagram in section
