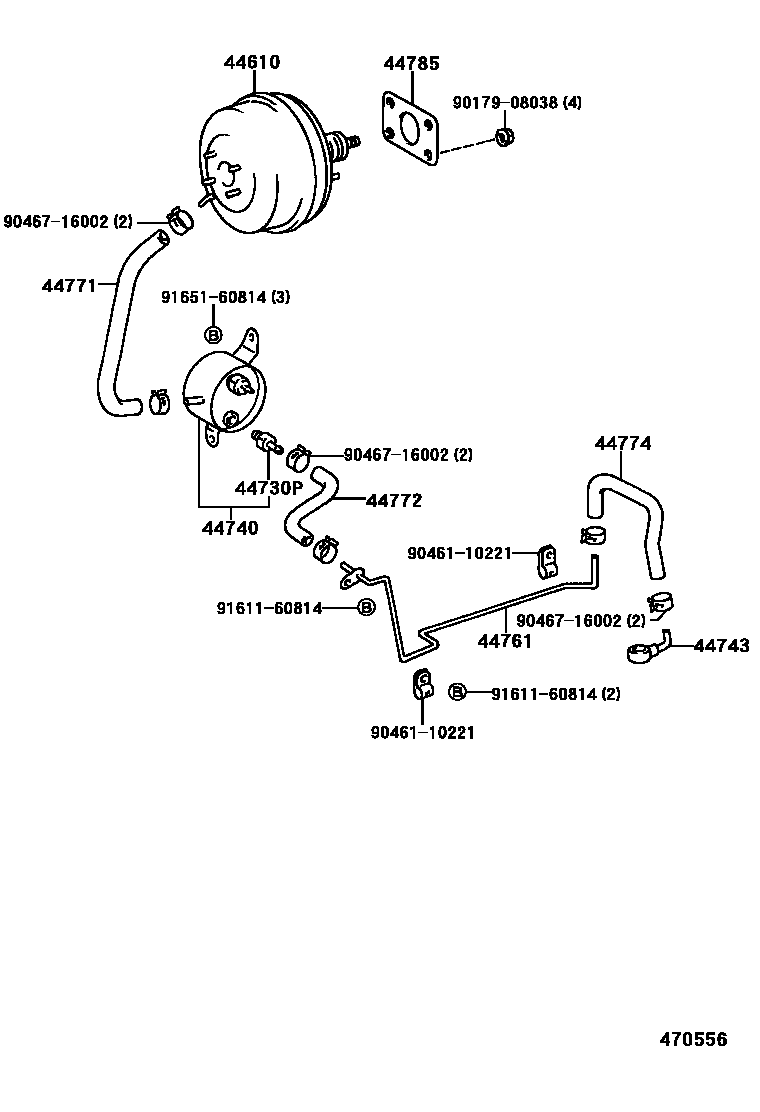

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

44610BOOSTER ASSY, BRAKE

main44610-26330iLH8#,LY15#199505

main44610-37050iRZU68199610

main44610-37080iBU68199505

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iRZU68199610

44730PVALVE ASSY, VACUUM CHECK, NO.1

main44730-60040iBU68199505

main44730-60050iLH8#,LY15#199505

44740RESERVOIR ASSY, VACUUM

main44740-26082iLH8#,LY15#199505

44743UNION(FOR VACUUM PUMP)

main90405-09071iLH8#,LY15#199505

main90405-09159iLH8#,LY15#199505

main90405-09164iBU68..N199505

main90405-09178iBU68..D199505

44761TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR

main44761-26131iLH8#,LY15#199505

44771HOSE, VACUUM TUBE CONNECTOR

main44771-26080iLH8#,LY15#199505

main44771-37020iRZU68199610

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-26070iLH8#,LY15#199505

main95444-09120iBU68199505-199809

sub95447-09120

main95447-09120iBU68199809

sub95447-09200

44774HOSE, UNION TO CONNECTOR TUBE

main44774-26130iLH8#199505

main44774-26170iLY15#199505

main44774-37010iBU68199505

44785GASKET, BRAKE BOOSTER

main44785-35020iLH8#,LY15#199505

9017908038

main90179-08038

9046110221

main90461-10221

9046716002

main90467-16002

9161160814

main91611-60814

9165160814

main91651-60814

15 parts on this diagram · 3 diagrams in section
