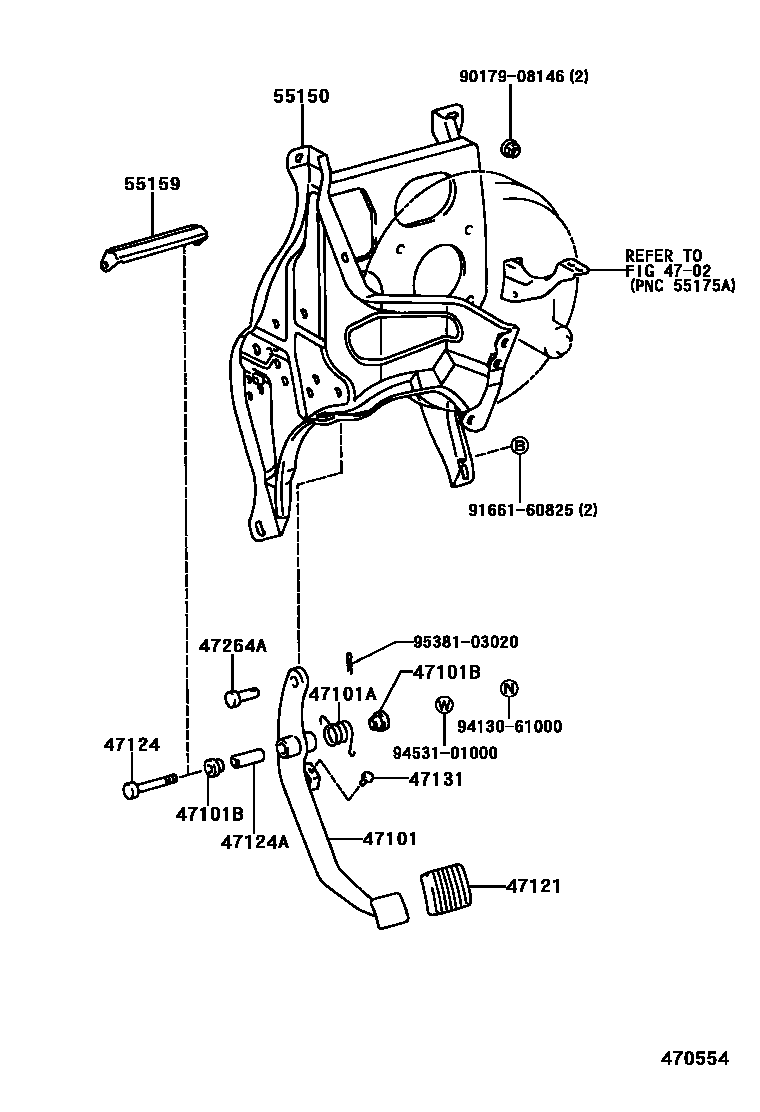

BRAKE PEDAL & BRACKET

0001 1 0002 1

4702

47101PEDAL SUB-ASSY, BRAKE

main47101-26130iLH8#..ATM199505

main47101-35150iLH8#,LY15#..MTM199505

main47101-37040iBU68,RZU68199505

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-16021iLH8#,LY15#199505

main90508-35324iBU68,RZU68199505

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iBU68,LH8#,LY15#,RZU68199505

47121PAD, BRAKE PEDAL

main31321-14010iLH8#,LY15#199810

main31321-14020iBU68,LH81,LY151,RZU68199505-199908

47124SHAFT, BRAKE PEDAL

main91112-61065iLH8#,LY15#199505

main91112-61070iBU68,RZU68199505

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iLH8#,LY15#199505

main90387-10004iBU68,RZU68199505

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iLH8#,LY15#..MTM199505

main90541-06036iBU68,RZU68199505

47264APIN(FOR PUSH ROD)

main90240-10015iBU68,RZU68199505

main90249-10048iLH8#,LY15#199505

55150BRACKET ASSY, PEDAL

main55150-25010iBU68,RZU68199505

55159STAY, PEDAL BRACKET

main55159-25010iBU68,RZU68199505

9017908146

main90179-08146

9166160825

main91661-60825

9413061000

main94130-61000

9453101000

main94531-01000

9538103020

main95381-03020

16 parts on this diagram · 2 diagrams in section
