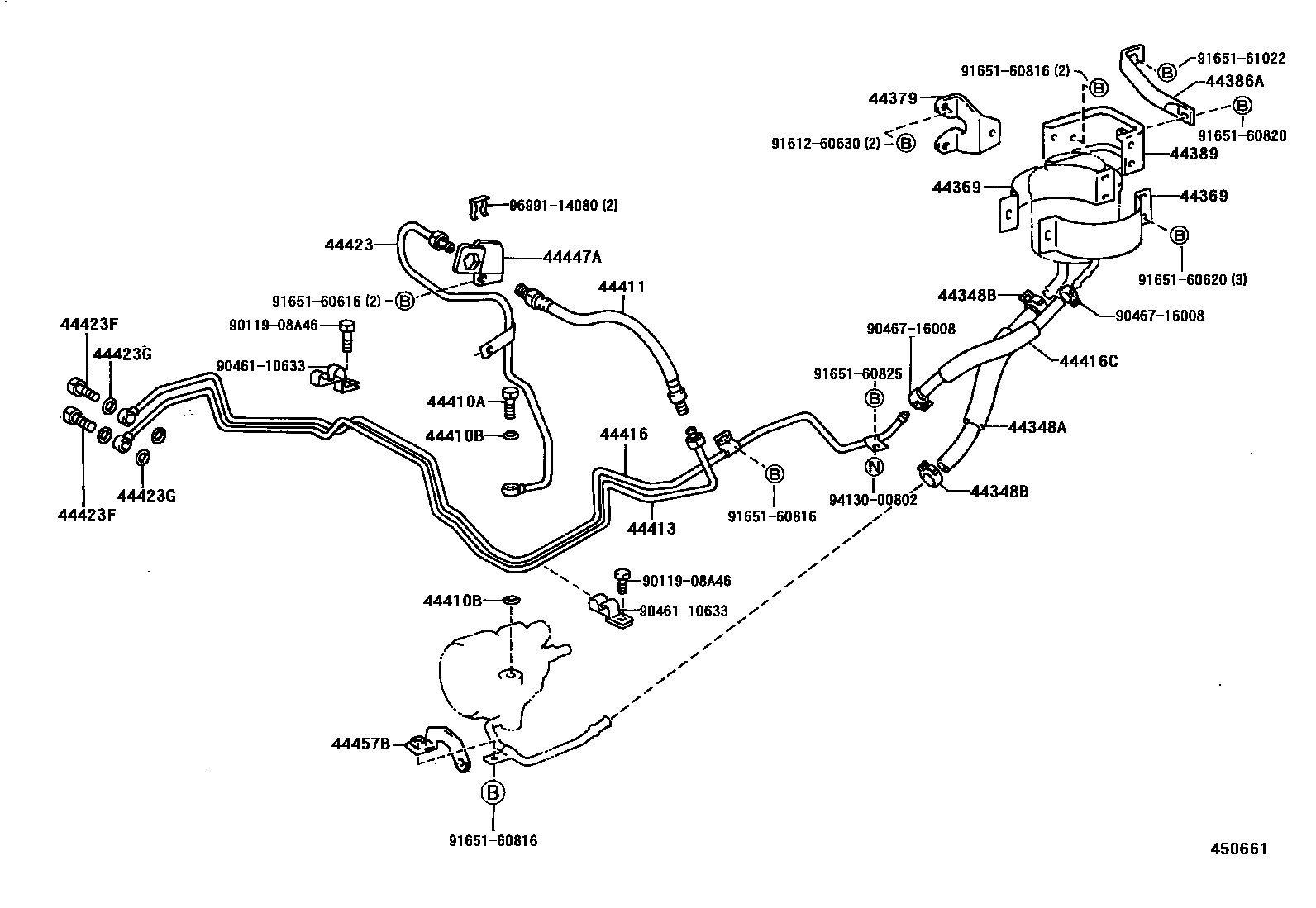

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-26060iLH8#199505

sub44348-26061

main44348-26110iLY15#199505

sub44348-26111

main44348-36210iBU68199505

sub44348-36211

main44348-37020iRZU68199610

sub44348-37021

44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)

main90467-21005×2iBU68199505

sub90467-21010

44369BRACKET, OIL RESERVOIR, NO.1

main44369-36020×2iBU68199505

44379BRACKET, OIL RESERVOIR, NO.2

main44379-37020iBU68199505

44386ASUPPORT, OIL RESERVOIR

main44386-36100iBU68199505

44389BRACKET, OIL RESERVOIR, NO.3

main44389-36060iBU68199505

44410TUBE ASSY, PRESSURE FEED

main44410-25070iLH8#199505

main44410-25090iLY15#199505

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16027iBU68199505

44410BGASKET(FOR PRESSURE FEED TUBE)

main90430-16168×2iBU68199505

44411HOSE, PRESSURE FEED

main44411-26021iLH8#199505

main44411-26070iLY15#199505

main44411-37030iBU68199505

sub44411-37031

main44411-37040iRZU68199610

44413TUBE, PRESSURE FEED, NO.1

main44413-25070iBU68,RZU68199505

main44413-25080iLY15#199505

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44406-25010iLY15#199505

main44416-25050iRZU68199610

main44416-25070iBU68199505

44416CHOSE(FOR RETURN TUBE TO RESERVIOR)

main90445-18144iBU68199505

main90447-18028iRZU68199610

44423TUBE, OIL PUMP TO GEAR BOX

main44423-37040iBU68199505-199601

main44423-37041iBU68199601

44423FBOLT, UNION

main90401-14003×2iBU68,RZU68199505

44423GGASKET, UNION BOLT

main90430-14235×4iBU68,RZU68199505

44447ABRACKET, HOSE SUPPORT, NO.1

main44447-37030iBU68199505

44457BBRACKET, POWER STEERING TUBE SUPPORT, NO.2

main44457-36040iBU68199505

9011908A46

main90119-08A46

9046110633

main90461-10633

9046716008

main90467-16008

9161260630

main91612-60630

9165160616

main91651-60616

9165160620

main91651-60620

9165160816

main91651-60816

9165160820

main91651-60820

9165160825

main91651-60825

9165161022

main91651-61022

9413000802

main94130-00802

9699114080

main96991-14080

30 parts on this diagram · 4 diagrams in section
