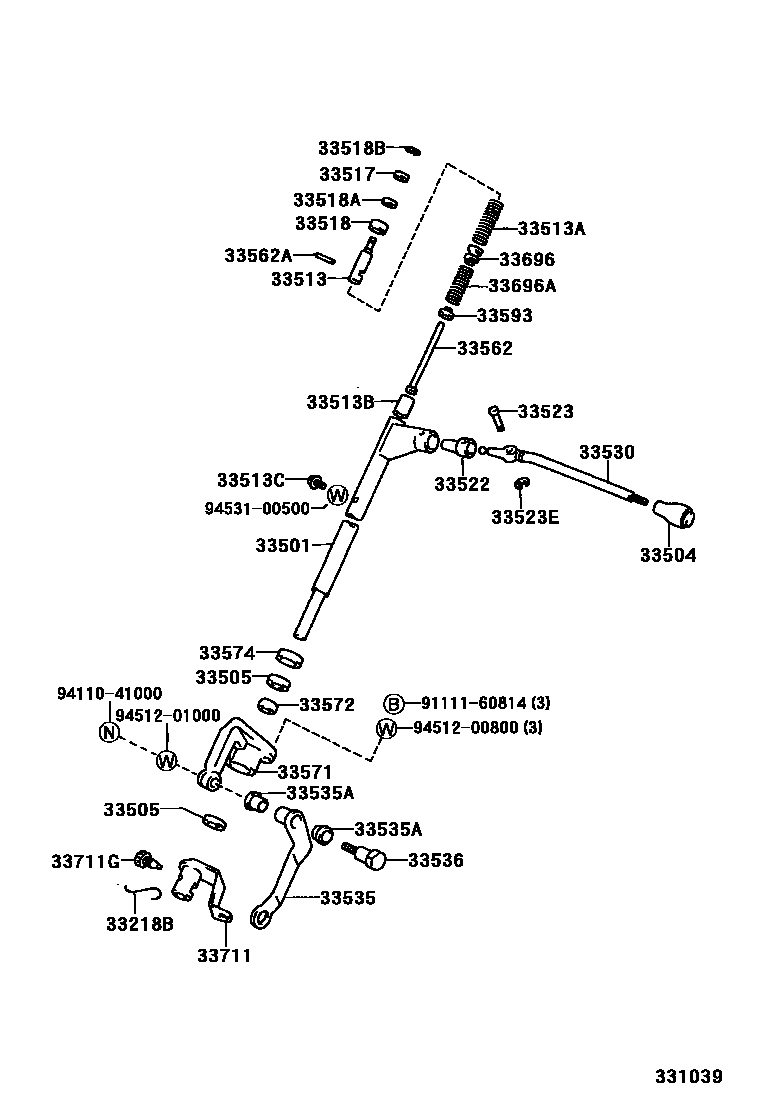

CONTROL SHAFT & CROSSSHAFT
33218BOLT, SHIFT LEVER LOCK
33218BWIRE(FOR SHIFT LEVER LOCK BOLT)
33501SHAFT SUB-ASSY, CONTROL (FOR COLUMN SHIFT)
33504KNOB SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)
33505SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR COLUMN SHIFT)
33513SHAFT, CONTROL SHAFT BRACKET, UPPER
33513ASPRING, COMPRESSION (FOR BRACKET UPPER SHAFT)
33513BSPACER (FOR CONTROL SHAFT BRACKET UPPER SHAFT)
33513CBOLT (FOR CONTROL SHAFT BRACKET UPPER SHAFT)
33517RETAINER, CONTROL SHAFT UPPER SPRING
33518BUSH, UPPER CONTROL SHAFT PIECE
33518AWASHER, PLATE (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518BRING, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522SEAT, SHIFT LEVER PLATE (FOR COLUMN SHIFT)
33523PIN, SHIFT LEVER (FOR COLUMN SHIFT)
33523ERING, E (FOR SHIFT LEVER PIN)
33530LEVER ASSY, SHIFT (FOR COLUMN SHIFT)
33535LEVER, CONTROL SELECT (FOR COLUMN SHIFT)
33535ABUSH (FOR CONTROL SELECT LEVER)
33536SHAFT, CONTROL SELECT LEVER (FOR COLUMN SHIFT)
33562STOPPER, CONTROL SHAFT UPPER BRACKET SHAFT
33562APIN (FOR CONTROL SHAFT UPPER BRACKET SHAFT STOPPER)
33571BRACKET, CONTROL SHAFT, LOWER (FOR COLUMN SHIFT)
33572BUSH, CONTROL SHAFT LOWER (FOR COLUMN SHIFT)
33574RETAINER, DUST SEAL (FOR COLUMN SHIFT CONTROL SHAFT)
33593HOLDER, SPRING (FOR SELECT LEVER)
33696SEAT, SELECT SPRING
33711LEVER, CONTROL SHAFT (FOR COLUMN SHIFT)
33711GBOLT, CONTROL SHAFT LEVER LOCK
9111160814
main91111-60814
9411041000
main94110-41000
9451200800
main94512-00800
9451201000
main94512-01000
9453100500
main94531-00500
35 parts on this diagram · 7 diagrams in section
