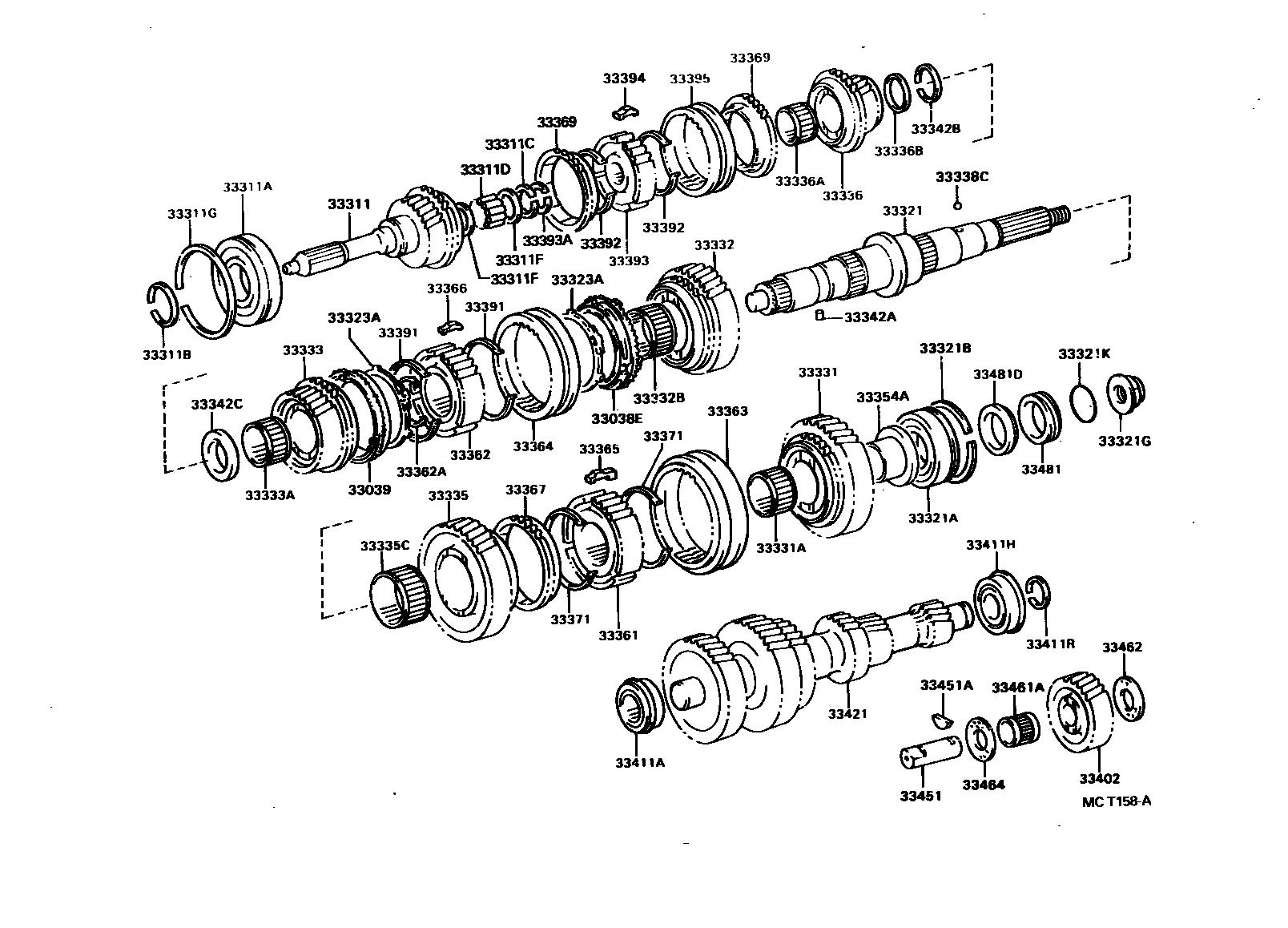

TRANSMISSION GEAR (MTM)
33038ERING SET, SYNCHRONIZER, NO.2
33039RING SET, SYNCHRONIZER, NO.3
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
33311CRING, HOLE SNAP (FOR NEEDLE ROLLER)
33311DBEARING, INPUT SHAFT
33311FSPACER (FOR INPUT SHAFT)
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321KRING, O(FOR MANUAL TRANSMISSON OUTPUT SHAFT REAR SET NUT)
33323ASPACER, SYNCHRONIZER RING
33331ABEARING (FOR REVERSE GEAR)
33332GEAR, 2ND
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33336GEAR, 5TH
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33338CBALL, REVERSE SHIFT RESTRICT
33342APIN, STRAIGHT (FOR GEAR THRUST WASHER)
33342BRING, SHAFT SNAP (FOR GEAR THRUST WASHER)
33342CWASHER, 3RD GEAR THRUST
33354ARACE, REVERSE GEAR BEARING, INNER
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33363SLEEVE, TRANSMISSION HUB, NO.1
33364SLEEVE, TRANSMISSION HUB, NO.2
33367RING, SYNCHRONIZER, NO.1
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33394KEY, SYNCHROMESH SHIFTING, NO.3
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411HBEARING OR ROLLER(FOR COUNTER GEAR REAR)
33411RRING, SNAP, COUNTER GEAR REAR BEARING
33451AKEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT)
33461ABEARING, REVERSE IDLER GEAR
33462WASHER, REVERSE IDLER THRUST
33464WASHER, REVERSE IDLER THRUST, NO.2
33481DSPACER (FOR SPEEDOMETER DRIVE GEAR)
59 parts on this diagram · 4 diagrams in section
