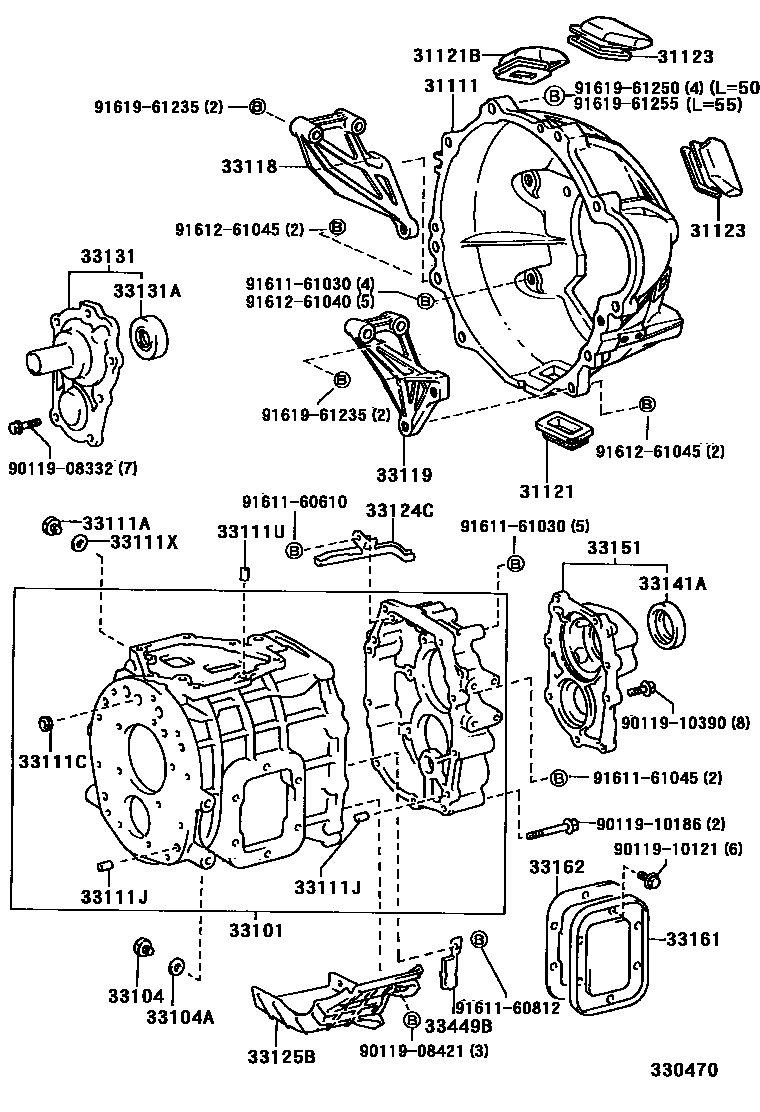

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1M153 0002 1G54 0003 1R351F 0004 1M153

31111HOUSING, CLUTCH

main31111-22114iLH8#..MTM199505-200108

main31111-26020iLY15#199505-200108

main31111-36310iBU68199505-199908

main31111-36331iRZU68199610-199908

31121COVER, CLUTCH HOUSING, NO.1

main31121-36040iBU68,RZU68199505

sub31121-36110

31121BCOVER, CLUTCH HOUSING, NO.3

main31121-28030iBU68199505

31123COVER, CLUTCH HOUSING, NO.2

main31121-28041iBU68,RZU68199505

33101CASE SUB-ASSY, MANUAL TRANSMISSION

main33101-36082iBU68,RZU68199505-199808

main33101-36083iBU68,RZU68199808

sub33101-36084

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iBU68,LY15#,RZU68199505-200108

main90341-18032iLH8#..MTM199806-200108

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iBU68,LH8#,LY15#,RZU68..MTM199505-200108

33111CASE, MANUAL TRANSMISSION

main33101-26040iLY15#199505-200108

sub33101-26041

main33101-28020iLH81..MTM199505-199806

sub33101-35060

sub90341-18032

main33101-35060iLH8#..MTM199806-200108

sub33101-26060

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18006iBU68,LH8#,LY15#,RZU68..MTM199505-200108

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iLH8#..MTM199505-200108

main96411-11600iBU68,RZU68199505-199908

main96411-41800iLY15#199505-200108

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002iLY15#199505-200108

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iBU68,RZU68199505-200108

main90253-13017iBU68,RZU68199505-199908

main90253-15001iLH8#..MTM199505-200108

33111XGASKET, TRANSMISSION CASE PLUG

main90430-18008iBU68,LH8#,LY15#,RZU68..MTM199505-200108

33118PLATE, STIFFENER, RH(MTM)

main33118-25020iLH8#,LY15#..MTM199505

main33118-36021iBU68199505

main33118-37030iRZU68199610

33119PLATE, STIFFENER, LH(MTM)

main33119-25020iLH8#..MTM199505

main33119-25060iLY15#199805

main33119-26010iLY151199505-199805

sub33119-25060

main33119-26021iRZU68199610

main33119-36042iBU68199505

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-36030iBU68,RZU68199505

33125BRECEIVER, MANUAL TRANSMISSION CASE

main33125-36020iBU68,RZU68199505

33131RETAINER, BEARING, FRONT(MTM)

main33018-36060iBU68,RZU68199505-199908

main33131-26020iLH8#..MTM199505-200108

main33131-35031iLY15#199505-200108

sub33131-35032

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iLH8#..MTM199505-200108

main90311-32012iBU68,LY15#,RZU68199505-200108

33141ASEAL, OIL(FOR TRANSMISSION REAR BEARING RETAINER)

main90311-48011iBU68,RZU68199505

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33017-36031iBU68,RZU68199505-199908

main33151-35020iLY15#199505-200108

main33151-35030iLH8#..MTM199505-200108

33161COVER, MANUAL TRANSMISSION POWER TAKE-OFF

main33161-36010iBU68,RZU68199505

33162GASKET, MANUAL TRANSMISSION POWER TAKE-OFF COVER

main33162-36020iBU68,RZU68199505

33449BMAGNET, TRANSMISSION

main33449-26010iLH8#..MTM199806-200108

main33449-35030iLY15#199505-200108

main33449-36010iBU68,RZU68199505-199908

9011908332

main90119-08332

9011908421

main90119-08421

9011910121

main90119-10121

9011910186

main90119-10186

9011910390

main90119-10390

9161160610

main91611-60610

9161160812

main91611-60812

9161161030

main91611-61030

9161161045

main91611-61045

9161261040

main91612-61040

9161261045

main91612-61045

9161961235

main91619-61235

9161961250

main91619-61250

9161961255

main91619-61255

38 parts on this diagram · 4 diagrams in section
