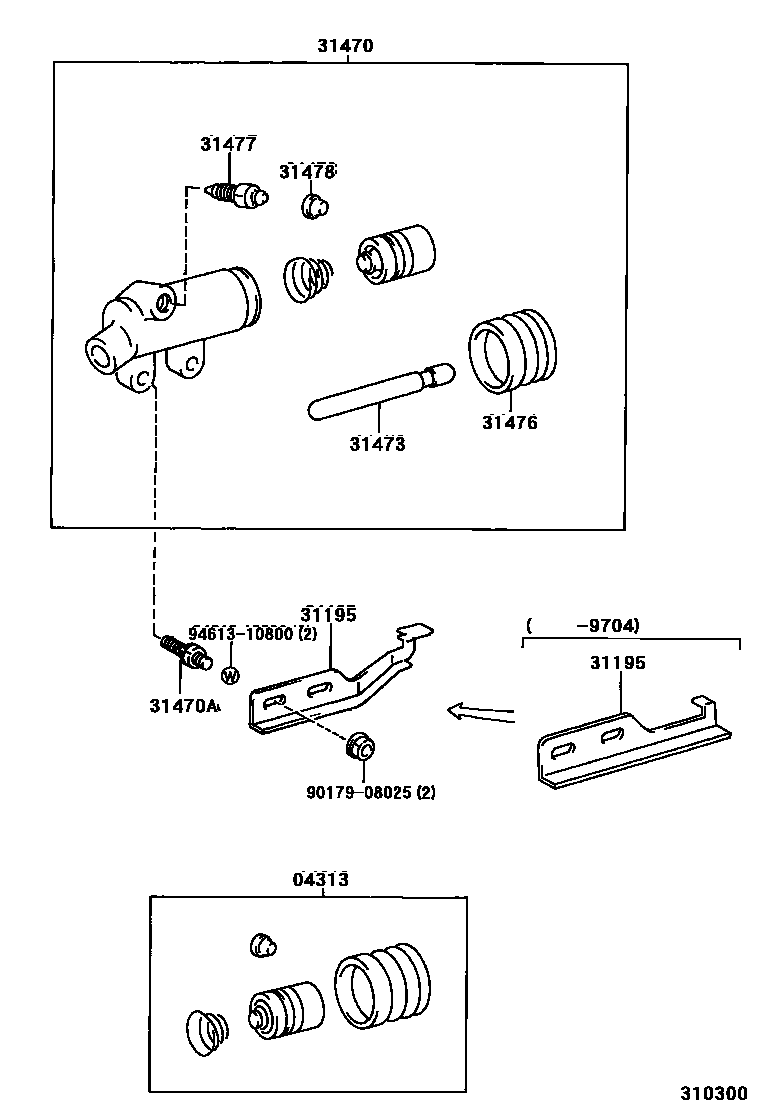

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iLH8#,LY15#..MTM199505-200108

main04313-30130iRZU68199610-199908

main04313-36150iBU68199505-199908

31195PLATE, CLUTCH DISC WEAR INDICATOR

main31195-37020iBU68199505-199704

main31195-37030iRZU68199610-199704

main31195-37050iBU68199704-199908

main31195-37060iRZU68199704

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-30222iLH8#..MTM199505-200108

main31470-35110iLY15#199505-200108

main31470-36213iBU68199505-199908

main31470-36310iRZU68199610-199908

sub31470-36311

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iBU68,RZU68199505-199908

main91611-60820iLY15#199505-200106

sub91611-G0820

main91611-60825iLH8#..MTM199505-200108

sub91611-B0825

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iBU68199505-199908

main31473-32010iRZU68199610-199908

main31473-35050iLH8#,LY15#..MTM199505-200108

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iBU68,LH8#,LY15#,RZU68..MTM199505-200108

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iBU68,LH8#,LY15#,RZU68..MTM199505-200108

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iBU68,LH8#,LY15#,RZU68..MTM199505-200108

9017908025

main90179-08025

9461310800

main94613-10800

10 parts on this diagram · 2 diagrams in section
