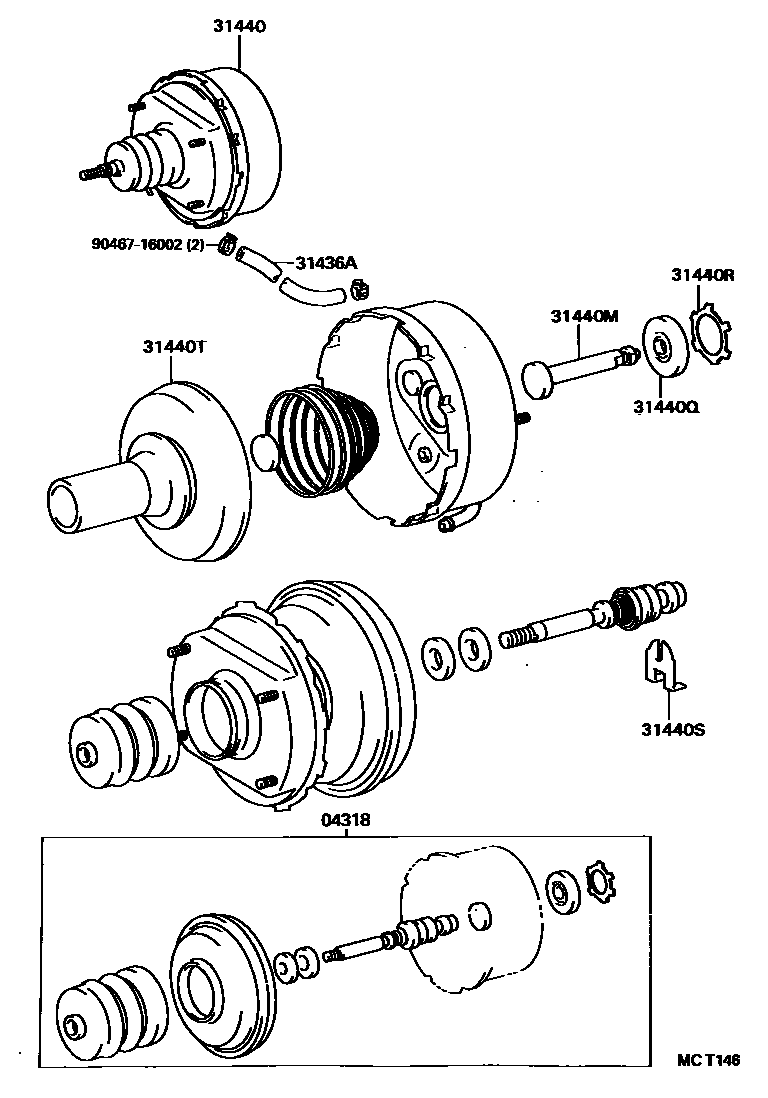

CLUTCH BOOSTER

0001 1 0002 1

04318BOOSTER KIT, CLUTCH

main04318-36040iBU68,RZU68199505

31436AHOSE, NO.1(FOR CLUTCH BOOSTER VACUUM)

main31436-25010iBU68199505

main95444-09120iRZU68199610-199803

main95447-09120iRZU68199803

sub95447-09200

31440BOOSTER ASSY, CLUTCH W/AIR CLEANER

main31440-37020iBU68,RZU68199505

31440MROD SUB-ASSY, CLUTCH BOOSTER PISTON

main44606-12520iBU68,RZU68199505

31440QGASKET, BRAKE BOOSTER BRACKET

main44621-28120iBU68,RZU68199505

31440RRING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)

main44628-28120iBU68,RZU68199505

31440SKEY, VALVE STOPPER(FOR CLUTCH BOOSTER)

main44635-36010iBU68,RZU68199505

31440TPISTON, BOOSTER(FOR CLUTCH BOOSTER)

main44642-10070iBU68,RZU68199505

9046716002

main90467-16002

9 parts on this diagram · 2 diagrams in section
