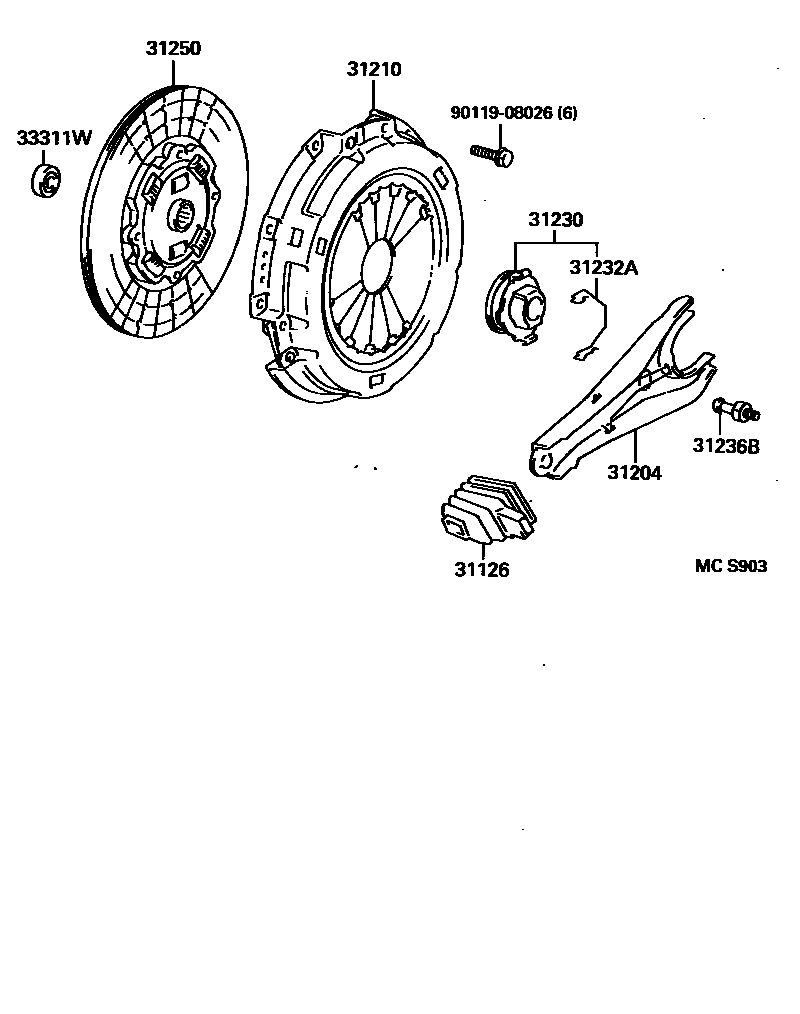

CLUTCH & RELEASE FORK

0001 1 0002 1

31126BOOT, CLUTCH RELEASE FORK

main31126-20070iLH8#..MTM199505-200108

main31126-34010iLY15#199505-200108

main31126-36080iBU68,RZU68199505-199908

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-20071iRZU68199610-199908

main31204-35031iBU68,LY15#199505-199908

main31204-35050iLH8#..MTM199505-200108

31210COVER ASSY, CLUTCH

main31210-35121iLH8#,LY15#..MTM199505-200102

main31210-35122iLH82,LY152..MTM200102

sub31210-26160

main31210-36160iBU68199505-199908

sub31210-36161

main31210-37050iRZU68199610-199908

sub31210-36300

31230BEARING ASSY, CLUTCH RELEASE

main31230-35060iLH8#,LY15#..MTM199505-200108

sub31230-35061

main31230-35070iRZU68199610-199908

sub31230-35071

main31230-36150iBU68199505-199908

sub31230-36151

31232ACLIP, RELEASE BEARING HUB

main31232-35020iLH8#,LY15#,RZU68..MTM199505-200108

main31232-35030iLH8#,LY15#,RZU68..MTM199505-200108

main31232-36010iBU68199505-199908

31236BSUPPORT, RELEASE FORK

main31236-30060iLH81,RZU68..MTM199505-199705

main31236-35030iLY152199908-200108

main31236-37020iRZU68199705-199908

31250DISC ASSY, CLUTCH

main31250-25141iLY151199505-199703

main31250-25142iLY15#199703-200012

sub31250-25144

main31250-25143iLY152200012

sub31250-25144

main31250-26180iLH81..MTM199505-199612

main31250-26181iLH8#..MTM199612-200012

main31250-26182iLH82..MTM200012

main31250-35400iRZU68199708-199908

sub31250-26230

main31250-37050iBU68199505-199611

main31250-37060iRZU68199610-199708

main31250-37070iBU68199611-199908

sub31250-37071

33311WBEARING (FOR INPUT SHAFT)

main90363-12002iBU68,LH81,LY151,RZU68..MTM199505-199904

sub90363-12024

main90363-12018iBU68199904

9011908026

main90119-08026

9 parts on this diagram · 2 diagrams in section
