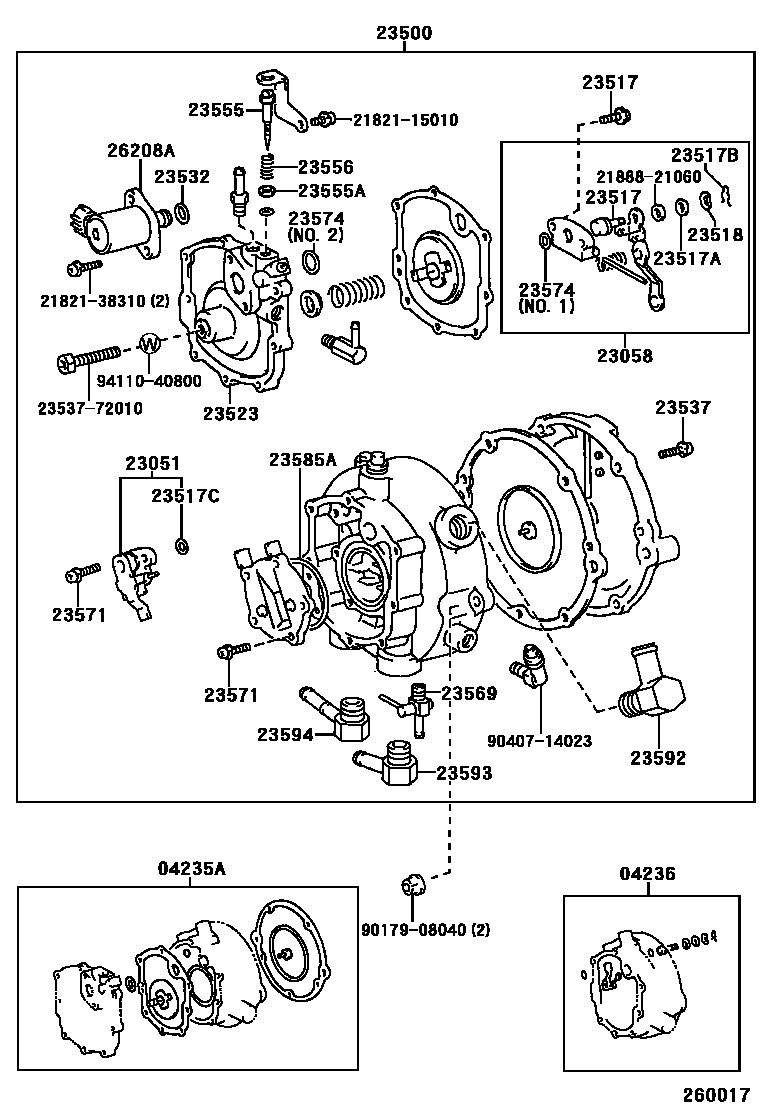

LPG OR CNG REGULATOR

04235ADIAPHRAGM KIT, LPG REGULATOR, W/O VALVE

main04235-75010i3RZFP..RZU68199610

04236VALVE KIT, LPG REGULATOR

main04236-75020×2i3RZFP..RZU68199610

23051VALVE SUB-ASSY, 1ST

main23051-72010i3RZFP..RZU68199610

23058VALVE SUB-ASSY, 2ND

main23058-48010i3RZFP..RZU68199811

main23058-75010i3RZFP..RZU68199610-199811

23500REGULATOR ASSY, LPG(CNG)

main23500-75010i3RZFP..RZU68199610

main23500-75020i3RZFP..RZU68199610

23517VALVE, ELASTIC FACE

main23517-75010i3RZFP..RZU68199610

23517AWASHER(FOR ELASTIC FACE VALVE SET)

main21535-10010i3RZFP..RZU68199610

23517BRING, SNAP(FOR ELASTIC FACE VALVE SET)

main21792-69210i3RZFP..RZU68199610-199811

main90079-63001i3RZFP..RZU68199811

23517CGASKET(FOR ELASTIC FACE VALVE)

main23532-44020i3RZFP..RZU68199610

23518WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-40010i3RZFP..RZU68199610

23523COVER, 1ST REGULATOR

main23523-70040i3RZFP..RZU68199809

main23523-73130i3RZFP..RZU68199610-199809

23532RING, O, NO.2(FOR BULB)

main23532-40010i3RZFP..RZU68199610

23537SCREW(FOR 2ND REGULATOR COVER SET)

main21821-31140×15i3RZFP..RZU68199610

23555SCREW, IDLE ADJUST

main23555-73130i3RZFP..RZU68199610

sub23555-48050

23555AWASHER, IDLE ADJUST SCREW

main21885-26040i3RZFP..RZU68199610

23556SPRING, IDLE ADJUST SCREW

main21723-21030i3RZFP..RZU68199610

23569COCK, DRAIN

main23569-40010i3RZFP..RZU68199610

23571SCREW(FOR VACUUM LOCK DIAPHRAGM RING SET)

main23571-72010×9i3RZFP..RZU68199610

23574RING, O, NO.1(FOR BULB)

main23574-44021i3RZFP..RZU68199610

main23574-72010i3RZFP..RZU68199610

23585ARING, O(FOR PREHEATER)

main23585-75010i3RZFP..RZU68199610

23592UNION, NO.2, FUEL HOSE

main23592-75010i3RZFP..RZU68199610

23593UNION, NO.3

main23593-75010i3RZFP..RZU68199610

23594UNION, NO.4, WATER HOSE

main23594-75010i3RZFP..RZU68199610

26208AVALVE SUB-ASSY, SOLENOID(FOR LPG REGULATOR)

main26206-73130i3RZFP..RZU68199610

sub26208-73131

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2182138310SCREW, 2ND THROTTLE VALVE SET

main21821-38310

2188821060WASHER(FOR POSITIONER VALVE SET)

main21888-21060

2353772010SCREW(FOR 2ND REGULATOR COVER SET)

main23537-72010

9017908040

main90179-08040

9040714023

main90407-14023

9411040800

main94110-40800

31 parts on this diagram · 1 diagram in section
