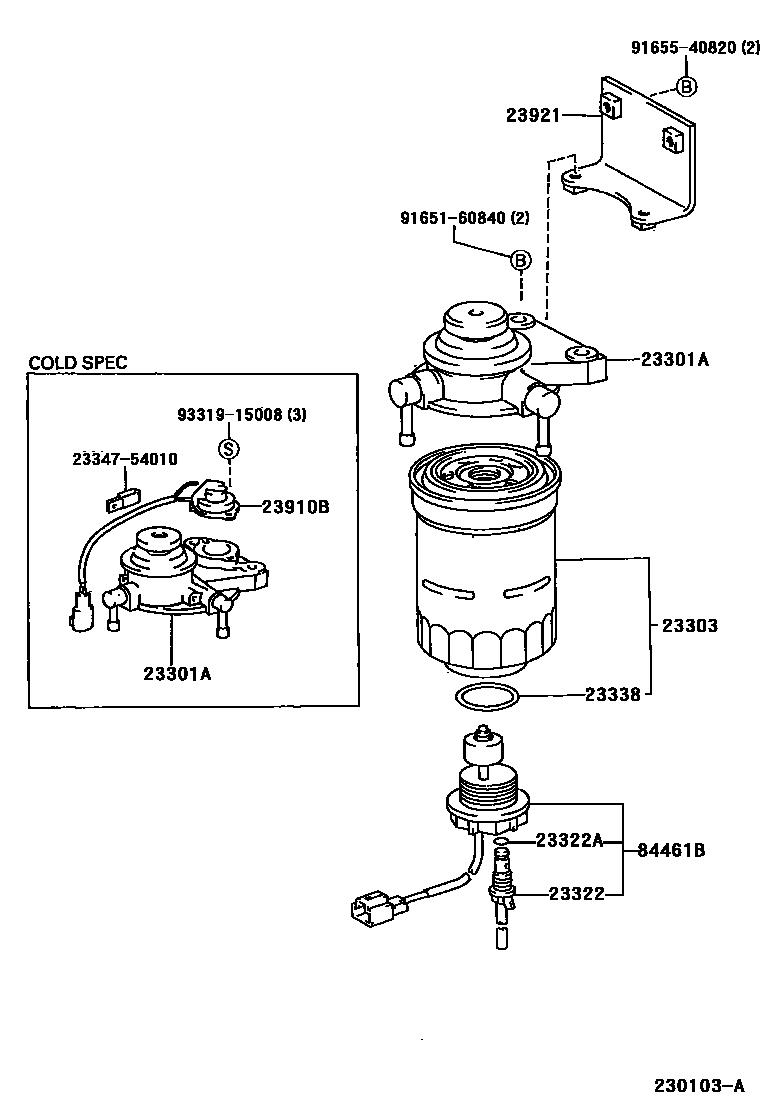

FUEL FILTER

0001 1 0002 1

23301ACAP ASSY, FUEL FILTER

main23301-54090i3L,5L..LH8#,LY15#199505

main23301-54450i3L,5L..LH8#,LY15#199505

main23301-56360i3B..BU68199505

main23301-56370i3B..BU68199505

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i3L,5L..LH8#,LY15#199505

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010i3L,5L..LH8#,LY15#199505

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i3L,5L..LH8#,LY15#199505

23338GASKET(FOR WARNING SWITCH)

main23344-64010i3L,5L..LH8#,LY15#199505

23910BHEATER ASSY, FUEL

main23910-17030i3B..BU68199505

main23910-54050i3L,5L..LH8#,LY15#199505

23921SUPPORT, FUEL FILTER

main23921-54380i3L,5L..LH8#,LY15#199505

main23921-56020i3B..BU68199505

84461BSWITCH, LEVEL WARNING

main84461-26060iLH8#,LY15#199505

2334754010CLIP, CORD

main23347-54010

9165160840

main91651-60840

9165540820

main91655-40820

9331915008

main93319-15008

12 parts on this diagram · 2 diagrams in section
