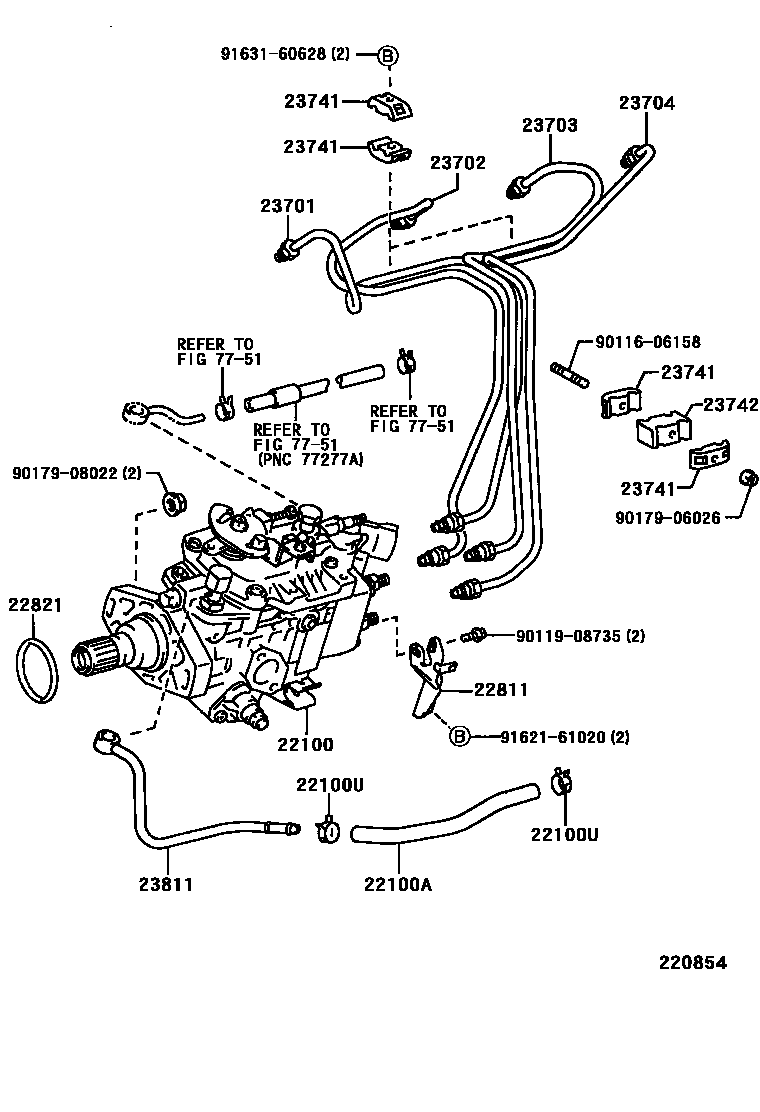

INJECTION PUMP ASSEMBLY

0001 1 0002 1

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-5B400i3L..LH81,LY151..MTM199505-199905

main22100-5B410i3L..LH81..ATM199505-199905

main22100-5C150i3B..BU68199505-199610

main22100-5C400i3B..BU68199610

main22100-5D040i5L..LH82,LY152..MTM199905

main22100-5D100i5L..LH82..ATM199905

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23271-58030i3B..BU68199505

main90447-14060i3L,5L..LH8#,LY15#199505

22100UCLIP, HOSE FUEL(FOR INJECTION PUMP)

main96132-41500i3B..BU68199905

main96134-41500i3B..BU68199505-199905

sub96134-51500

22811STAY, INJECTION PUMP, NO.1

main22811-54041i3L..LH81,LY151199505-199804

sub22811-54042

main22811-54042i3L,5L..LH8#,LY15#199804

main22811-58030i3B..BU68199505

sub22811-58031

22821GASKET, INJECTION PUMP

main90301-49003i3B..BU68199505

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-54140i3L,5L..LH8#,LY15#199505

main23701-58011i3B..BU68199505

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-54140i3L,5L..LH8#,LY15#199505

main23702-58011i3B..BU68199505

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-54100i3L,5L..LH8#,LY15#199505

main23703-58011i3B..BU68199505

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-54100i3L,5L..LH8#,LY15#199505

main23704-58011i3B..BU68199505

23741CLAMP, INJECTION PIPE, NO.1

main23741-54010i3L..LH81,LY151199505-199607

main23741-54030i3L,5L..LH8#,LY15#199607

main23741-58010i3B..BU68199505

23742CLAMP, INJECTION PIPE, NO.2

main23741-56020i3B..BU68199505-199605

sub23741-56021

main23741-56021i3B..BU68199605

main23742-54010i3L..LH81,LY151199505-199607

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-54160i3L,5L..LH8#,LY15#199505

main23811-58010i3B..BU68199505

7751

9011606158

main90116-06158

9011908735

main90119-08735

9017906026

main90179-06026

9017908022

main90179-08022

9162161020

main91621-61020

9163160628

main91631-60628

19 parts on this diagram · 2 diagrams in section
