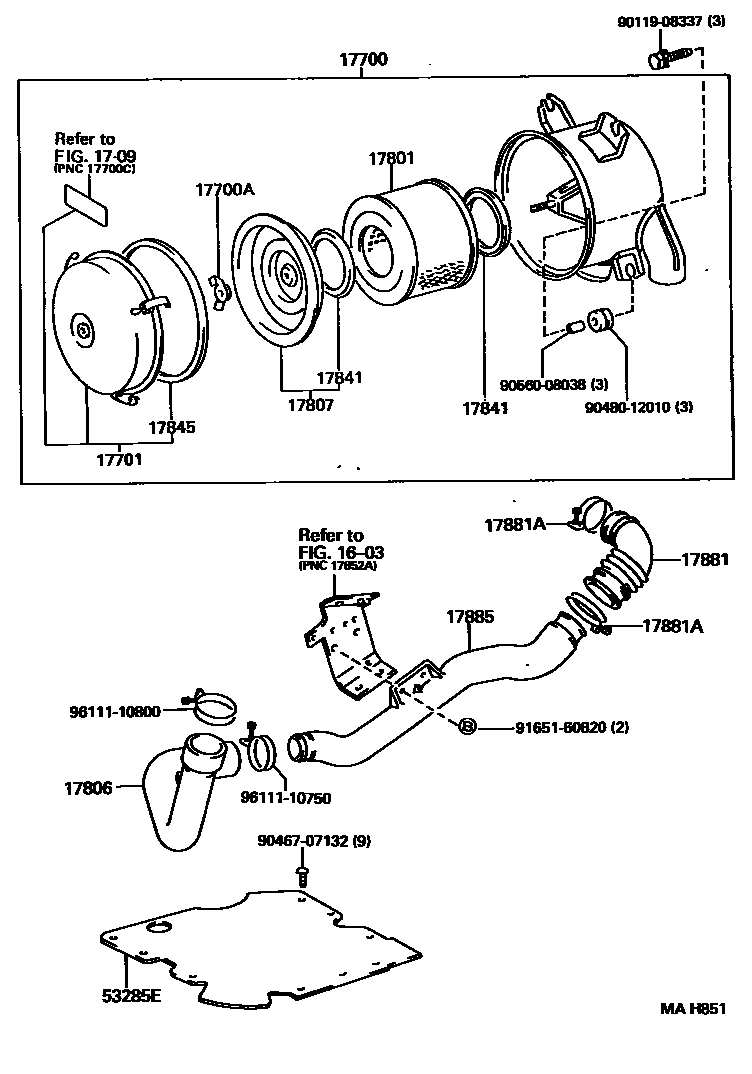

AIR CLEANER

0001 1 0002 1 0004 1

1603

1709

17700CLEANER ASSY, AIR

main17700-54410i3L,5L..LH8#,LY15#199505

main17700-75210i3RZFP..RZU68199610

17700ANUT, WING(FOR AIR CLEANER)

main90175-08008i3L,5L..LH8#,LY15#199505

17701CASE SUB-ASSY, AIR CLEANER

main17701-54210i3L,5L..LH8#,LY15#199505

main17701-75120i3RZFP..RZU68199610

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-56020i3L,5L..LH8#,LY15#199505

main17801-56050i3B..BU68199505

TNF TYPE

main17801-73020i3RZFP..RZU68199610

17806PIPE SUB-ASSY, AIR CLEANER, NO.2

main17886-58070i3B..BU68199505

17807PLATE SUB-ASSY, AIR CLEANER FILTER SET

main17807-56011i3L,5L..LH8#,LY15#199505

main17807-58020i3RZFP..RZU68199610

17841GASKET, FILTER ELEMENT

main17841-44030×2i3L,5L..LH8#,LY15#199505

main17841-68010i3RZFP..RZU68199610

main17841-73010i3RZFP..RZU68199610

17845GASKET, AIR CLEANER CAP

main17845-56020i3L,5L..LH8#,LY15#199505

17881HOSE, AIR CLEANER, NO.1

main17881-54391i3L,5L..LH8#,LY15#199505

main17881-58140i3B..BU68199505

main17881-75090i3RZFP..RZU68199610

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10690i3RZFP..RZU68199610

main96111-10830i3L,5L..LH8#,LY15#199505

ENGINE SIDE,ID=83

main96111-10850i3L,5L..LH8#,LY15#199505

PIPE SIDE,ID=85

17885PIPE, AIR CLEANER

main17885-58250i3B..BU68199505

main53297-90D00i3L,5L..LH8#,LY15#199505

53285EGUARD, COOL AIR

main53285-25010iBU68199505

main53285-26010iLH8#,LY15#199505

9011908337

main90119-08337

9046707132

main90467-07132

9048012010

main90480-12010

9056008038

main90560-08038

9165160820

main91651-60820

9611110750

main96111-10750

9611110800

main96111-10800

21 parts on this diagram · 3 diagrams in section
