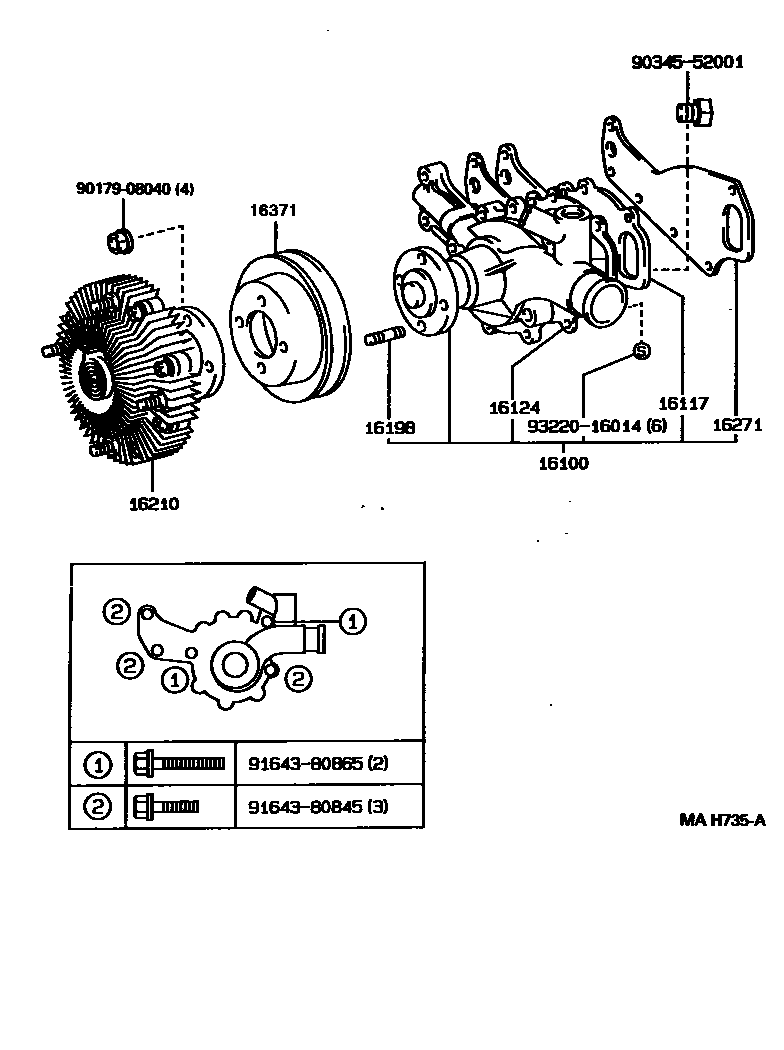

WATER PUMP

0001 1 0002 1 0004 1

16100PUMP ASSY, ENGINE WATER

main16100-59155i3L..LH81,LY151¥11,200199505-199701

sub16100-59255¥11,200

main16100-59166i3B..BU68¥11,200199505

main16100-59255i3L,5L..LH8#,LY15#¥11,200199701-200008

sub16100-59256¥11,200

main16100-59257i5L..LH82,LY152¥8,800200008

main16100-79255i3RZFP..RZU68¥15,700199610-199908

sub16100-79445¥10,700

16117PLATE, WATER PUMP

main16117-58010i3B..BU68¥1,010199505

16124GASKET, WATER PUMP COVER

main16124-58010i3B..BU68¥650199505

main16124-75030i3RZFP..RZU68¥550199610-199908

16198BOLT, STUD(FOR WATER PUMP PULLEY SEAT)

main16198-41170i3B..BU68¥230199505

main92122-60818i3RZFP..RZU68¥160199610-199908

16210COUPLING ASSY, FLUID

main16210-54130i3L..LH81..ATM¥38,200199505-199610

main16210-54150i3L,5L..LH8#..ATM¥38,200199610

main16210-54200i3L..LH81,LY151..MTM¥36,200199505-199905

main16210-54220i5L..LH82,LY152..MTM¥23,700199905

main16210-58030i3B..BU68¥19,900199505

main16210-75060i3RZFP..RZU68¥37,800199610-199908

16271GASKET, WATER PUMP

main16271-54020i3L,5L..LH8#,LY15#¥500199505-200008

sub16271-54030¥300

main16271-54030i5L..LH82,LY152¥300200008

main16271-56031i3B..BU68¥930199505-199905

sub16271-58010¥990

main16271-58010i3B..BU68¥990199905

16371PULLEY, FAN

main16371-54030i3L,5L..LH8#,LY15#¥2,950199505

main16371-58070i3B..BU68¥2,960199505

main16371-75030i3RZFP..RZU68¥5,700199610-199908

9017908040

main90179-08040¥100

9034552001

main90345-52001¥230

9164380845

main91643-80845¥110

9164380865

main91643-80865¥110

9322016014

main93220-16014¥80

12 parts on this diagram · 3 diagrams in section
