CRANKSHAFT & PISTON

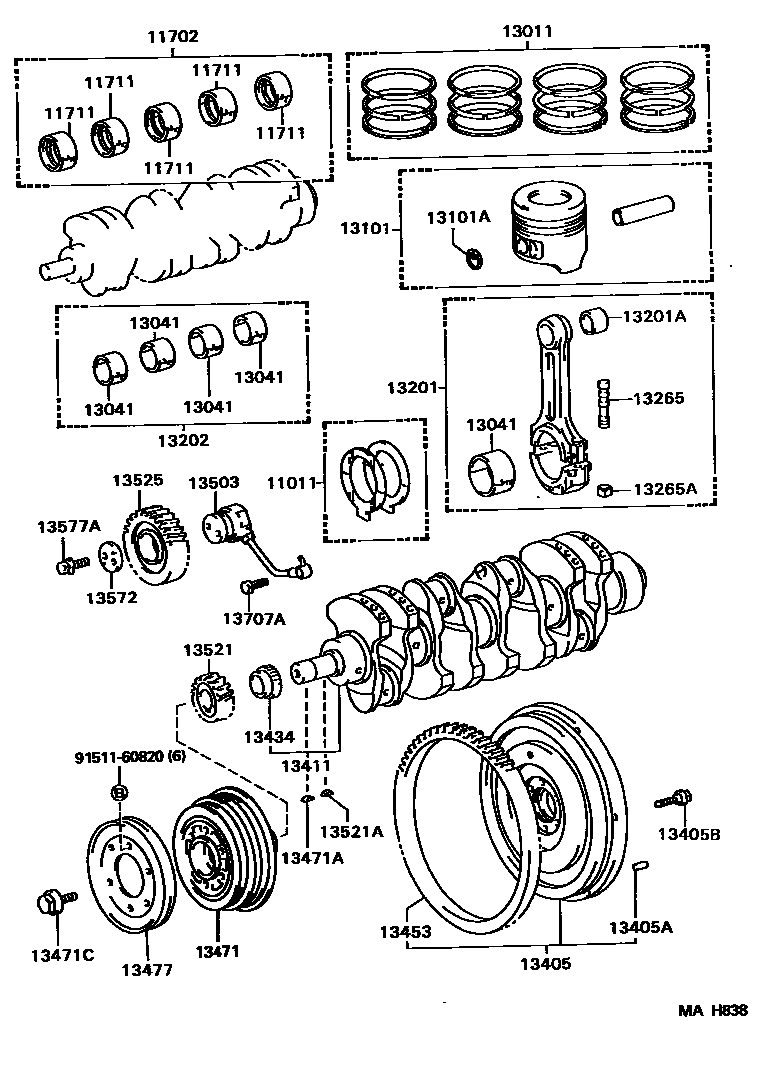

Parts diagram
11011WASHER SET, CRANKSHAFT THRUST
main11011-54020i199505
main11011-56020i199505
sub11011-58020
main11011-75010i199610
main11012-54020i199505
main11012-56020i199505
sub11012-58020
main11013-54020i199505
main11013-56020i199505
sub11013-58020
11702BEARING SET, CRANKSHAFT
main11704-54061i199505
sub11704-54080
main11704-56030i199505-199712
sub11704-56031
main11704-56031i199712-199905
sub11704-56032
main11704-56032i199905
sub11704-58010
main11704-75020i199610-199904
sub11704-75021
main11704-75021i199904
sub11704-75022
main11705-54061i199505
sub11705-54080
main11705-56030i199505-199712
sub11705-56031
main11705-56031i199712-199905
sub11705-56032
main11705-56032i199905
sub11705-58010
main11707-56030i199505-199712
sub11707-56031
main11707-56031i199712-199905
sub11707-56032
main11707-56032i199905
sub11707-58010
11711BEARING, CRANKSHAFT
main11071-75020-01i199610-199904
sub11071-75021
main11071-75020-02i199610-199904
sub11071-75021
main11071-75020-03i199610-199904
sub11071-75021
main11071-75021-01i199904
sub11071-75022
main11071-75021-02i199904
sub11071-75022
main11071-75021-03i199904
sub11071-75022
main11701-54061-01i199505
MARK 1
sub11701-54080
main11701-54061-02i199505
MARK 2
sub11701-54080
main11701-54061-03i199505
MARK 3
sub11701-54080
main11701-56020-01i199505-199712
MARK 1
sub11701-56021
main11701-56020-02i199505-199712
MARK 2
sub11701-56021
main11701-56021-01i199712-199905
MARK 1
sub11701-56022
main11701-56021-02i199712-199905
MARK 2
sub11701-56022
main11701-56022-01i199905-199908
MARK 1
sub11701-58010
main11701-56022-02i199905-199908
MARK 2
sub11701-58010
main11701-75020-01i199610-199904
sub11701-75021
main11701-75020-02i199610-199904
sub11701-75021
main11701-75020-03i199610-199904
sub11701-75021
main11701-75021-01i199904
sub11701-75022
main11701-75021-02i199904
sub11701-75022
main11701-75021-03i199904
sub11701-75022
13011RING SET, PISTON
main13011-54120i199505-199905
main13011-54130i199905
main13011-58050i199505-199905
sub13011-58051
main13011-58051i199905
main13011-75040i199610-199804
main13011-75041i199804
main13013-54120i199505-199905
main13013-54130i199905
main13013-58050i199505-199905
sub13013-58051
main13013-58051i199905
main13013-75040i199610-199804
main13013-75041i199804
main13014-58050i199505-199905
sub13014-58051
main13014-58051i199905
main13015-58050i199505-199905
sub13015-58051
main13015-58051i199905
13041BEARING, CONNECTING ROD
main13041-54041-01i199505
MARK 1
sub13041-54042
main13041-54041-02i199505
MARK 2
sub13041-54042
main13041-54041-03i199505
MARK 3
sub13041-54042
main13041-58020-01i199505-199712
MARK 1
sub13041-58031
main13041-58020-02i199505-199712
MARK 2
sub13041-58031
main13041-58031-01i199712-199812
MARK 1
sub13041-58032
main13041-58031-02i199712-199812
MARK 2
sub13041-58032
main13041-58032-01i199812
MARK 1
sub13041-58050
main13041-58032-02i199812
MARK 2
sub13041-58050
main13041-75020-04i199610-199701
MARK 4
sub13041-75021
main13041-75020-05i199610-199701
MARK 5
sub13041-75021
main13041-75020-06i199610-199701
MARK 6
sub13041-75021
main13041-75021-04i199701
MARK 4
sub13041-75022
main13041-75021-05i199701
MARK 5
sub13041-75022
main13041-75021-06i199701
MARK 6
sub13041-75022
13101PISTON SUB-ASSY, W/PIN
main13101-54101-01i199505-199905
main13101-54101-02i199505-199905
main13101-54101-03i199505-199905
main13101-54120-01i199905
main13101-54120-02i199905
main13101-54120-03i199905
main13101-58050-01i199505
main13101-58050-02i199505
main13101-58050-03i199505
main13101-75040i199610-199804
main13101-75041i199804
main13103-54101i199505-199905
main13103-54120i199905
main13103-58050i199505
main13103-75040i199610-199804
main13103-75041i199804
main13104-58050i199505
main13105-58050i199505
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90521-28003i199610
main90521-31001i199505
main90521-34002i199505
13201ROD SUB-ASSY, CONNECTING
main13201-59105i199505-199803
sub13201-59106
main13201-59106i199803
sub13201-59216
main13201-59146i199505
sub13201-59266
main13201-79205i199610
sub13201-79466
13201ABUSH(FOR CONNECTING ROD SMALL END)
main90999-73115i199505
main90999-73124i199505
main90999-73129i199610
13202BEARING SET, CONNECTING ROD
main13204-54041i199505
sub13204-54042
main13204-58020i199505-199712
sub13204-58031
main13204-58031i199712-199812
sub13204-58032
main13204-58032i199812
sub13204-58050
main13204-75020i199610-199701
sub13204-75021
main13204-75021i199701
sub13204-75022
main13205-54041i199505-199905
sub13205-54042
main13205-58020i199505-199712
sub13205-58031
main13205-58031i199712-199812
sub13205-58032
main13205-58032i199812
sub13205-58050
main13207-58020i199505-199712
sub13207-58031
main13207-58031i199712-199812
sub13207-58032
main13207-58032i199812
sub13207-58050
13265BOLT, CONNECTING ROD
main13265-54020i199505-199803
sub13265-54021
main13265-54021i199803
main13265-58020i199505
main13265-75030i199610
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
main13266-58010i199505
main90179-09009i199610
main90179-10123i199505
13405FLYWHEEL SUB-ASSY
main13405-54080i199505
main13405-56040i199505
sub13405-56041
main13405-75040i199610
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08054i199505
main90250-10192i199505
13405BBOLT, FLYWHEEL SETTING
main90105-12109i199505
main90910-02116i199610
main90913-01015i199505
13411CRANKSHAFT
main13401-54060i199505-199608
sub13401-54061
main13401-54061i199608
sub13401-54100
main13401-58060i199505-199908
sub13401-58061
sub13041-58032
main13411-75020i199610
sub13411-75901
13434SPLINE, OIL PUMP DRIVE
main13519-56010i199505-199903
main13519-56011i199903
13453GEAR, FLYWHEEL RING
main13453-20010i199610
main13453-54010i199505
main13453-56020i199505
sub13453-56021
13471PULLEY, CRANKSHAFT
main13408-54080i199505-199608
sub13408-54090
main13408-54090i199608
main13408-75030i199610
main13470-58050i199505-199903
sub13470-58051
main13470-58051i199903
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main90280-05005i199610
main95161-30416i199505
main95161-30622i199505
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90105-16041i199610
main90901-19028i199505
main90901-19032i199505
13477PULLEY, CRANKSHAFT, NO.2
main88358-37010i199505
main88451-25040i199610
main88451-35030i199505
13503SHAFT SUB-ASSY, IDLE GEAR
main13504-58010i199505
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-56030i199505
main13521-75010i199610
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
main90280-05005i199610
main95161-30519i199505
main95161-30622i199505
13525GEAR, IDLE, NO.1
main13508-56010i199505
13572PLATE, IDLE GEAR THRUST
main13572-56020i199505
13577ABOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK)
main90105-10194i199505
13707AUNION(FOR OIL PIPE, NO.1)
main90401-10026i199505
9151160820
main91511-60820
