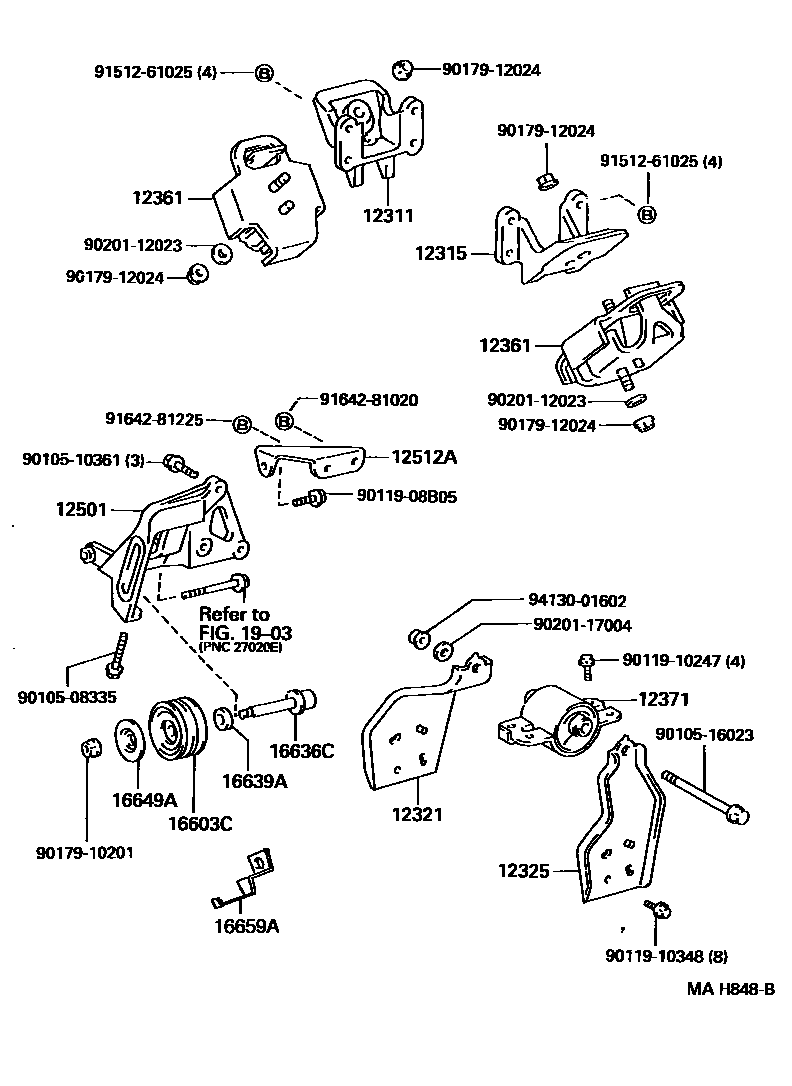

MOUNTING

0001 1 0002 1 0004 1 0006 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-54091i3L,5L..LH8#199505

main12311-54170i3L,5L..LY15#199505

main12311-56040i3B..BU68199505

main12311-75040i3RZFP..RZU68199610

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12311-56040i3B..BU68199505

main12315-75041i3RZFP..RZU68199610

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-56080i3B..BU68199505

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-56070i3B..BU68199505

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-54171i3L,5L..LY15#199505

main12361-54200i3L,5L..LH8#199505

main12361-56071i3B..BU68199505

main12361-75030i3RZFP..RZU68199610

sub12361-75031

sub90179-12127

main12362-56011i3B..BU68199505

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-56041i3B..BU68199505

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-58030i3B..BU68199505

12512ABRACKET, ALTERNATOR, NO.2

main12512-58010i3B..BU68..D199505

main12512-58020i3B..BU68..N199505

16603CPULLEY SUB-ASSY, IDLER

main16603-58010i3B..BU68199505

16636CSHAFT, IDLER PULLEY, NO.1

main16636-58010i3B..BU68199505-199905

sub16636-58011

main16636-58020i3B..BU68199905

sub16636-58021

16639ASPACER, IDLER PULLEY

main16639-58010i3B..BU68199505

16649APLATE, IDLER PULLEY COVER

main16649-58010i3B..BU68199505

16659APLATE, IDLER PULLEY COVER, NO.2

main16659-58010i3B..BU68199505-199607

sub90201-12074

main90201-12074i3B..BU68199607-199905

1903

9010508335

main90105-08335

9010510361

main90105-10361

9010516023

main90105-16023

9011908B05

main90119-08B05

9011910247

main90119-10247

9011910348

main90119-10348

9017910201

main90179-10201

9017912024

main90179-12024

9020112023

main90201-12023

9020117004

main90201-17004

9151261025

main91512-61025

9164281020

main91642-81020

9164281225

main91642-81225

9413001602

main94130-01602

28 parts on this diagram · 4 diagrams in section
