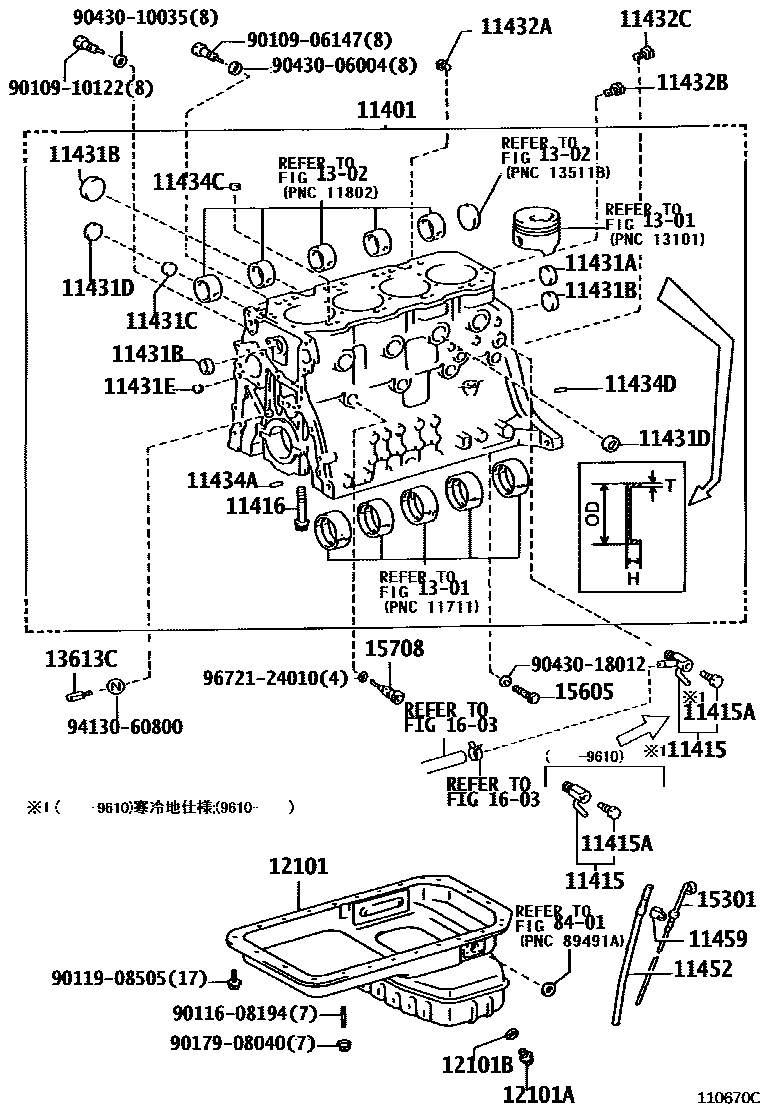

CYLINDER BLOCK

0001 1 0002 1 0004 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59417i3B..BU68199505

main11401-59505i3L..LH81,LY151199505-199905

main11401-59645i5L..LH82,LY152199905

sub11401-59817

main11401-79685i3RZFP..RZU68199610-199904

sub11401-79686

main11401-79686i3RZFP..RZU68199904

sub11401-79687

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90345-53030i3L..LH81,LY151199505-199803

main90910-09078i3B..BU68199610

main90910-09078i3B..BU68199505-199610

main90910-09091i3RZFP..RZU68199610-199905

main90910-09110i3L,5L..LH8#,LY15#199803

main90910-09118i3RZFP..RZU68199905

main96431-53828i3B..BU68199505-199610

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i3RZFP..RZU68199610

main96432-23814i3B..BU68199505-199904

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02061i3L,5L..LH8#,LY15#199505

main90910-02082i3B..BU68199505

main90910-02083i3B..BU68199505

main90910-02092i3RZFP..RZU68199610

sub90910-02179

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-14500i3B..BU68199505-199905

main96411-42500i3L,5L..LH8#,LY15#199505

main96411-63000i3RZFP..RZU68199610

main96411-64500i3B..BU68199905

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-50003i3B..BU68199505

main96411-43500i3L,5L..LH8#,LY15#199505

main96411-45000i3B..BU68199505-199905

main96411-63500i3RZFP..RZU68199610

main96411-65000i3B..BU68199505-199905

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-45000i3L,5L..LH8#,LY15#199505

main96411-63000i3B..BU68199505

main96411-64000i3RZFP..RZU68199610

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-63500i3B..BU68199505

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-14006i3B..BU68199505

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51006i3L,5L..LH8#,LY15#199505

main90345-51007i3B..BU68199505

main90345-53009i3RZFP..RZU68199610

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53004i3B..BU68199505

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-52001i3B..BU68199505

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120i3B..BU68199505

main90253-11021i3L,5L..LH8#,LY15#199505

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15005i3L,5L..LH8#,LY15#199505

main90253-15008i3B..BU68199505

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i3RZFP..RZU68199610

main90250-08120i3B..BU68199505

main90253-11021i3L,5L..LH8#,LY15#199505

11452GUIDE, OIL LEVEL GAGE

main11409-75020i3RZFP..RZU68199610

main11452-54090i3L,5L..LH8#,LY15#199505

main11452-56050i3B..BU68199505

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-56040i3B..BU68199505

main90929-01203i3L,5L..LH8#,LY15#199505

12101PAN SUB-ASSY, OIL

main12101-54212i3L..LY151199505-199708

main12101-54250i3L..LH81199505-199708

sub12101-54251

main12101-54251i3L..LH81,LY151199708-199805

sub12101-54252

main12101-54252i3L,5L..LH8#,LY15#199805

main12101-58102i3B..BU68199505-199701

sub12101-58170

main12101-58170i3B..BU68199701

main12101-75060i3RZFP..RZU68199610

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i3L,5L..LH8#,LY15#199505

main90341-12026i3B..BU68199505

sub90341-12012

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i3L,5L..LH8#,LY15#199505

1301

1302

13613CNOZZLE, OIL

main90915-01015i3B..BU68199505

15301GAGE SUB-ASSY, OIL LEVEL

main15301-54080i3L..LH81,LY151199505-199905

main15301-54140i5L..LH82,LY152199905

main15301-58011i3B..BU68199505

main15301-75020i3RZFP..RZU68199610

15605VALVE SUB-ASSY, OIL CHECK

main15605-54010i3L,5L..LH8#,LY15#199505

main15605-56010i3B..BU68199505

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-54060i3L,5L..LH8#,LY15#199505

main15708-56010i3B..BU68199505

1603

8401

9010906147

main90109-06147

9010910122

main90109-10122

9011608194

main90116-08194

9011908505

main90119-08505

9017908040

main90179-08040

9043006004

main90430-06004

9043010035

main90430-10035

9043018012

main90430-18012

9413060800

main94130-60800

9672124010

main96721-24010

38 parts on this diagram · 3 diagrams in section
