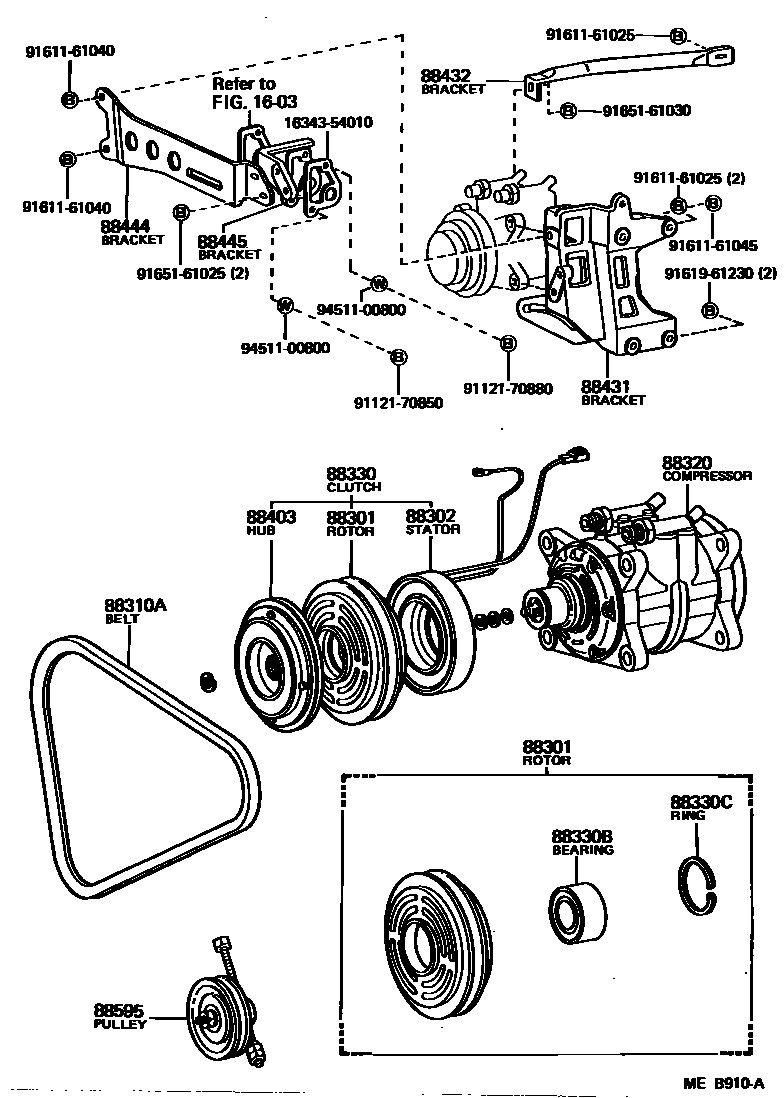

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1603

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-14010iLH24198205-198211

main88412-22030iLH24198211-198507

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-14050iLH24198205-198507

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-01330iLH24198306-198507

main99322-01360iLH24198205-198306

88320COMPRESSOR ASSY, COOLER

main88320-26110iLH24198205-198211

main88320-26190iLH24198211-198507

88330CLUTCH ASSY, MAGNET

main88410-14090iLH24198205-198211

main88410-22080iLH24198211-198507

sub88410-60140

88330BBEARING, MAGNET CLUTCH

main90099-10133iLH24198205-198507

88330CRING, SNAP (FOR MAGNET CLUTCH)

main90099-07114iLH24198205-198507

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-14030iLH24198205-198507

sub88403-12030

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-26140iLH24198205-198211

main88431-26180iLH24198211-198402

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88434-26020iLH24198205-198211

88444BRACKET, IDLE PULLEY

main88444-26040iLH24198205-198211

main88444-26080iLH24198211-198507

88445BRACKET, IDLE PULLEY

main88444-26050iLH24198205-198211

main88444-26090iLH24198211-198402

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-26030iLH24198205-198507

1634354010GASKET, WATER OUTLET HOUSING

main16343-54010

9112170850

main91121-70850

9112170880

main91121-70880

9161161025

main91611-61025

9161161040

main91611-61040

9161161045

main91611-61045

9161961230

main91619-61230

9165161025

main91651-61025

9165161030

main91651-61030

9451100800

main94511-00800

24 parts on this diagram · 3 diagrams in section
