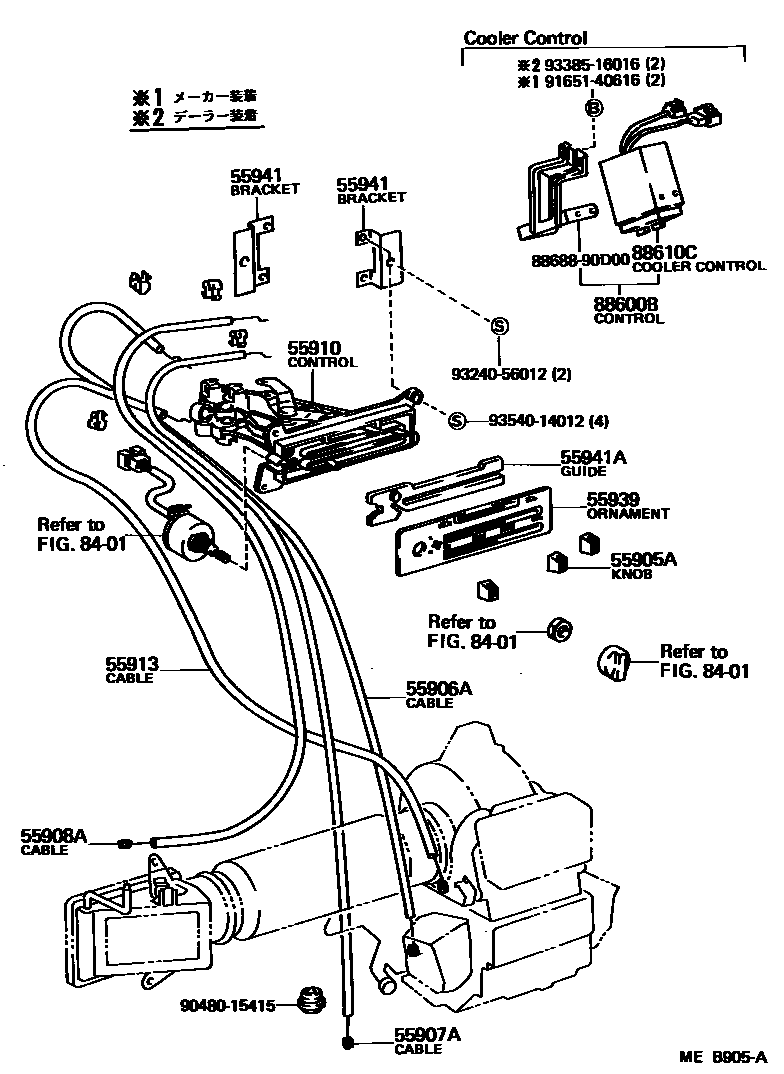

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1

55905AKNOB, HEATER CONTROL

main55905-12070×3iLH24198205-198507

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-90D00iLH24198205-198507

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-90D00iLH24198205-198507

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-90D00iLH24198205-198507

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-89113iLH24198205-198507

55913CABLE SUB-ASSY, BOOST VENT CONTROL

main55909-90D00iLH24198205-198507

55939ORNAMENT, HEATER CONTROL

main55519-89103iLH24198205-198507

55941BRACKET, HEATER CONTROL

main55921-90D00iLH24198205-198507

RH

main55922-90D00iLH24198205-198507

LH

55941AGUIDE, HEATER CONTROL

main55941-89103iLH24198205-198507

8401

88600BPANEL ASSY, CONTROL

main88600-90D00iLH24198205-198507

88610CSWITCH ASSY, COOLER CONTROL

main88610-95A02iLH24198205-198507

8868890D00BRACKET, COOLER DIAPHRAGM

main88688-90D00

9048015415

main90480-15415

9165140616

main91651-40616

9324056012

main93240-56012

9338516016

main93385-16016

9354014012

main93540-14012

18 parts on this diagram · 2 diagrams in section
