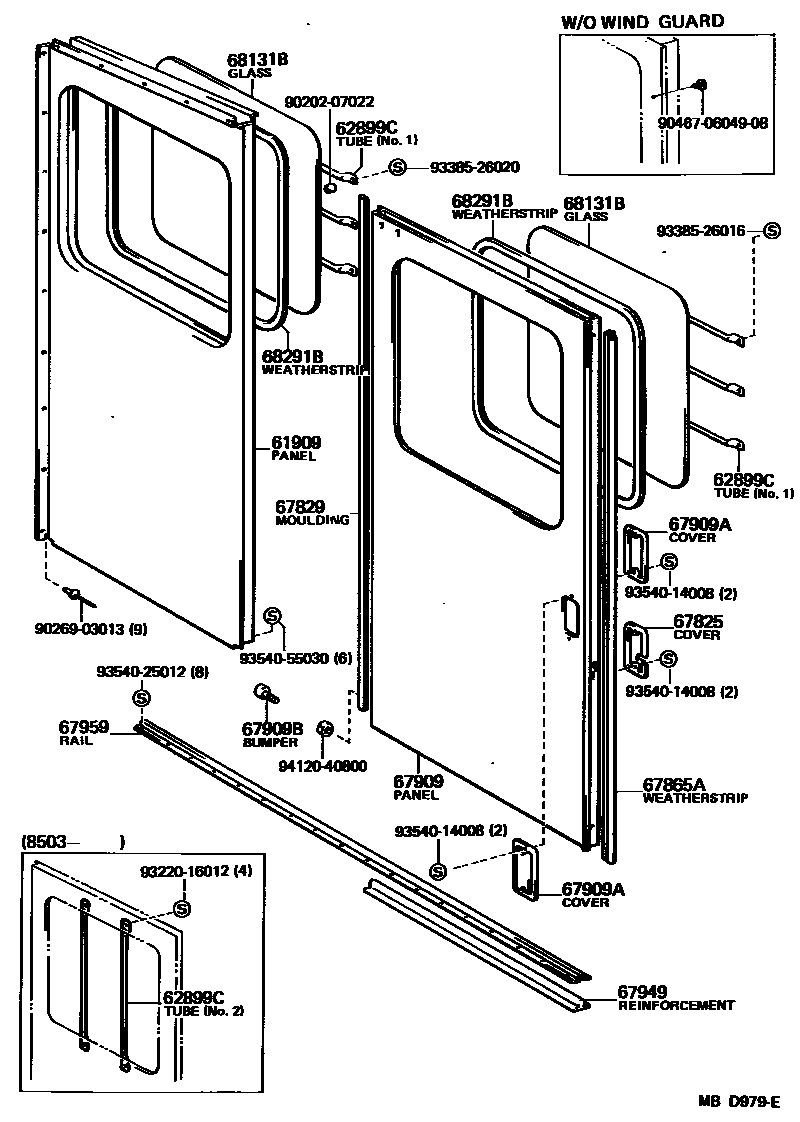

SEPARATION DOOR PANEL & GLASS

61909PANEL SUB-ASSY, SEPARATION

main61909-90D00iLH24198205-198307

main61909-90D01iLH24198307-198503

sub74085-90D02

main74085-90D02iLH24198503-198507

main74085-90D03iLH24198503-198507

NO.2

62899CTUBE, SEPARATION

main62893-90D00iLH24198212-198507

NO.1

main62893-90D02iLH24198503-198507

NO.2,DOOR

main62893-90D03iLH24198503-198507

NO.2,PANEL

main62899-90D00iLH24198205-198212

NO.1

sub62893-90D00

67825COVER, SEPARATION DOOR SERVICE HOLE

main67825-90D00iLH24198205-198507

67829MOULDING, SEPARATION DOOR TRIM

main67829-90D00iLH24198205-198507

L=750

main67839-90D00iLH24198205-198507

L=1710

67865AWEATHERSTRIP, SEPARATION DOOR

main67865-90D00iLH24198210-198507

sub67865-90D02

67909PANEL SUB-ASSY, SEPARATION DOOR

main67909-90D00iLH24198205-198307

main67909-90D01iLH24198307-198507

main67909-90D04iLH24198503-198507

YAMATO SPEC

67909ACOVER, SEPARATION DOOR SERVICE HOLE, NO.1

main61791-90A00iLH24198205-198507

sub61791-90B01

67909BBUMPER, SEPARATION

main53382-20011iLH24198205-198507

sub53382-90A00

67949REINFORCEMENT, SEPARATION DOOR

main67949-90D00iLH24198405-198507

67959RAIL, SEPARATION DOOR

main67959-90D00iLH24198205-198309

sub67959-90D01

main67959-90D01iLH24198309-198507

68131BGLASS, SEPARATION

main68131-90D02iLH24198205-198507

sub68515-25010

68291BWEATHERSTRIP, SEPARATION

main68291-90D00iLH24198205-198507

9020207022

main90202-07022

9026903013

main90269-03013

904670604908

main90467-0604908

9322016012

main93220-16012

9338526016

main93385-26016

9338526020

main93385-26020

9354014008

main93540-14008

9354025012

main93540-25012

9354055030

main93540-55030

9412040800

main94120-40800

22 parts on this diagram · 1 diagram in section
