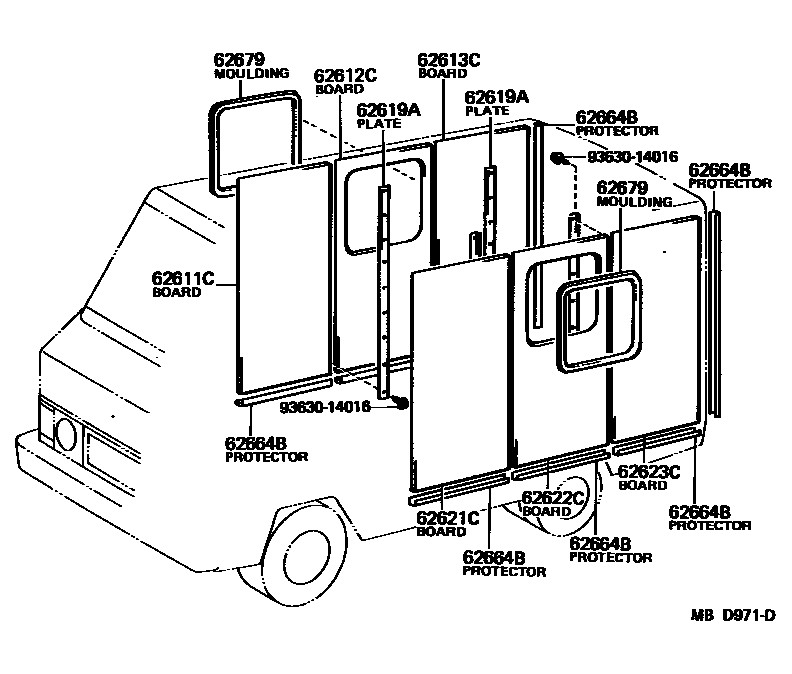

INSIDE TRIM BOARD
62611CBOARD, SIDE TRIM NO.1, RH
W/SEPARATION DOOR
W/ROPE HOOK
W/*SRD,ROPE HOOK
sub62611-90D26
PRINT
PRINT,W/*SRD
PRINT,W/RR WINDOW
PRINT,W/RR WINDOW,*SRD,SEPARAT
PRINT,W/RR DOOR
PRINT,W/RR DOOR,*SRD
PRINT,W/SEPARATER BAR
PRINT,W/RR DOOR,*SRD,*RH
62612CBOARD, SIDE TRIM NO.2, RH
W/RR WINDOW
W/SIDE WINDOW GUARD
W/ROPE HOOK
W/SIDE WINDOW GUARD,ROPE HOOK
W/ROPE HOOK
W/SIDE WINDOW GUARD,ROPE HOOK
sub62612-90D51
PRINT
PRINT,W/ROPE HOOK
PRINT,W/*SRD
PRINT,W/*SRD,*RH
PRINT,W/RR WINDOW
PRINT,W/*RH,RR WINDOW
PRINT,W/*SRD,RR WINDOW
PRINT,W/*RH,*SRD,RR WINDOW
62613CBOARD, SIDE TRIM NO.3, RH
PRINT
PRINT,W/*SRD
PRINT,W/RR DOOR
PRINT,W/RR DOOR,*RH
62619APLATE, SIDE TRIM SET
L=2270
L=2191
L=802
L=716
L=723
62622CBOARD, SIDE TRIM NO.2, LH
W/RR WINDOW
W/SIDE WINDOW GUARD
W/ROPE HOOK
W/SIDE WINDOW GUARD,ROPE HOOK
W/SEPARATOR
W/SEPARATOR & RR WINDOW
W/SEPARATOR,SIDE WINDOW GUARD
W/ROPE HOOK
W/SIDE WINDOW GUARD,ROPE HOOK
W/SEPARATOR,BAR,ROPE HOOK
W/SIDE WINDOW,HOOK,SEPARATOR
sub62622-90D52
PRINT
PRINT,W/ROPE HOOK
PRINT,W/RR WINDOW
PRINT,W/*RH,RR WINDOW
62623CBOARD, SIDE TRIM NO.3, LH
W/ROPE HOOK
PRINT
62664BPROTECTOR, SIDE TRIM, NO.1
62679MOULDING, SIDE TRIM
sub62679-90D02
9363014016
main93630-14016
10 parts on this diagram · 3 diagrams in section
