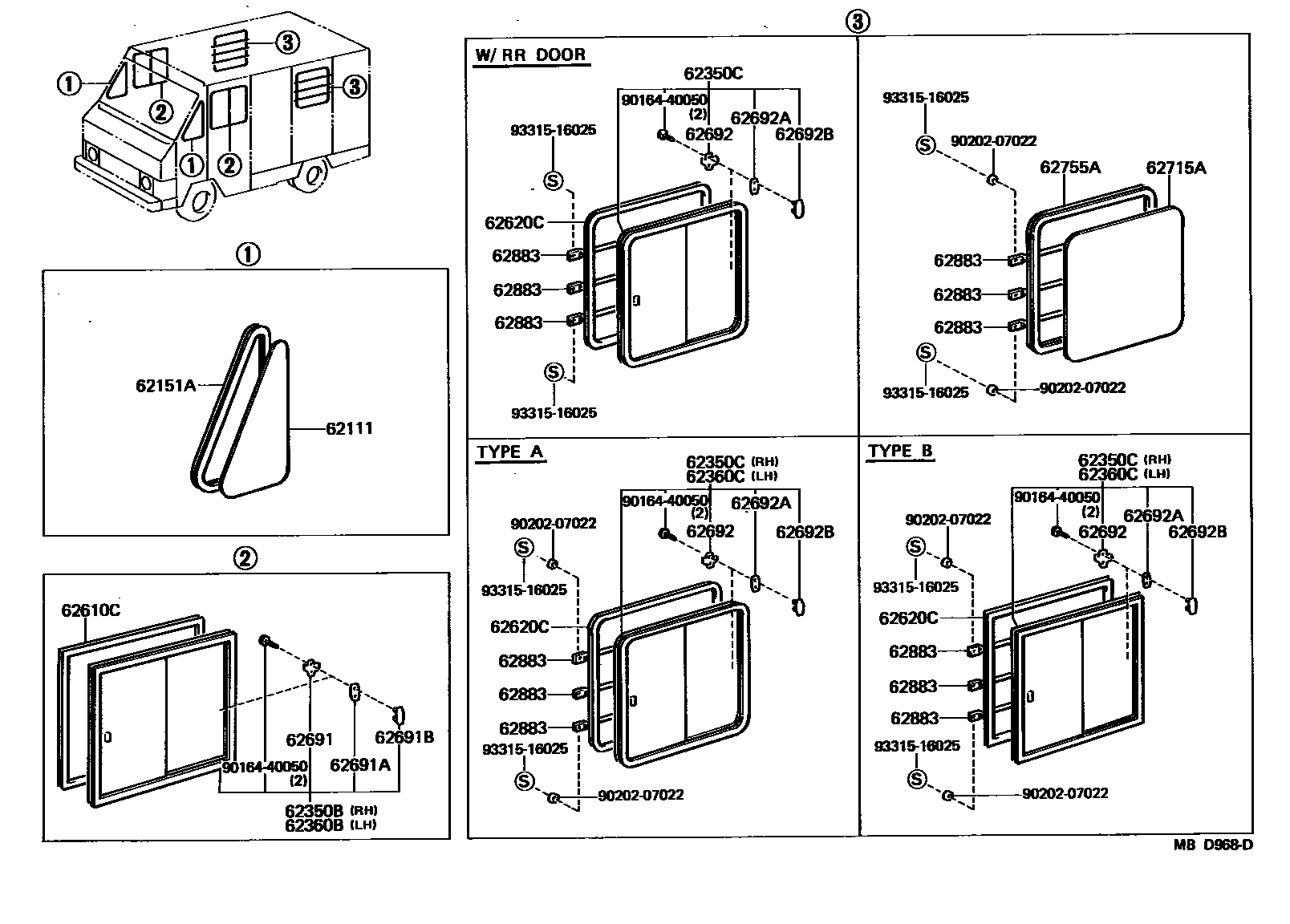

SIDE WINDOW
62111GLASS, FRONT SIDE WINDOW
62151AWEATHERSTRIP, FRONT SIDE WINDOW
62350BWINDOW ASSY, FRONT SLIDE DOOR, RH
62350CWINDOW ASSY, REAR SIDE WINDOW, RH
TYPE B
TYPE A
W/RR DOOR
62360BWINDOW ASSY, FRONT SLIDE DOOR, LH
62360CWINDOW ASSY, REAR SIDE WINDOW, LH
TYPE B
TYPE A
62610CCLIP, SIDE WINDOW OUTER SASH, NO.1 (FOR SLIDE TYPE)
sub62375-90D04
62620CCLIP, SIDE WINDOW OUTER SASH, NO.2 (FOR SLIDE TYPE)
sub62775-90A00
62691LOCK, SIDE WINDOW, NO.1 GLASS (FOR SLIDE TYPE)
62691APACKING, SIDE WINDOW LOCK, NO.1
62691BRETAINER, SIDE WINDOW LOCK, NO.1
sub62793-95704
62692LOCK, SIDE WINDOW, NO.2 GLASS (FOR SLIDE TYPE)
62692APACKING, SIDE WINDOW LOCK, NO.2
62692BRETAINER, SIDE WINDOW LOCK, NO.2
sub62793-95704
62715AGLASS, SIDE WINDOW, NO.2(FOR FIXED TYPE)
W/RR DOOR
62755AWEATHERSTRIP, SIDE WINDOW, NO.2(FOR FIXED TYPE)
W/RR DOOR
62883GUARD ASSY, SIDE WINDOW
W/RR DOOR
9016440050
main90164-40050
9020207022
main90202-07022
9331516025
main93315-16025
20 parts on this diagram · 1 diagram in section
